Product Description:

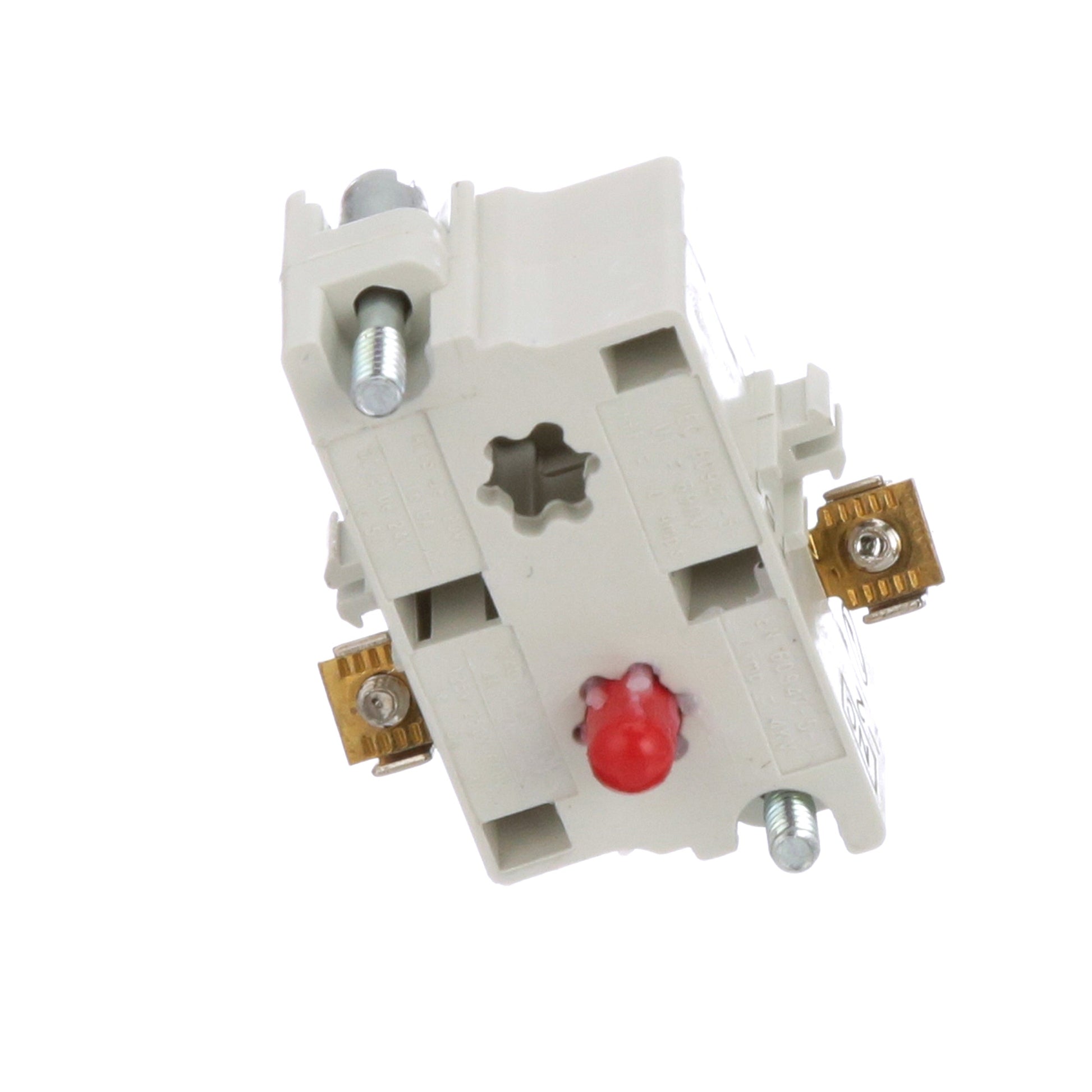

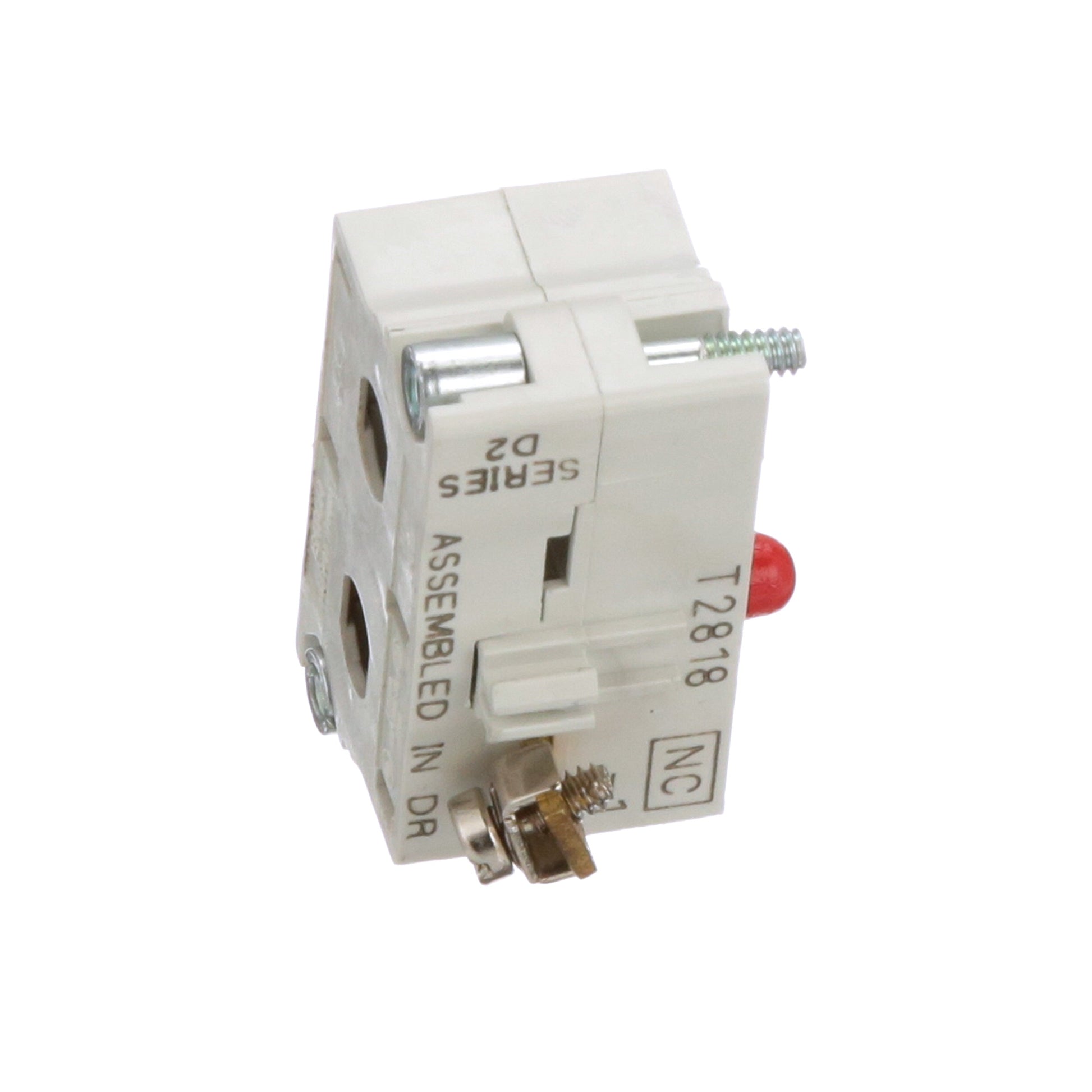

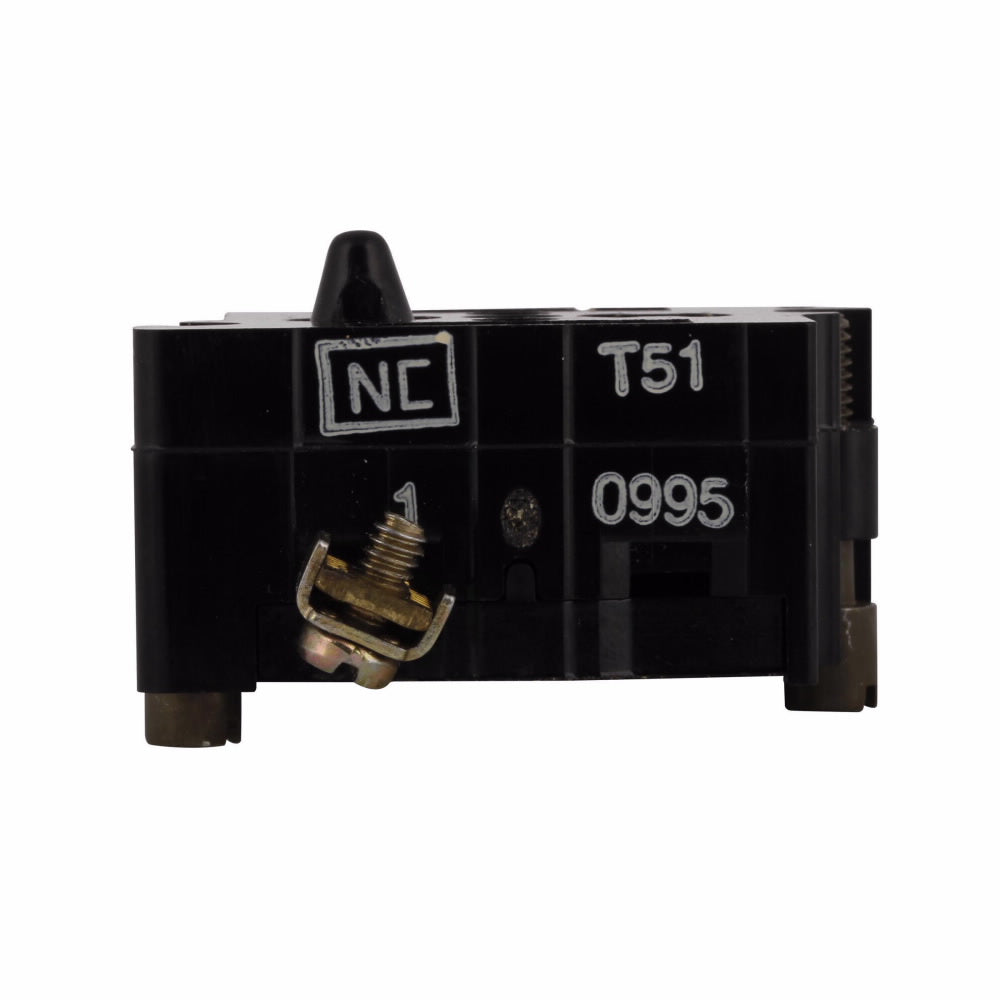

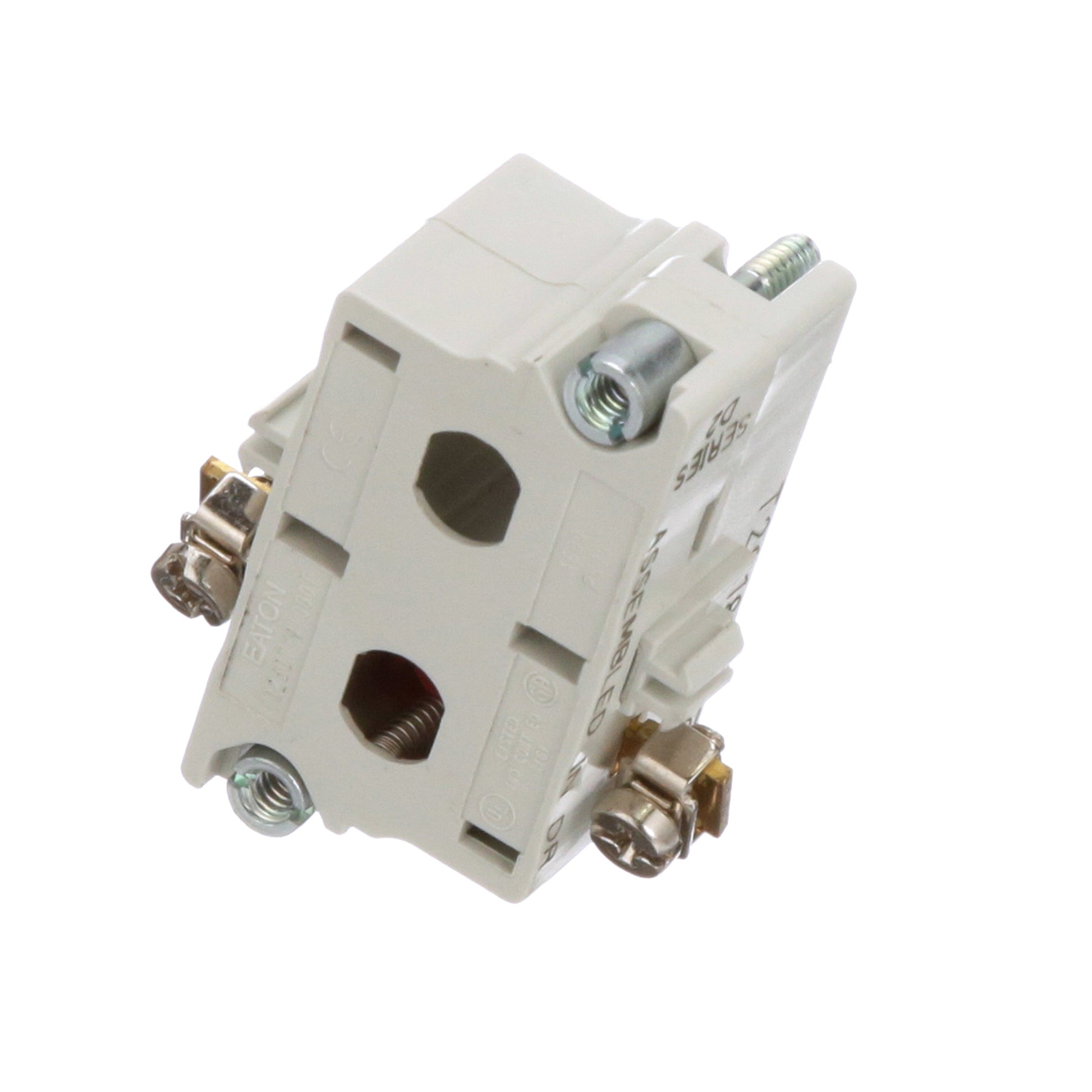

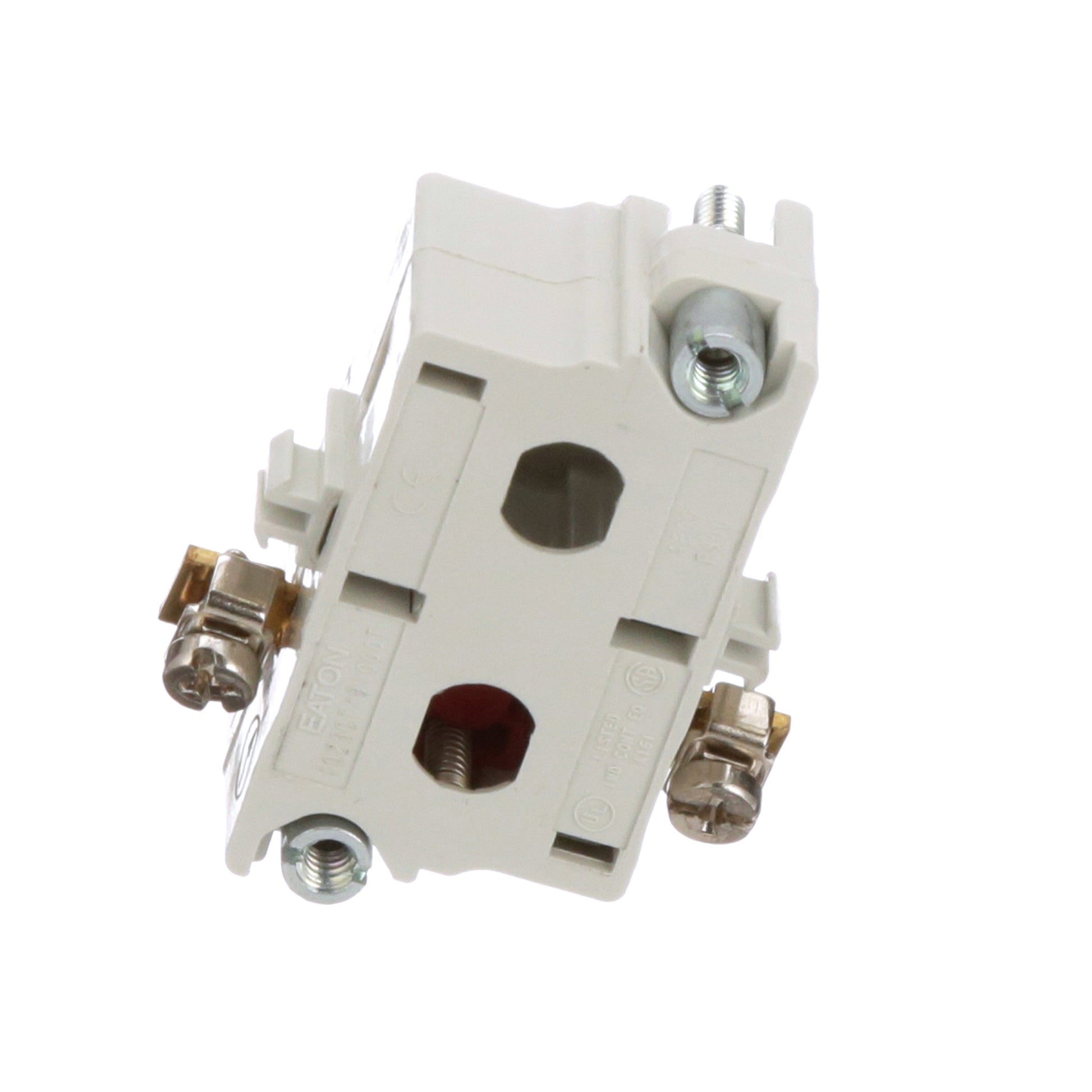

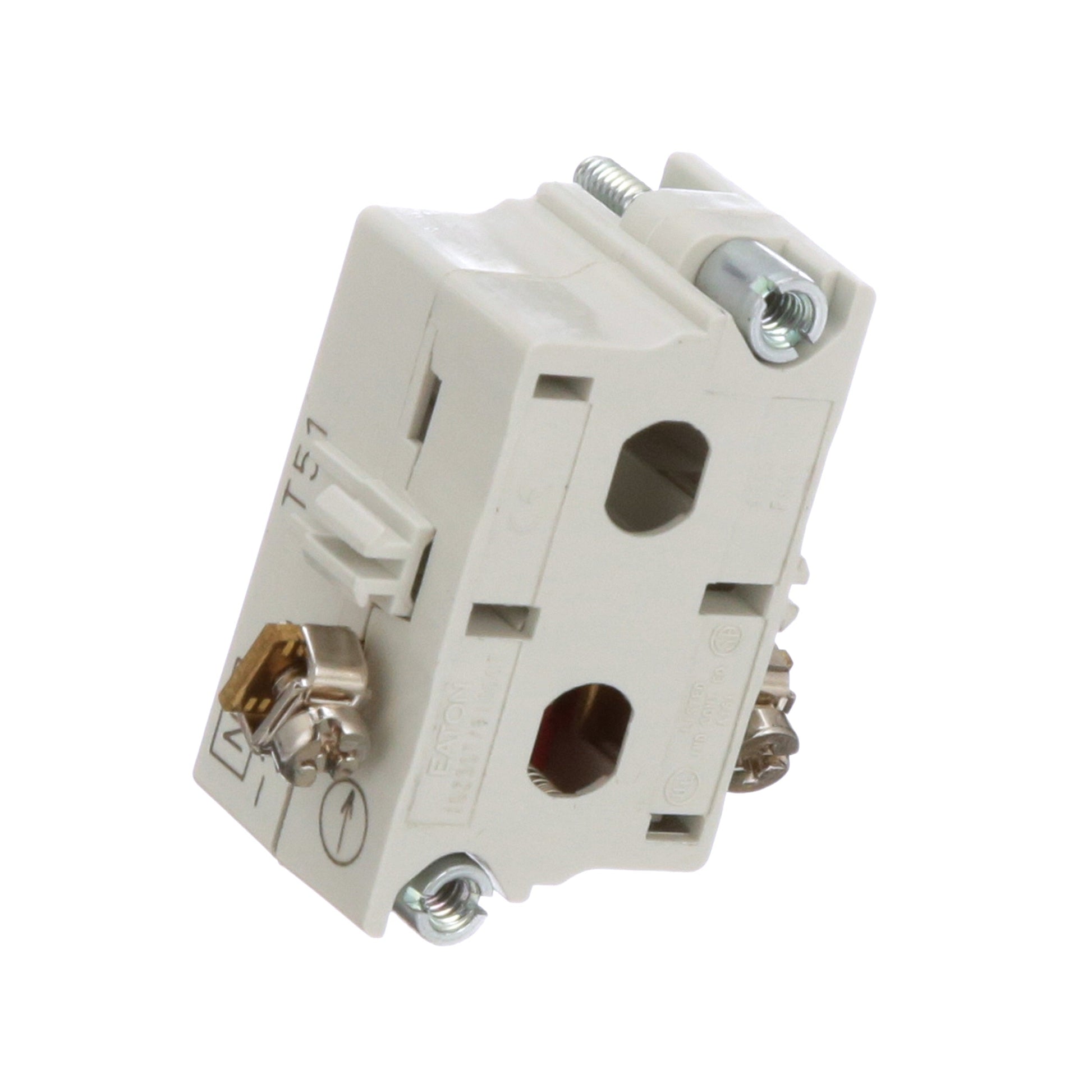

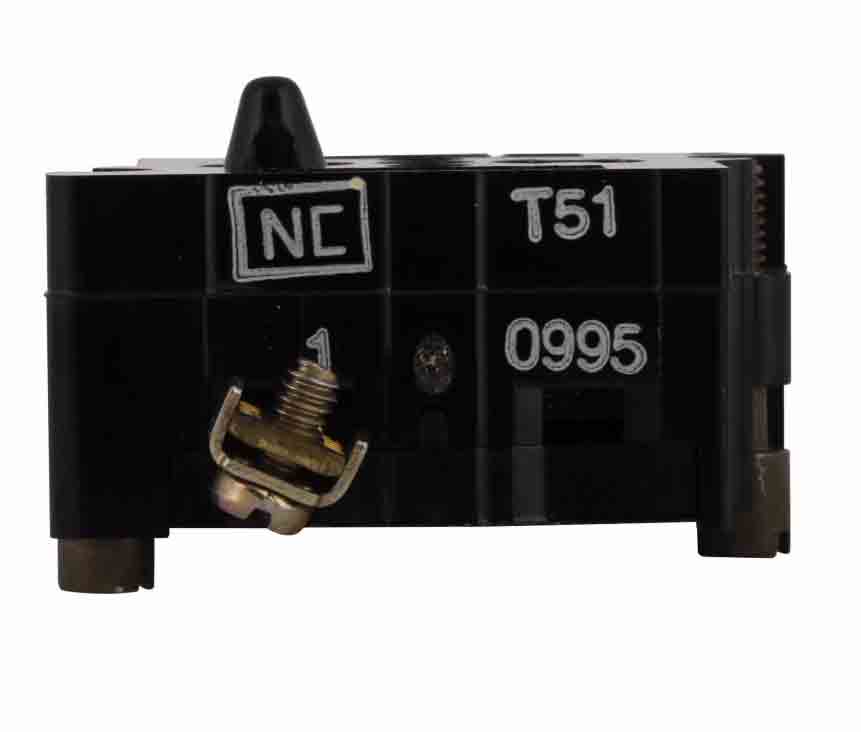

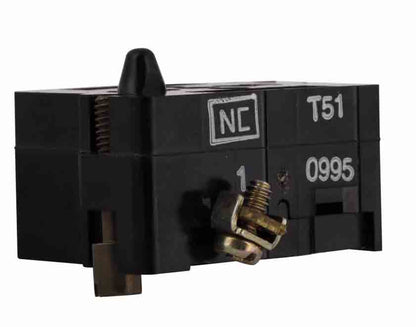

The Eaton 10250T51 is a 30.5 mm heavy-duty contact block for industrial pushbutton assemblies. It features a SPST-NC (Single Pole Single Throw - Normally Closed) configuration with silver contacts, rated at 10A at 600 VAC and 5A at 250 VDC. The momentary action block uses pressure-type terminals and is compatible with Eaton’s 10250T series pushbuttons and indicator lights. It is UL Listed and CSA Certified for reliable performance.
Key Features:
✔ Part Number: 10250T51
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Part And Accessory
✔ Family: 10250T Series
✔ Type: 10250T
✔ Voltage: 660VAC/VDC
✔ Amperage: 10A at 600 VAC, 5A at 250 VDC
✔ Certification: CE, CSA, UL Listed
✔ UPC: 782113203485
✔ GTIN: 00782113203485
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 1.9in, Height 2.2in, Width 1.3in
✔ Weight: 0.65 lb
