Siemens 14JUH32AC Motor Starter | 600V 3 phase 200A 3 pole 440V coil

14JUH32AA

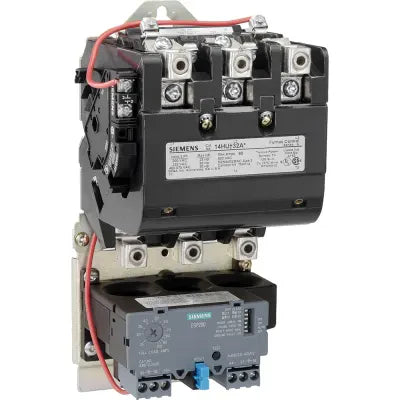

The Siemens 14JUH32AA is a robust, NEMA Size 4 motor starter engineered for reliable control of three-phase motors. Designed for full-voltage, non-reversing applications, it features a solid-state overload relay with an adjustable current range of 50–200A, ensuring precise motor protection and operational efficiency.

 Heater Packs must be purchased separately. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.

Specifications

• • Voltage & Current Ratings:

    • Maximum Voltage: 600 VAC

    • Operating Current: 135 A at 600 V

    • Overload Relay Amp Range: 50–200 A



  • Control Voltage:

    • Dual-rated coil: 110–120/220–240 VAC, 60 Hz



  • Motor Horsepower Ratings:

    • 40 HP @ 200/208 V

    • 50 HP @ 220/230 V

    • 100 HP @ 460/480 V

    • 100 HP @ 575/600 V



  • Overload Protection:

    • Solid-state overload relay with trip classes 5, 10, 20 (factory set), and 30

    • Features include phase failure detection, phase unbalance, ground fault detection, and test function

    • Reset options: Manual, automatic, and remote



  • Construction & Mounting:

    • Open-type (no enclosure)

    • Vertical mounting position

    • Dimensions: 11.06” H x 6.75” W x 5.75” D

    • Weight: Approximately 10 lbs



  • Auxiliary Contacts:

    • 1 Normally Open (NO) auxiliary contact



  • Certifications:

    • UL 508

    • CSA 22.2 No.14

    • NEMA ICS 2

Ideal for industrial settings requiring dependable motor control, such as:

• Pumps

• Fans

• Compressors

• Conveyors

• Material handling equipment

Product Data

• UPC : 783087817982
• GTIN : 00783087817982
• Country of Origin : Mexico
• Dimensions: 11.06” H x 6.75” W x 5.75” D
• Weight : 9 lb
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
