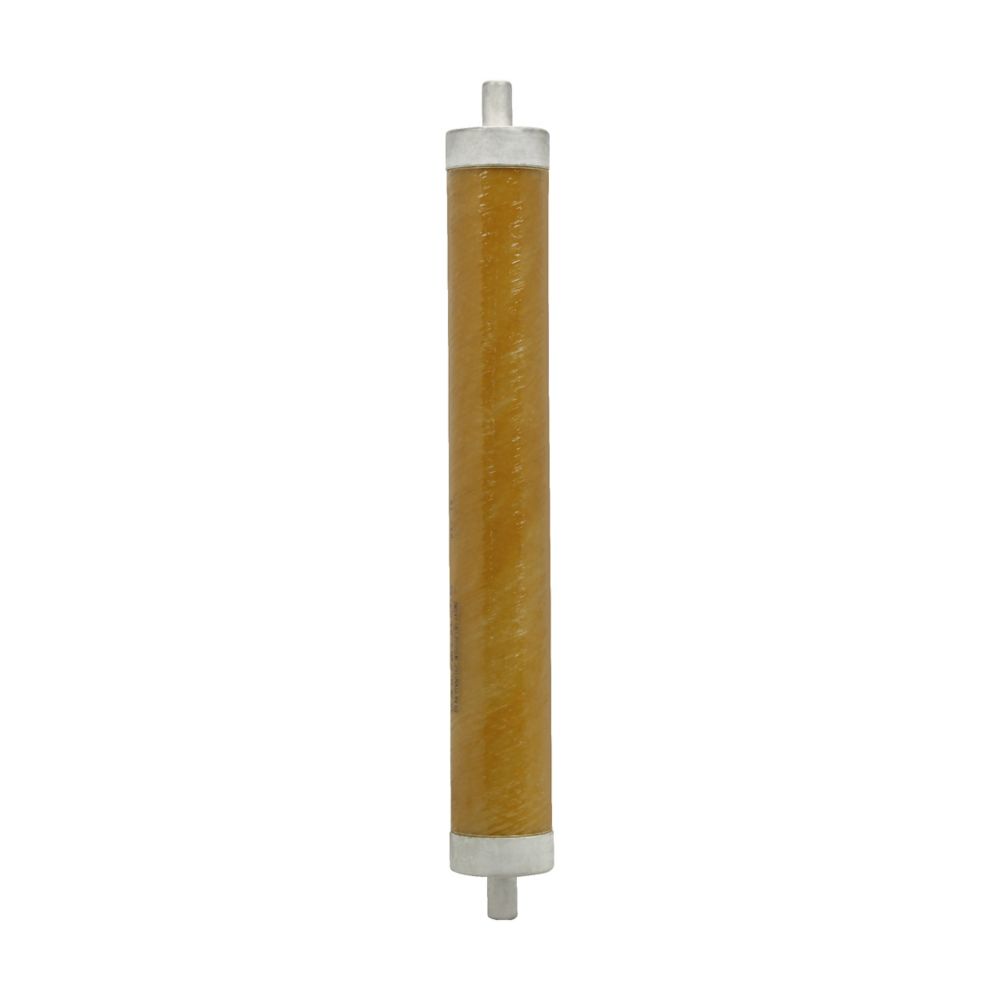

• Eaton 3565025M11M fuse for electrical panels, 23000V, 25A, NX ELX series, shown in the image with metallic contacts and plastic body.

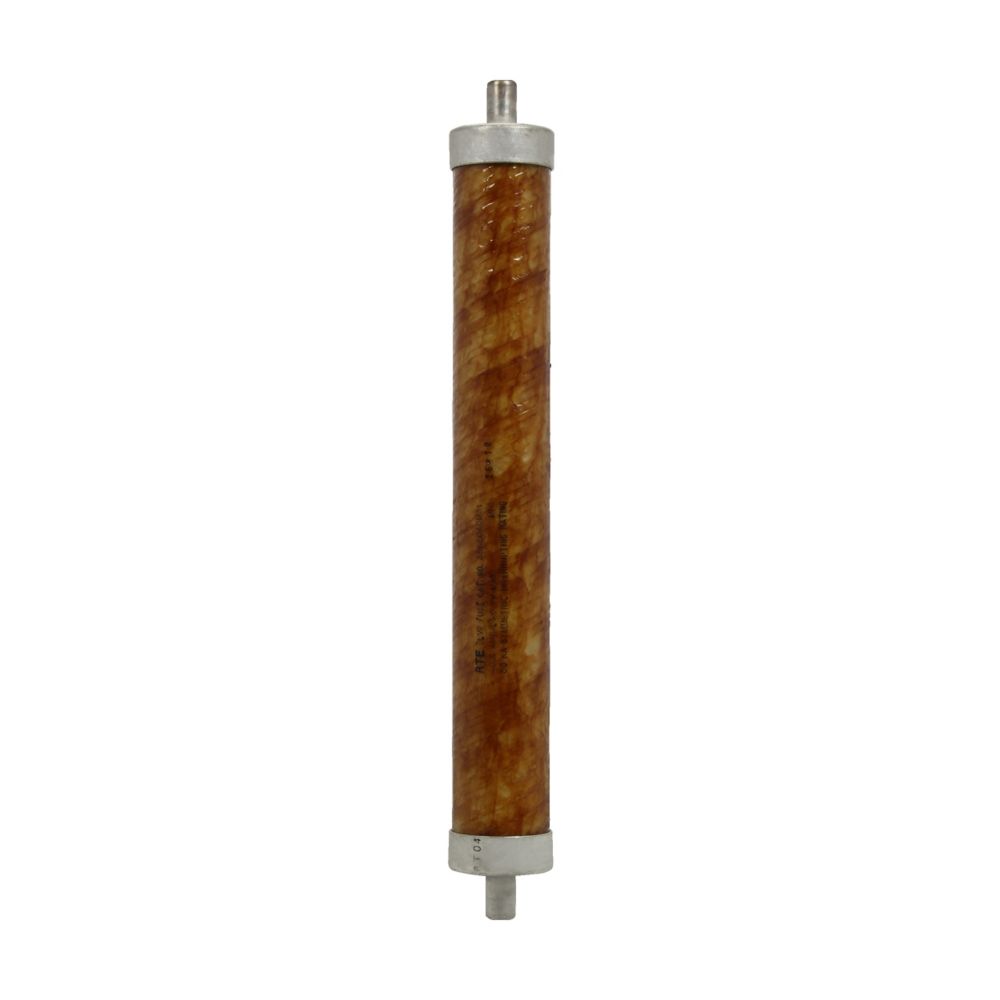

  • Eaton 3565025M11M fuse showing a 23000V 25A NX ELX fuse with metal contacts and clear labeling on the body

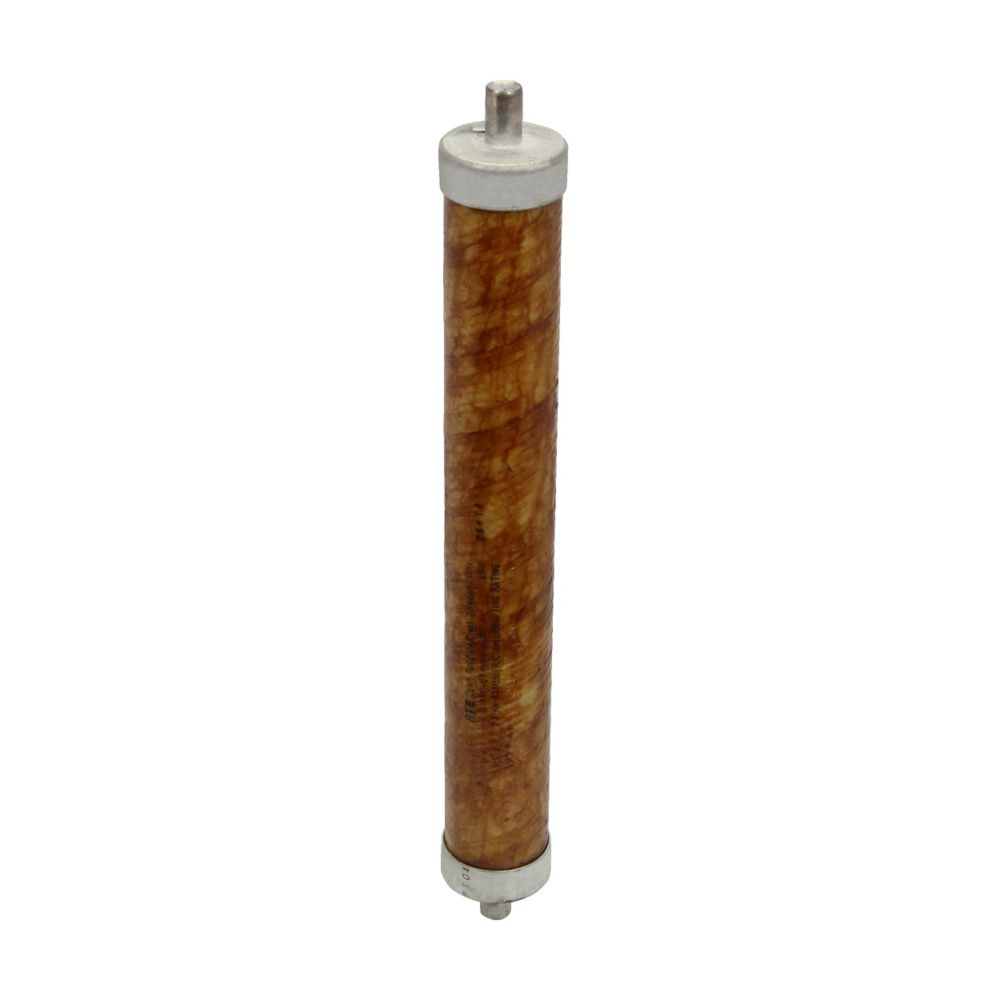

  • Eaton 3565025M11M 23,000V 25A NX ELX fuse, industrial fuse with metal casing and electrical connection terminals.

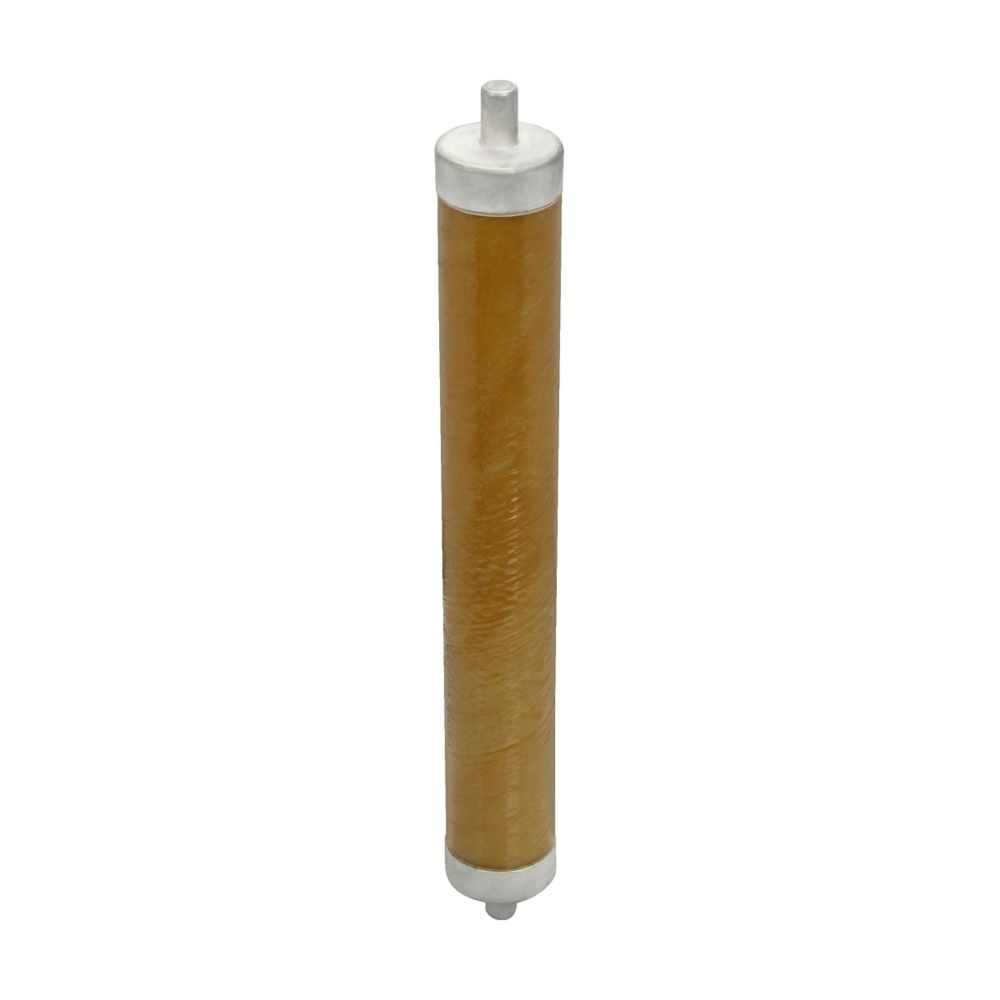

  • Eaton 3565025M11M fuse with 23000V and 25A rating, shown in a close-up image, part of the NX ELX fuse series.
  • Eaton 3565025M11M fuse for electrical systems, 23000V, 25A, NX ELX series, showing the fuse's front view with branding.
  • Eaton 3565025M11M fuse for electrical systems, 23000V, 25A, NX ELX type, shown with visible fuse body and terminal connections.
  • Eaton 3565025M11M fuse for electrical panels, 23000V, 25A NX ELX series, shown in the image with fuse components.
1 7

Images are for reference only

Eaton

Eaton 3565025M11M Fuse | 23000V 25A NX ELX

Eaton 3565025M11M Fuse | 23000V 25A NX ELX

Title:
Price:
$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.
Stock:
Low inventory, please call (855) 875-5050 for stock check
Product Description:
The Eaton 3565025M11M is a medium-voltage, current-limiting full-range fuse from the ELX Full-Range Current-Limiting family. It is designed for applications requiring a 23,000V voltage rating and 25A current rating. The fuse features an NX connection, 2-inch diameter, Class C rating, and one barrel.

Key Features:
Manufacturer: Eaton
Brand: Eaton
Item Subcategory: Medium Voltage
Section: Current limiting full range fuse
Family: ELX Full-Range Current-Limiting
Voltage Rating: 23000V
Current Rating: 25A
Connection: NX
Diameter: 2
Class Rating: C
Barrels: 1
