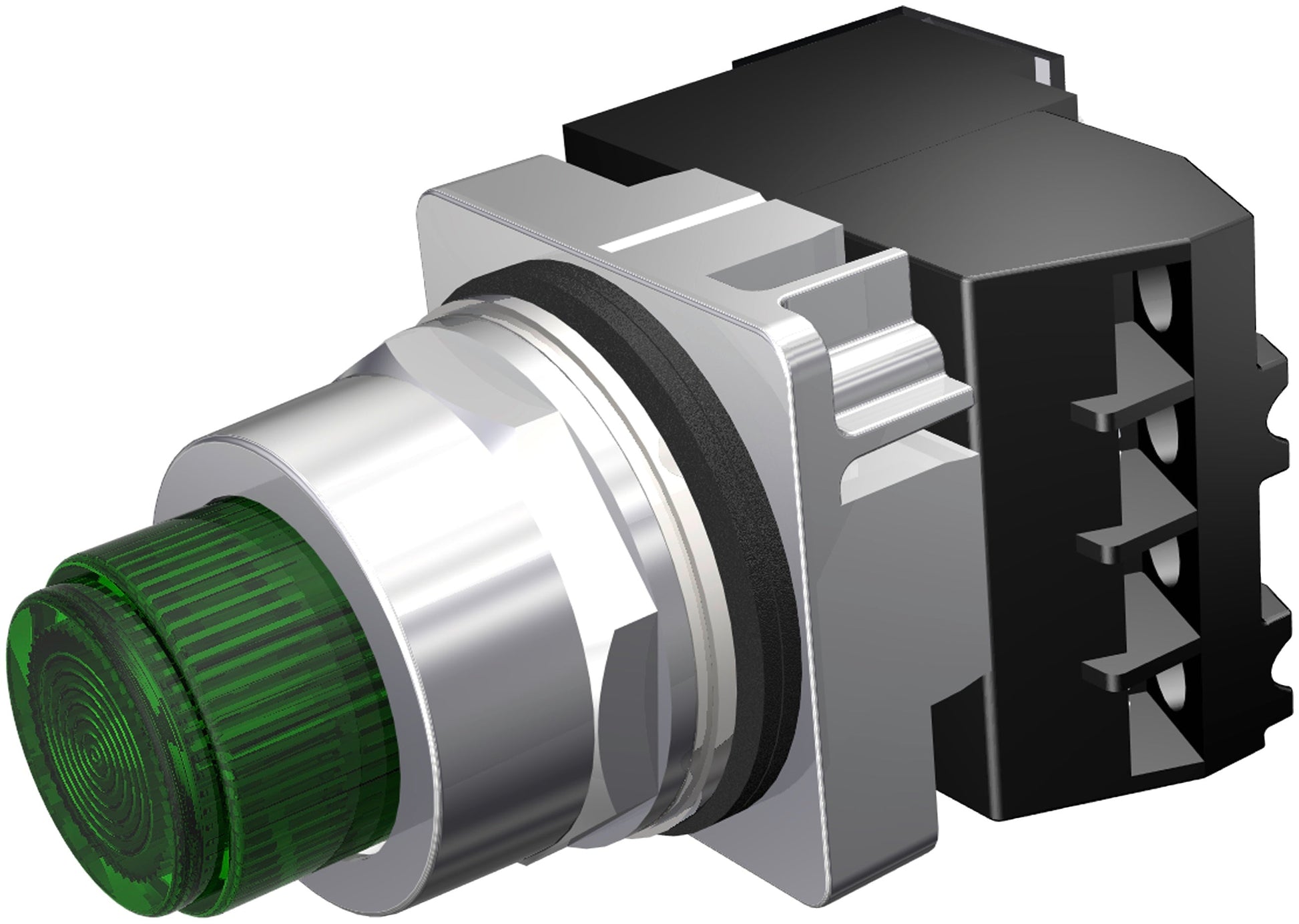

52PT6G3AB Siemens Command/52 Illuminated Pushbutton, 30 mm, Green, 1NO-1NC

52PT6G3AB Siemens Command/52 Illuminated Pushbutton, 30 mm, Green, 1NO-1NC

For momentary control switching, Siemens 52PT6G3AB provides one normally open and one normally closed contact in a 30 mm Command/52 illuminated pushbutton. The extended green button uses LED illumination with a 120 V AC transformer-type supply; screw-type terminals provide the electrical connections.

Common Applications

• Manual momentary switching using 1NO-1NC contacts

Key Features

• Button: Extended, plastic lens
• Illumination: Green LED, lamp included
• Body: Metal, chrome finish
• Contact Rating: A600/P600

Specifications

• Manufacturer: Siemens
• Full Part Number: 52PT6G3AB
• Product Type: Illuminated Pushbutton
• Series or Family: Command/52
• Nominal Size: 30 mm
• Operating Type: 2-position momentary
• Contact Configuration: 1NO-1NC
• Illumination Supply: 120 V AC, transformer type
• Illumination: Green LED, lamp included
• Button: Extended, plastic lens
• Body: Metal, chrome finish
• Contact Rating: A600/P600
• Certifications: UL Listed, CSA Certified
• NEMA Type: 1, 3, 3R, 4, 4X, 12, 13
• IP Protection: IP66; terminals IP20
• Thermal Current: 10 A
• Terminals: Screw-type
• Lamp Transformer Output: 6 V

Product Identification

FAQ

Which pushbutton configuration is 52PT6G3AB?

The Siemens 52PT6G3AB combines Command/52 construction, a 30 mm nominal size and illuminated pushbutton operation.

Is this a momentary unit, and what contacts are supplied?

Siemens 52PT6G3AB uses 2-position momentary operation with one normally open and one normally closed contact.

How is the illumination voltage specified on 52PT6G3AB?

The 52PT6G3AB illumination is transformer type with a 120 V AC supply and a 6 V lamp transformer output.

What identifies the button on this exact suffix?

On 52PT6G3AB, the extended plastic lens button is green and the supplied light source is an LED.
