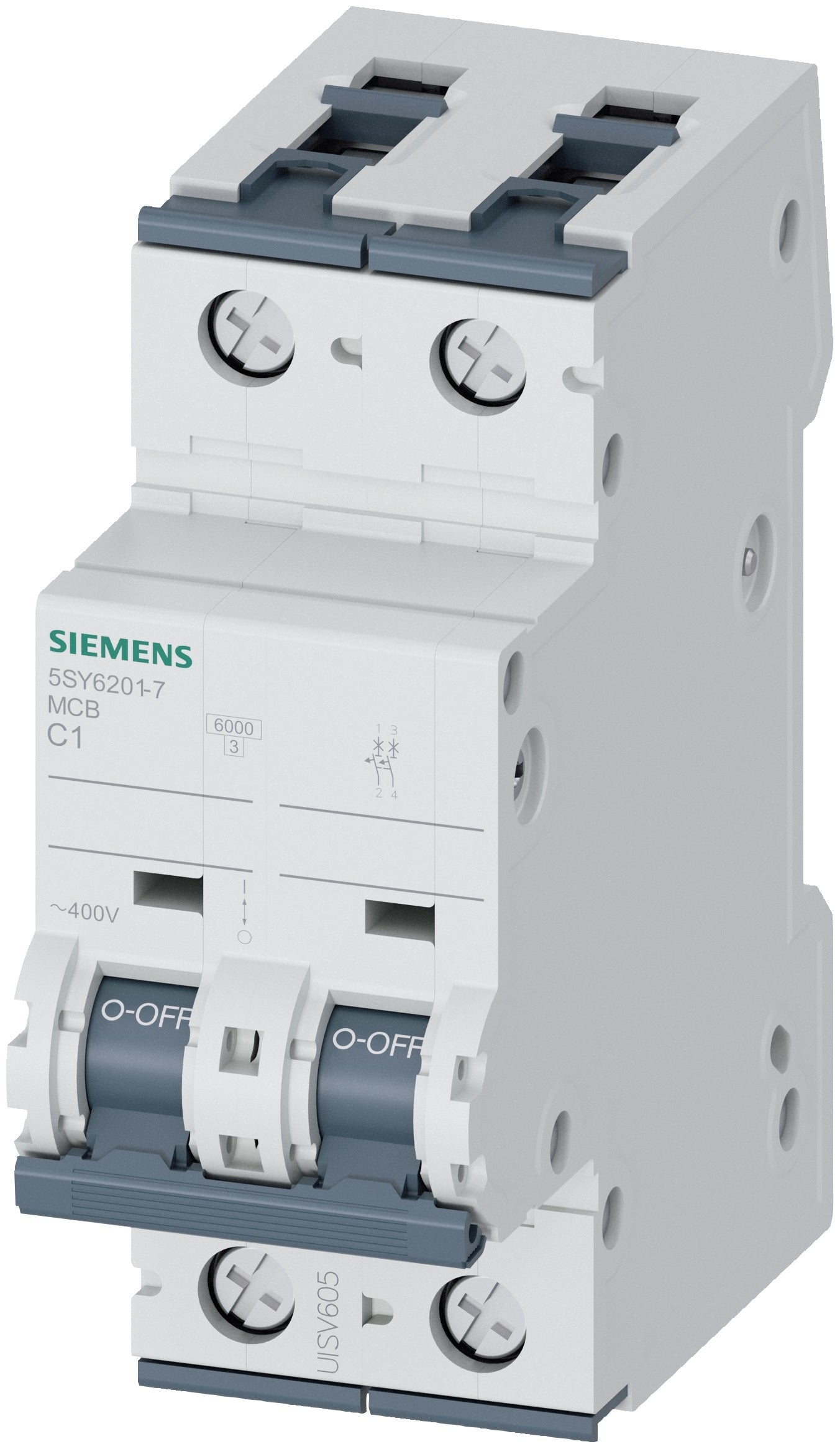

Siemens 5SY62017 Circuit Breaker | 1A 2-Pole C-Curve 400V 6kA 5SY Series

Product Description:
The Siemens 5SY62017 is a 2-pole miniature circuit breaker from the Sentron 5SY6 Series, providing precise overload and short-circuit protection for commercial and industrial applications. It features a 1 amp rating, 400V AC voltage, and a C-curve tripping characteristic with a 6kA interrupting capacity for reliable performance. With a compact 70mm depth and DIN-rail mounting, it is ideal for control panels and power distribution systems.

Key Features:
✔ Part Number: 5SY62017
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: 5SY Series
✔ Type: Miniature Circuit Breaker (MCB)
✔ Current Rating: 1 A
✔ Poles: 2-Pole
✔ Trip Curve: C-Curve (Class C)
✔ Voltage: 400 V AC
✔ Interrupting Capacity: 6 kA
✔ Depth: 70 mm
✔ Mounting: Snap-on / quick assembly
✔ Standards & Approvals: UL 1077, CSA C22.2, IEC 60947-2
✔ Wire Range: 14 AWG to 4 AWG
✔ UPC: 75455490380
✔ GTIN: 00754554903804
✔ Weight: 0.7 lb
