800FM-SR32 22mm Metal Selector Switch - 3-Position, Spring Return from Right

800FM-SR32 22mm Metal Selector Switch - 3-Position, Spring Return from Right

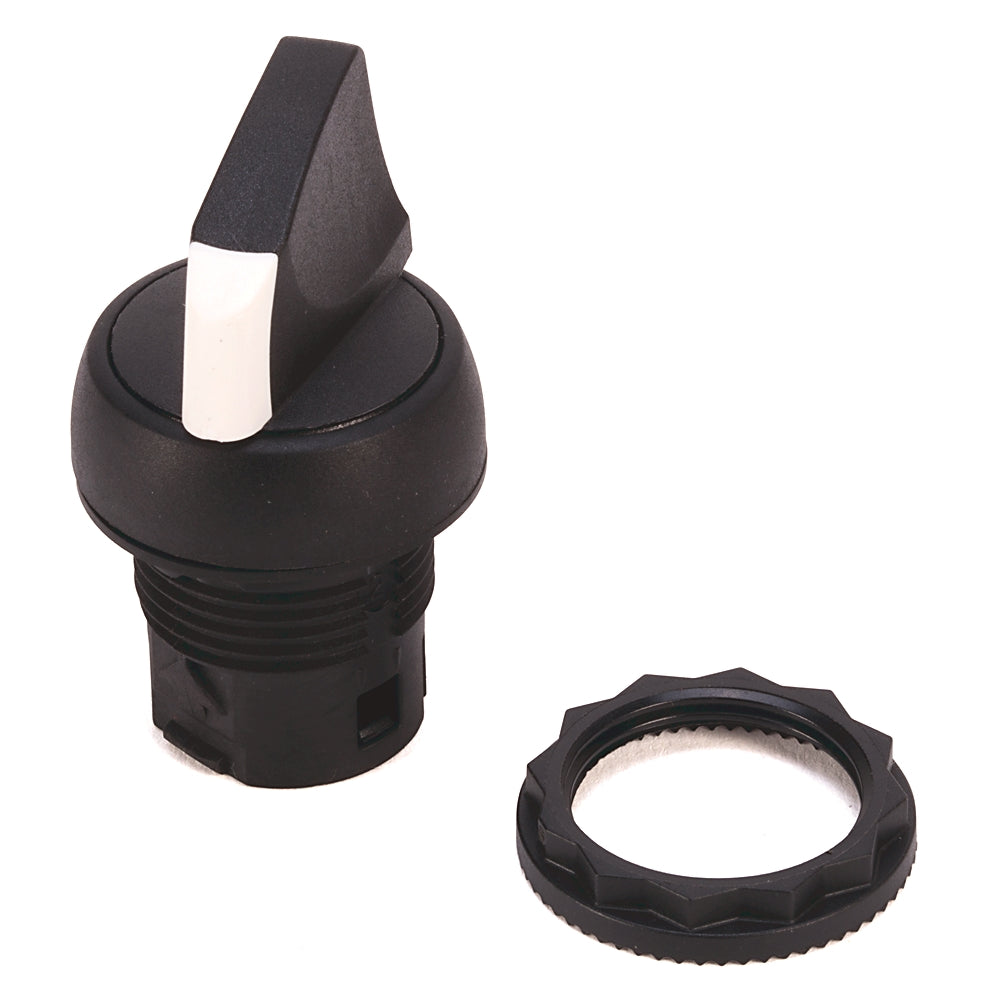

Need a 3-position selector that snaps back to center from the right? The Allen-Bradley 800FM-SR32 drops into a standard 22.5 mm panel hole and gives you left and center as maintained detents with the right position spring loaded, so it returns to center the moment you let go. That is your classic jog or momentary-run position with two held positions next to it. The operator is die-cast zinc with chromate plating, a black standard knob, non-illuminated, and sealed to Type 4/13 and IP66 for panels that see washdown or dust.

Heads up before you order: this is the operator head only. To build a working switch on your panel you also need a 22.5 mm mounting latch and your 800F contact blocks - 800F-X10 for N.O. and 800F-X01 for N.C. Grab the contacts that match your control wiring and you are set.

Common Applications

• Hand-Off-Jog selector on a motor starter
• Run-Off-Momentary control at the machine
• Any spot you need one position to spring back to center
• Replacing a worn 800F selector head in an existing station

Key Features

• Spring Return Right: Left and center hold, right kicks back to center on release.
• Metal Build: Die-cast zinc operator that holds up to daily use on the floor.
• Standard 22.5 mm Hole: Drops into the same cutout as the rest of your 800F devices.
• Sealed: Type 4/13 and IP66, good for washdown and dusty panels.
• Listed: UL, CSA, cUL, CCC, KC, and Marine.

Specifications

• Catalog Number: 800FM-SR32
• Type: 22mm selector switch operator, 800F PB
• Positions: 3
• Action: Spring return from right; left and center maintained
• Operator Material: Metal, die-cast zinc, chromate plated
• Knob: Standard black knob, white insert, standard orientation
• Illumination: None (no power module)
• Mounting: 22.5 mm round panel cutout
• Enclosure Rating: Type 4/13, IP66
• Operating Temperature: -25 C to +70 C
• Certifications: UL, CSA, cUL, CCC, KC, Marine

Product Identification

• UPC: 662073818076
• Mounting Cutout: 22.5 mm round
• Configuration: Operator only - latch and contact blocks ordered separately

FAQ

Does this come with contacts? No. It is the operator only. Add a 22.5 mm latch and 800F contact blocks (800F-X10 N.O., 800F-X01 N.C.) to complete it.

Which way does it spring back? From the right. Turn it right and it returns to center on release. Left and center stay put.

Will it fit my existing 800F station? Yes, it uses the standard 22.5 mm cutout and 800F latch system.

Is the knob metal? The operator is metal (die-cast zinc) with a standard black knob.

Is it illuminated? No, this is a non-illuminated operator.

What contacts do I need? Match them to your wiring - 800F-X10 for normally open, 800F-X01 for normally closed.
