Product Description:

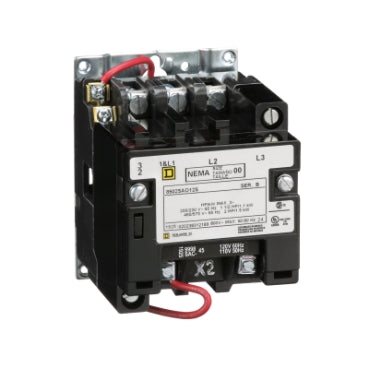

The Square D 8502SAO12V02S is a 600V 3-phase contactor with a 9A rating and 3 poles. It features a 110V coil and is suitable for motors up to 2 hp at 480V. This non-reversing contactor is designed for reliable motor control in industrial applications.
Key Features:
✔ Part Number: 8502SAO12V02S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8502
✔ Type: SAO
✔ Voltage: 600
✔ Amperage: 9
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 1 1/2 hp HP @ 3 Phase - 240V 1 1/2 hp HP @ 3 Phase - 480V 2 hp
✔ Configuration: Non-Reversing
✔ Aux Contacts: Auxiliary Contacts Not Included
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: 9 A
✔ Coil Voltage Minimum: 110
✔ Nema Starter Size: 0
✔ Frequency: 50/60 Hz
✔ UPC: 785901770725
✔ GTIN: 00785901770725
✔ Country of Origin: Mexico
✔ Dimensions: 3.22 in x 4.34 in
✔ Weight: 1.45
✔ Certification: CSA, UL E78351 CCN NLDX
