Product Description:

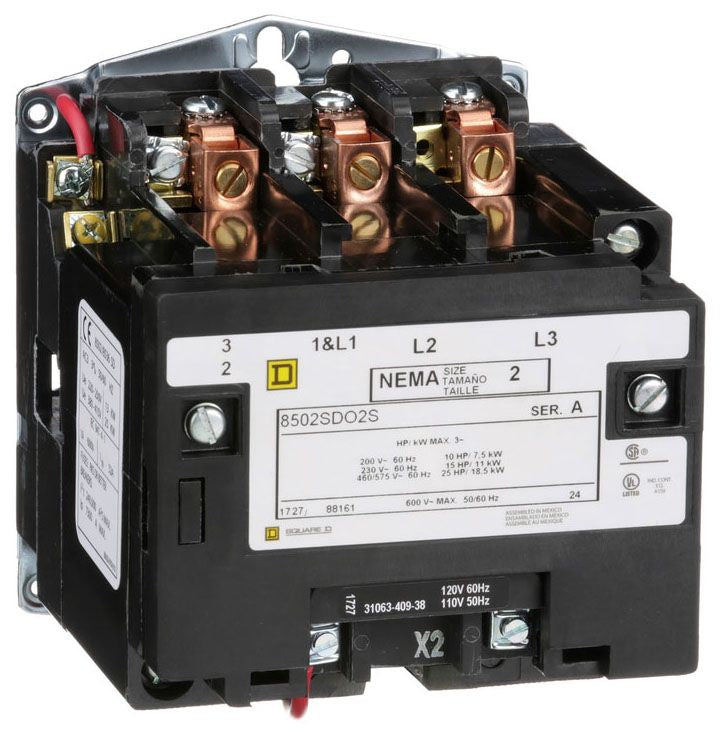

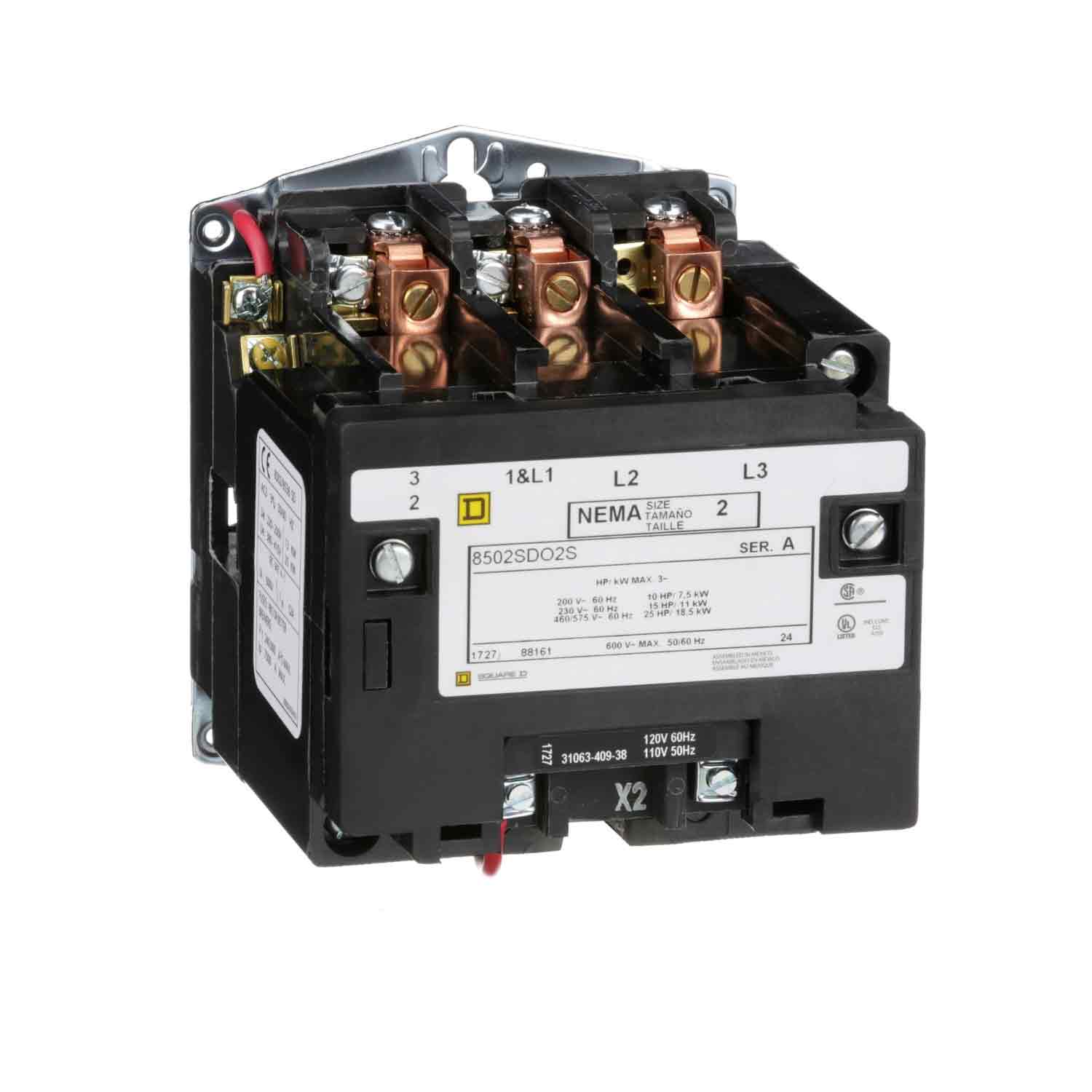

The Square D 8502SDO2V02S is a Class 8502 Contactor designed for 3-phase motor control. It operates at 600V with a 45A rating and features a 110V coil. This non-reversing contactor supports horsepower ratings up to 25 hp at 480V, making it suitable for industrial applications. Its NEMA Type S design ensures reliable performance in demanding environments.
Key Features:
✔ Part Number: 8502SDO2V02S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8502
✔ Type: SDO
✔ Voltage: 600
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
✔ Configuration: Non-Reversing
✔ Aux Contacts: Auxiliary Contacts Not Included
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: 45 A
✔ Coil Voltage Minimum: 110
✔ Nema Starter Size: 2
✔ Frequency: 50/60 Hz
✔ UPC: 785901881612
✔ GTIN: 00785901881612
✔ Country of Origin: Mexico
✔ Dimensions: 4.31 in x 5.13 in
✔ Weight: 2.59
✔ Certification: CSA, UL E78351 CCN NLDX
