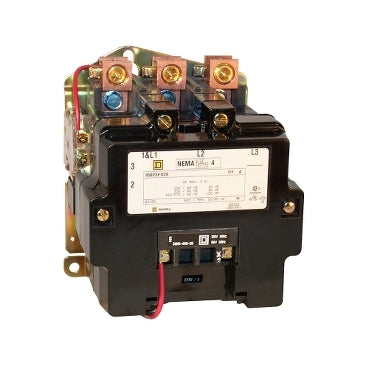

Square D 8502SFO2V08 Contactor 3P 600V 135A 3PH Class 8502

Product Description:
The Square D 8502SFO2V08 is a Class 8502 NEMA Type S contactor designed for 3-phase motor control applications. It operates at 600V with a 135A rating and is suitable for non-reversing configurations. This contactor supports various horsepower ratings including 40 hp at 208V, 50 hp at 240V, and 100 hp at 480V. It includes a 208 VAC coil and is built for reliable industrial use.

Key Features:
✔ Part Number: 8502SFO2V08
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8502
✔ Type: SFO
✔ Voltage: 600
✔ Amperage: 135
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
✔ Configuration: Non-Reversing
✔ Aux Contacts: Auxiliary Contacts Not Included
✔ Coil Voltage Maximum: 208
✔ Full Load Amps: 135 A
✔ Nema Starter Size: 4
✔ Frequency: 60 Hz
✔ UPC: 78590186188
✔ GTIN: 00785901861881
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 8.19 in
✔ Weight: 8.99
✔ Certification: CSA, UL E78351 CCN NLDX
