Product Description:

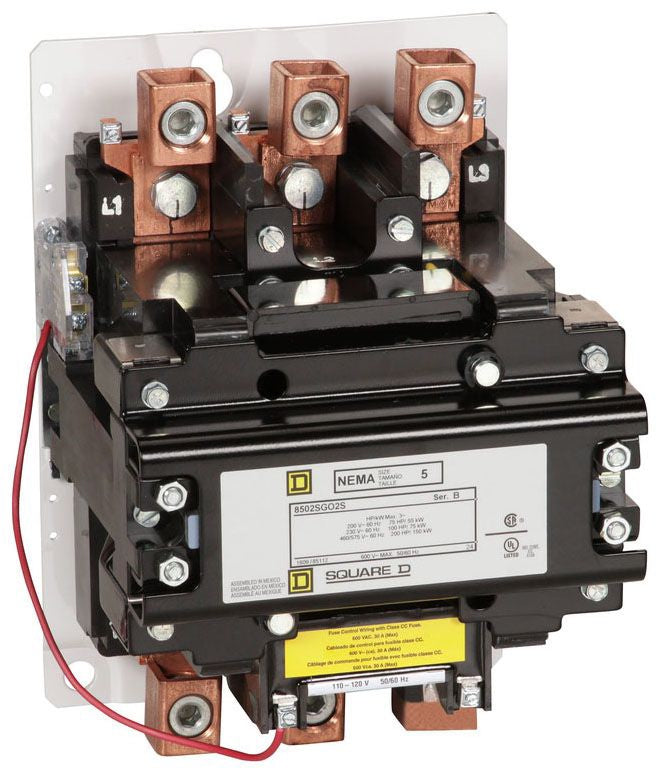

The Square D 8502SGO2V02S is a Class 8502 Contactor designed for 600V 3-phase applications. It features a 270A rating and 3-pole non-reversing configuration, suitable for motors up to 200 hp at 480V. This unit includes a 110V coil and meets CSA and UL certifications.
Key Features:
✔ Part Number: 8502SGO2V02S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8502
✔ Type: SGO
✔ Voltage: 600
✔ Amperage: 270
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 75 hp HP @ 3 Phase - 240V 100 hp HP @ 3 Phase - 480V 200 hp
✔ Configuration: Non-Reversing
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: 270 A
✔ Coil Voltage Minimum: 110
✔ Nema Starter Size: 5
✔ Frequency: 50/60 Hz
✔ UPC: 785901851127
✔ GTIN: 00785901851127
✔ Country of Origin: Mexico
✔ Dimensions: 8.66 in x 12.31 in
✔ Weight: 21.11
✔ Certification: CSA, UL E78351 CCN NLDX
