Product Description:

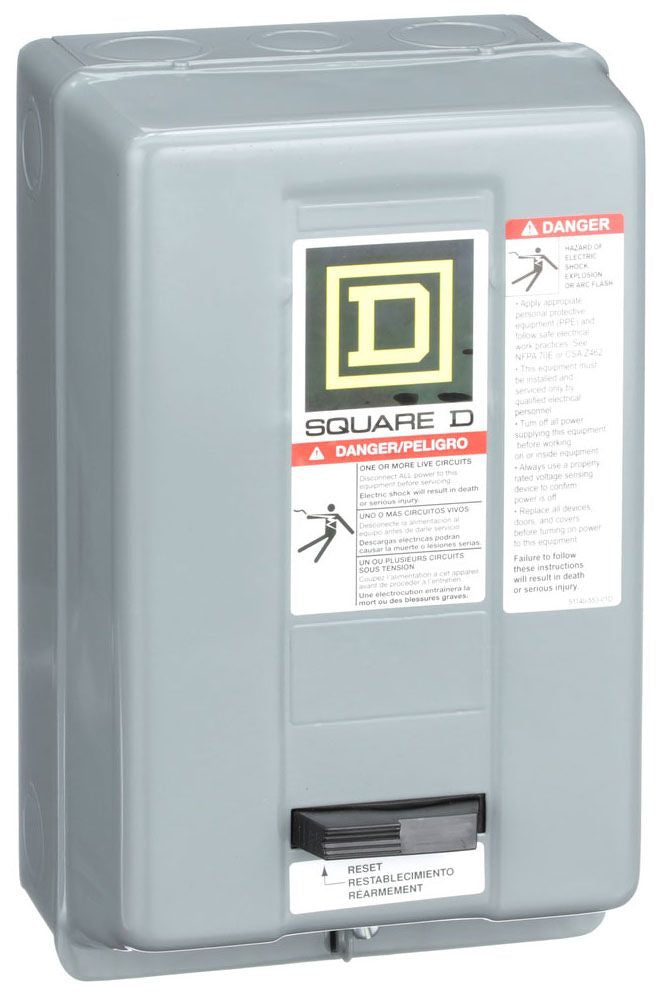

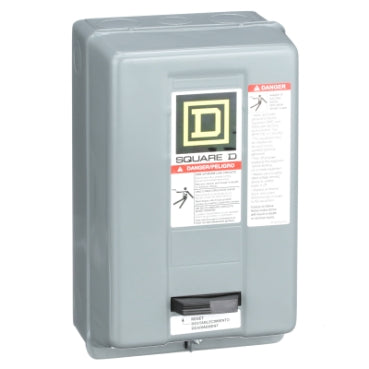

The Square D 8536SAG11V02S is a 600V 1-phase motor starter with a 9 Amp rating and 2 poles. It requires separate heater packs for operation. This non-reversing starter features solid-state protection and is suitable for various motor control applications.
Key Features:
✔ Part Number: 8536SAG11V02S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Voltage: 600
✔ Amperage: 9 Amp
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LIT - Long-Time, Instantaneous and Targets
✔ Coil Voltage Maximum: 120 VAC
✔ Nema Rating: 00
✔ Nema Starter Size: 0
✔ Protection: Solid State
✔ UPC: 785901018711
✔ Country of Origin: Mexico
✔ Dimensions: 152 mm x 254 mm
✔ Weight: 3.23 lb
✔ Certification: UL Listed; CSA; NEMA
