Product Description:

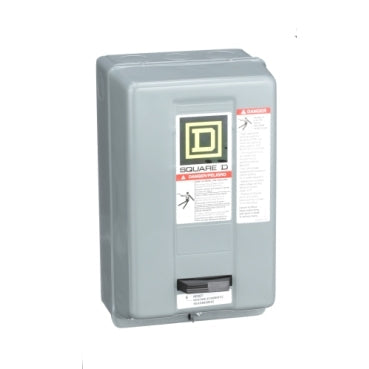

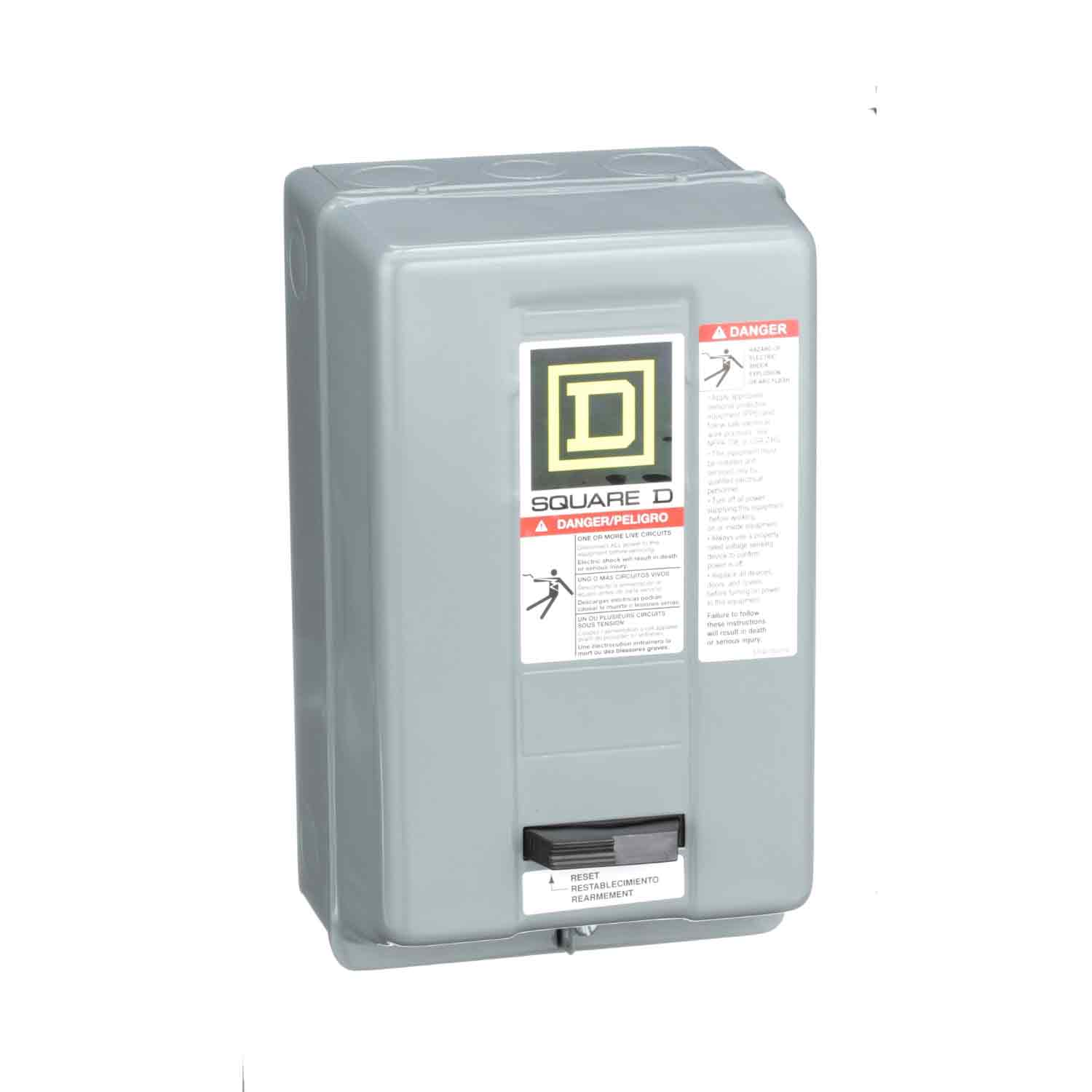

The Square D 8536SAG12V02S is a 600V 3-phase motor starter with a 9 Amp rating and 3 poles. It supports horsepower ratings of 1 1/2 hp at 208V/240V and 2 hp at 480V, featuring a 110V coil. This non-reversing starter requires separate heater packs for operation.
Key Features:
✔ Part Number: 8536SAG12V02S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SAG
✔ Voltage: 600
✔ Amperage: 9 Amp
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 1 1/2 hp HP @ 3 Phase - 240V 1 1/2 hp HP @ 3 Phase - 480V 2 hp
✔ Configuration: Nonreversing
✔ Coil Voltage Maximum: 120 VAC
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 00
✔ Nema Starter Size: 0
✔ Enclosure: 1
✔ UPC: 785901743569
✔ GTIN: 00785901743569
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 10 in
✔ Weight: 3.38
✔ Certification: CSA, UL Listed
