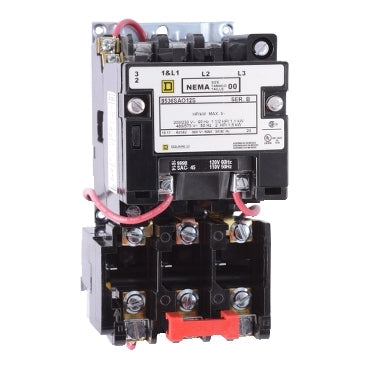

Square D 8536SAO12V03 Motor Starter 3 pole 3 phase 600V 9A 220V coil Class 8536

Product Description:
The Square D 8536SAO12V03 is a Class 8536 motor starter designed for 600V, 3-phase applications with a 9 Amp rating. It features a 220V coil and supports various horsepower ratings depending on the voltage, including 1-1/2 hp at 208V/240V and 2 hp at 480V. This non-reversing starter is built for reliable motor control in industrial settings. Heater packs are sold separately for customized thermal protection.

Key Features:
✔ Part Number: 8536SAO12V03
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SAO
✔ Voltage: 600
✔ Amperage: 9 Amp
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 1 1/2 hp HP @ 3 Phase - 240V 1 1/2 hp HP @ 3 Phase - 480V 2 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: Not Applicable
✔ Coil Voltage Maximum: 240 VAC
✔ Coil Voltage Minimum: 220
✔ Nema Rating: 00
✔ Nema Starter Size: 0
✔ UPC: 785901770718
✔ GTIN: 00785901770718
✔ Country of Origin: Mexico
✔ Dimensions: 3.5 in x 6.77 in
✔ Weight: 1.83
✔ Certification: CSA, UL Listed
