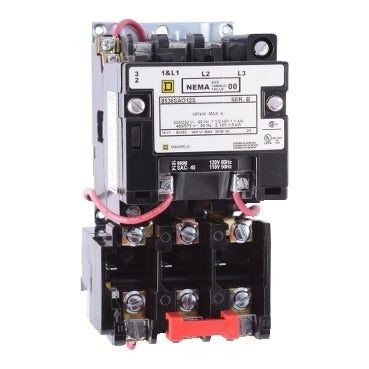

Square D 8536SAO12V06 Motor Starter | 3 pole 6V 9A 440V coil Class 8536

Product Description:
The Square D 8536SAO12V06 is a Class 8536 motor starter with a 6V 9 Amp rating and 3 poles. It supports horsepower ratings of 1 1/2 hp at 208V/240V and 2 hp at 480V, featuring a 440V coil. This non-reversing starter requires separate heater packs for operation.

Key Features:
✔ Part Number: 8536SAO12V06
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SAO
✔ Voltage: 6
✔ Amperage: 9 Amp
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 1 1/2 hp HP @ 3 Phase - 240V 1 1/2 hp HP @ 3 Phase - 480V 2 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: Not Applicable
✔ Coil Voltage Maximum: 480 VAC
✔ Coil Voltage Minimum: 440
✔ Nema Starter Size: 0
✔ UPC: 785901743453
✔ GTIN: 00785901743453
✔ Country of Origin: Mexico
✔ Dimensions: 3.5 in x 6.77 in
✔ Weight: 1.83 lb
✔ Certification: CSA, UL Listed
