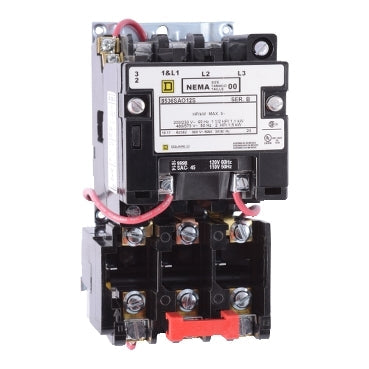

Square D 8536SAO12V08 Motor Starter | 3P 3Ph 9A 6V Class 8536

Product Description:
The Square D 8536SAO12V08 is a Class 8536 motor starter designed for 3-phase applications with a 9 Amp rating. It supports various horsepower ratings depending on the voltage, including 1 1/2 hp at 208V/240V and 2 hp at 480V. This non-reversing starter requires separate heater packs for operation and is built for reliable motor control in industrial settings.

Key Features:
✔ Part Number: 8536SAO12V08
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SAO
✔ Voltage: 6
✔ Amperage: 9 Amp
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 1 1/2 hp HP @ 3 Phase - 240V 1 1/2 hp HP @ 3 Phase - 480V 2 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: Not Applicable
✔ Coil Voltage Maximum: 208 VAC
✔ Nema Starter Size: 0
✔ UPC: 785901743460
✔ GTIN: 00785902000000
✔ Country of Origin: Mexico
✔ Dimensions: 3.5 in x 6.77 in
✔ Weight: 1.84
✔ Certification: CSA, UL Listed
