Product Description:

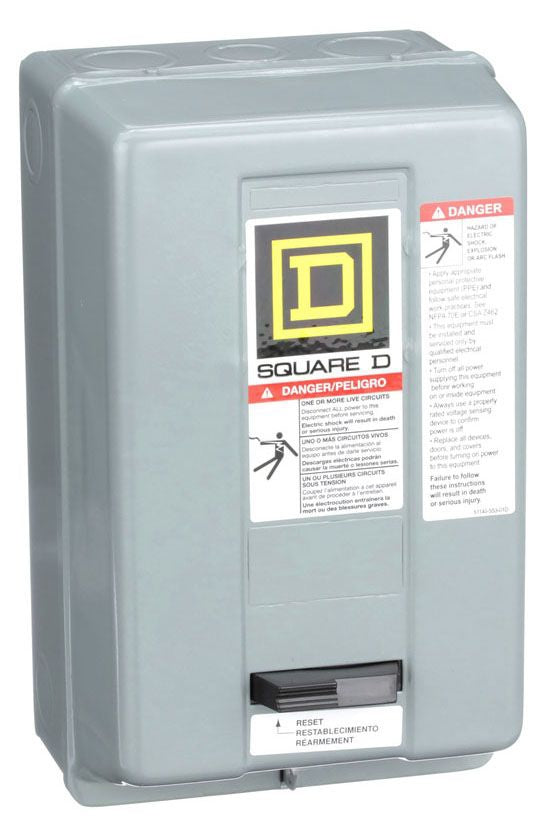

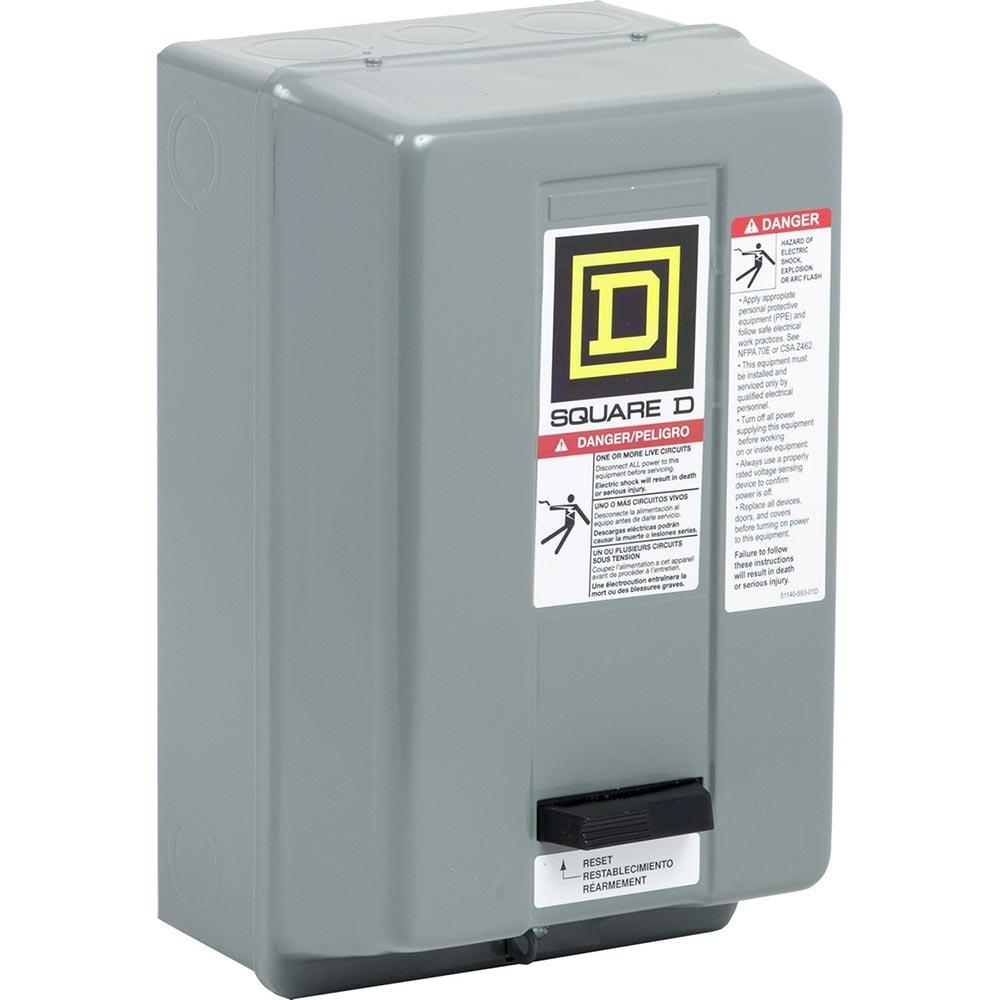

The Square D 8536SBG2V03 is a 600V 3-phase motor starter with an 18 Amp rating and 3 poles. It features a 220V coil and supports horsepower ratings of 3 hp at 208V/240V and 5 hp at 480V. This non-reversing starter requires separate heater packs for operation. It is designed for industrial motor control applications.
Key Features:
✔ Part Number: 8536SBG2V03
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SBG
✔ Voltage: 600
✔ Amperage: 18 Amp
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
✔ Coil Voltage Maximum: 240 VAC
✔ Coil Voltage Minimum: 220
✔ Nema Rating: 0
✔ Nema Starter Size: 0
✔ Enclosure: 1
✔ UPC: 785901869108
✔ GTIN: 00785901869108
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 10 in
✔ Weight: 3.36
✔ Certification: CSA, UL Listed
