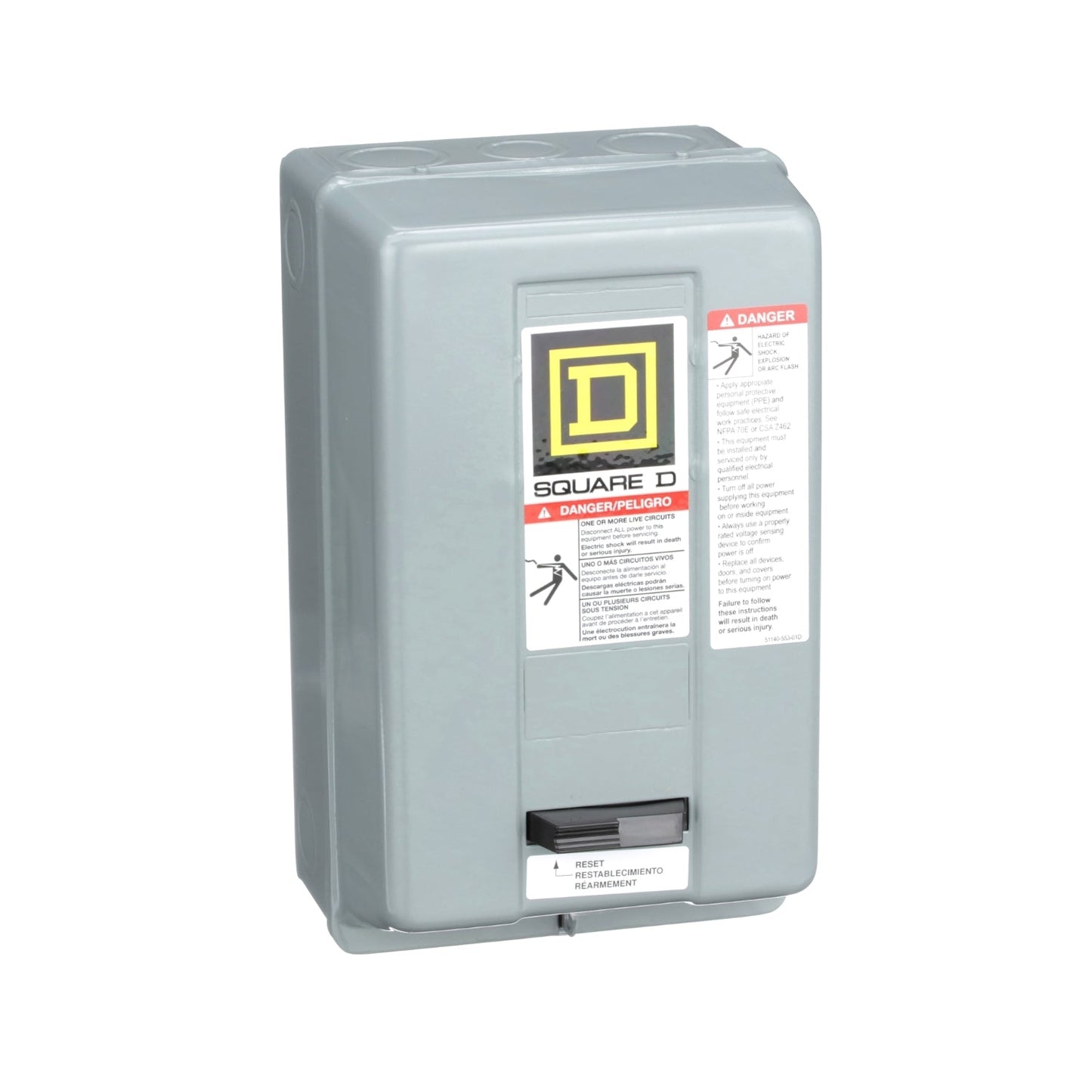

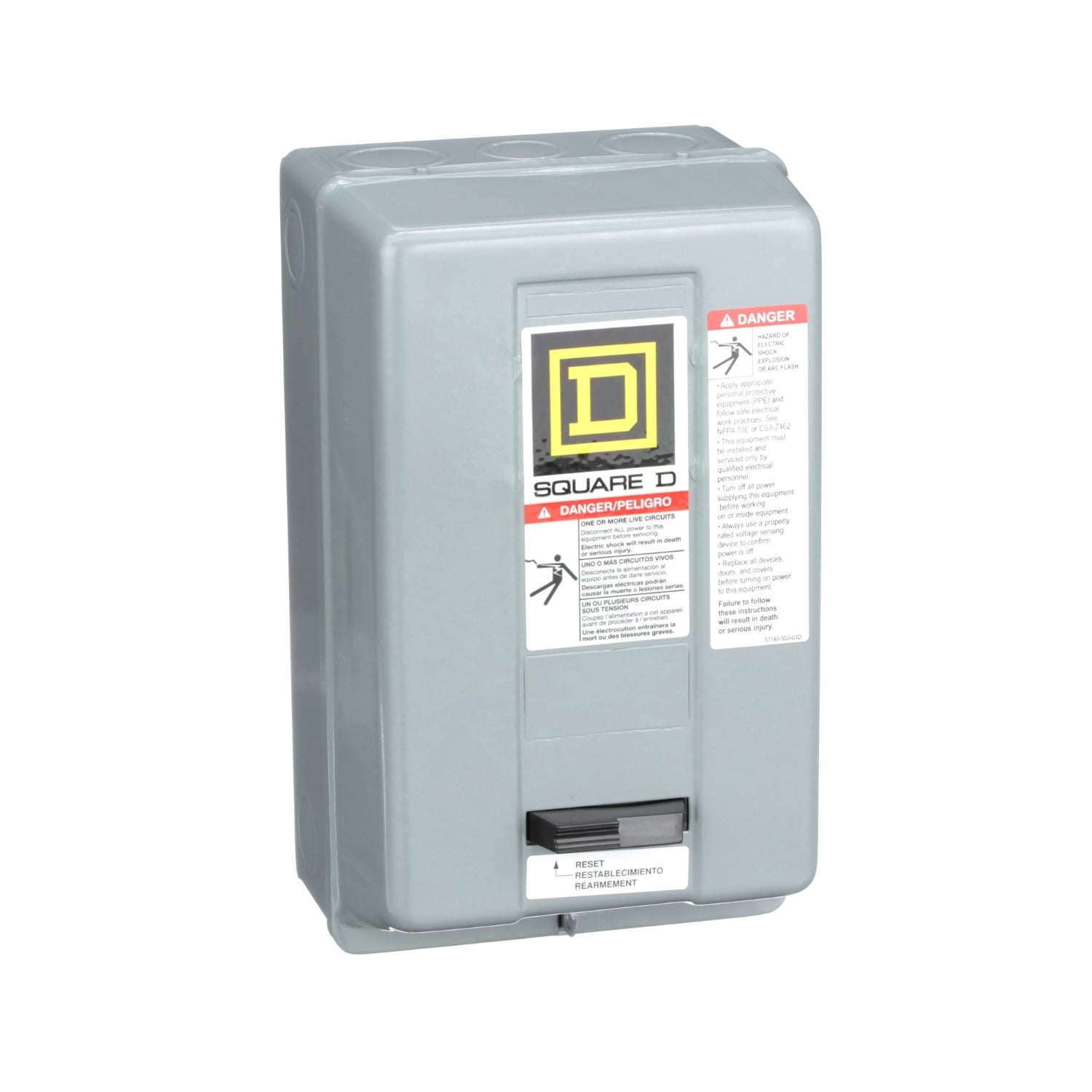

Square D 8536SBG2V08 Motor Starter 3 pole 3 phase 18A 208V coil Class 8536

Product Description:
The Square D 8536SBG2V08 is a Class 8536 motor starter designed for 3-phase applications with an 18A rating. It supports multiple horsepower ratings including 3 HP at 208V/240V and 5 HP at 480V, and comes with a 208V coil installed. This non-reversing starter is built for reliable motor control in industrial settings. Heater packs are sold separately for complete thermal protection.

Key Features:
✔ Part Number: 8536SBG2V08
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SBG
✔ Voltage: 6
✔ Amperage: 18
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 208 VAC
✔ Coil Voltage Minimum: 208
✔ Nema Starter Size: 0
✔ Enclosure: Nema 1
✔ UPC: 785901789802
✔ GTIN: 00785901789802
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 10 in
✔ Weight: 3.35 lb
✔ Certification: CSA, UL Listed
