Product Description:

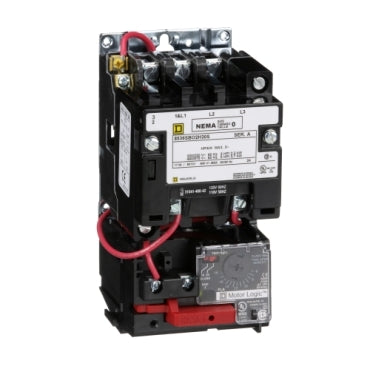

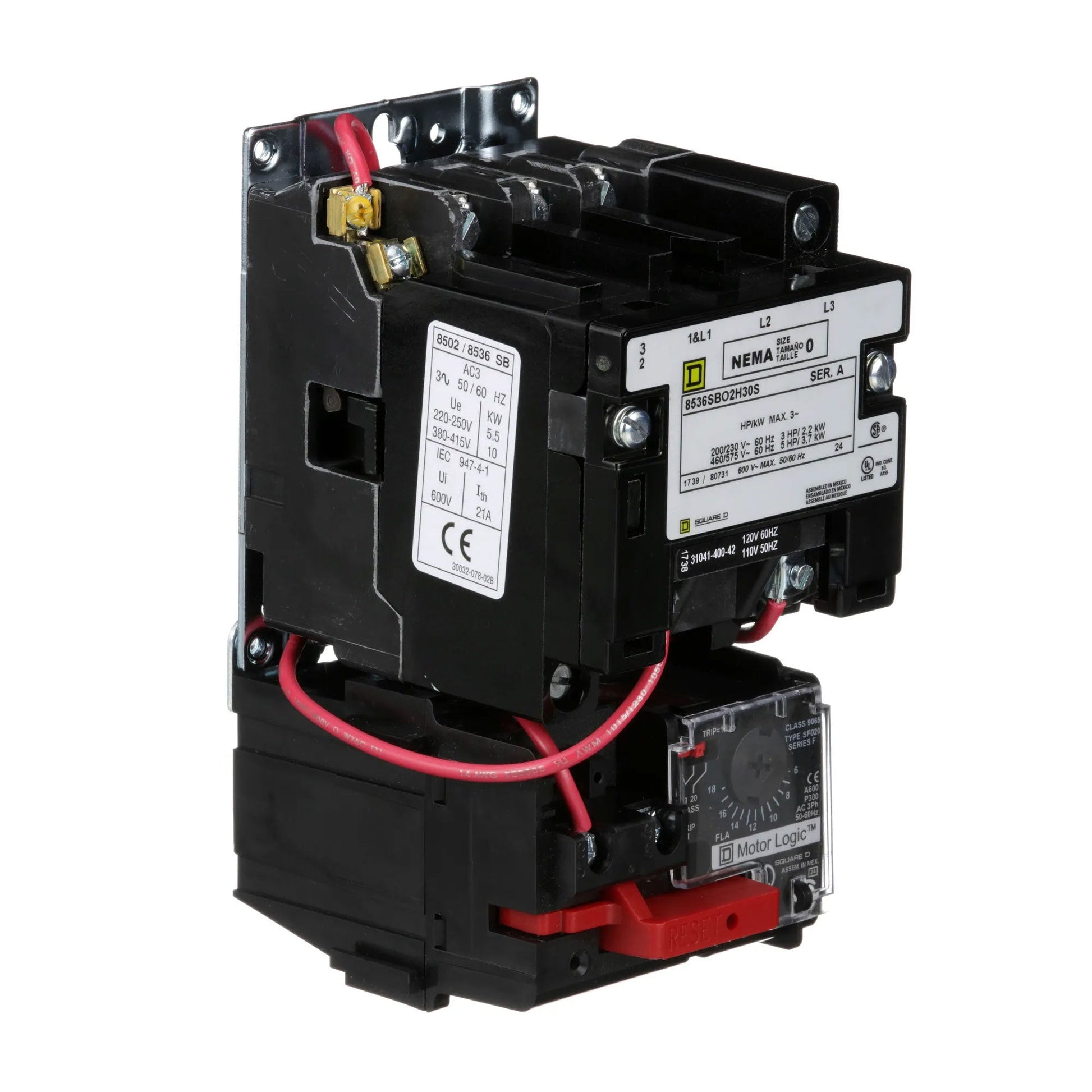

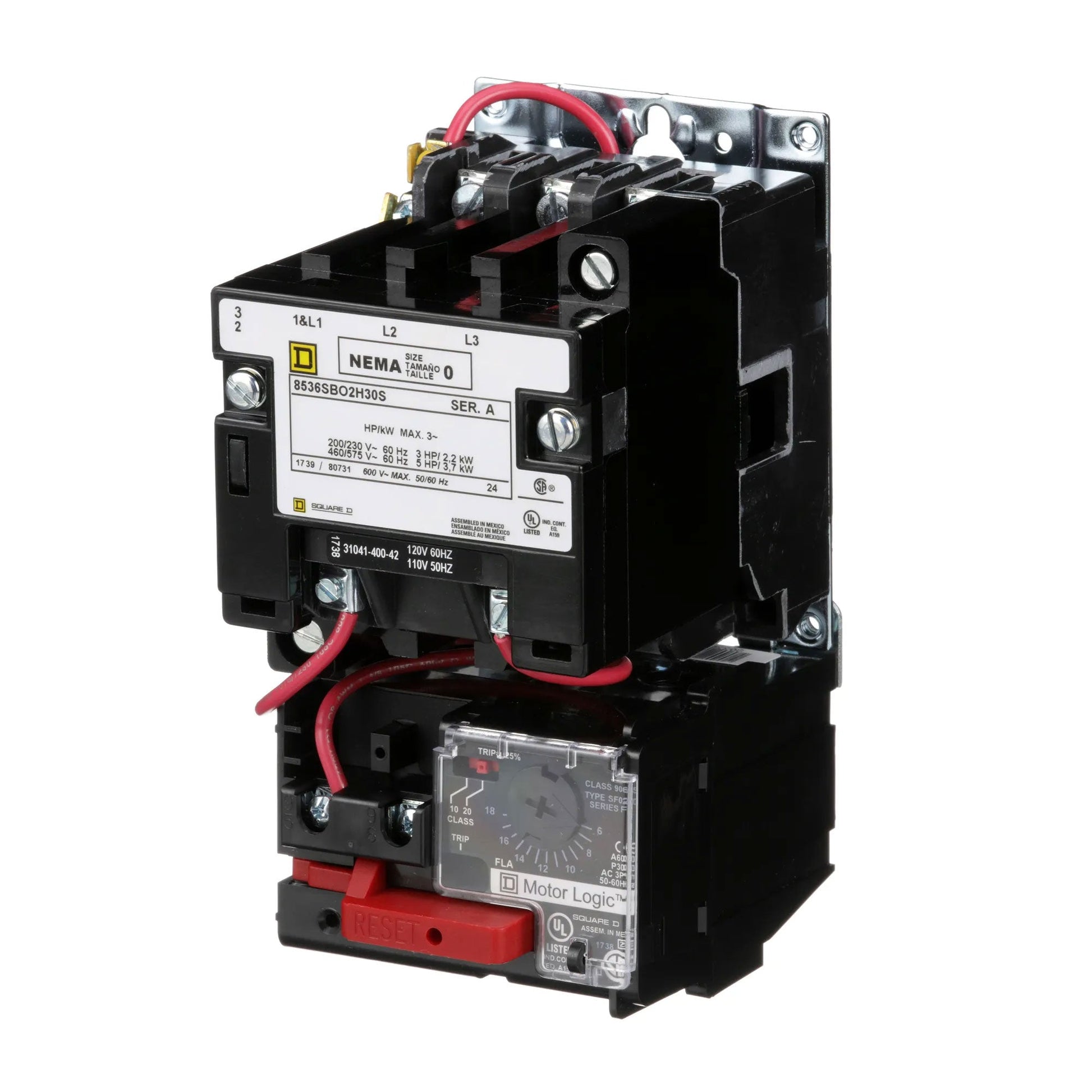

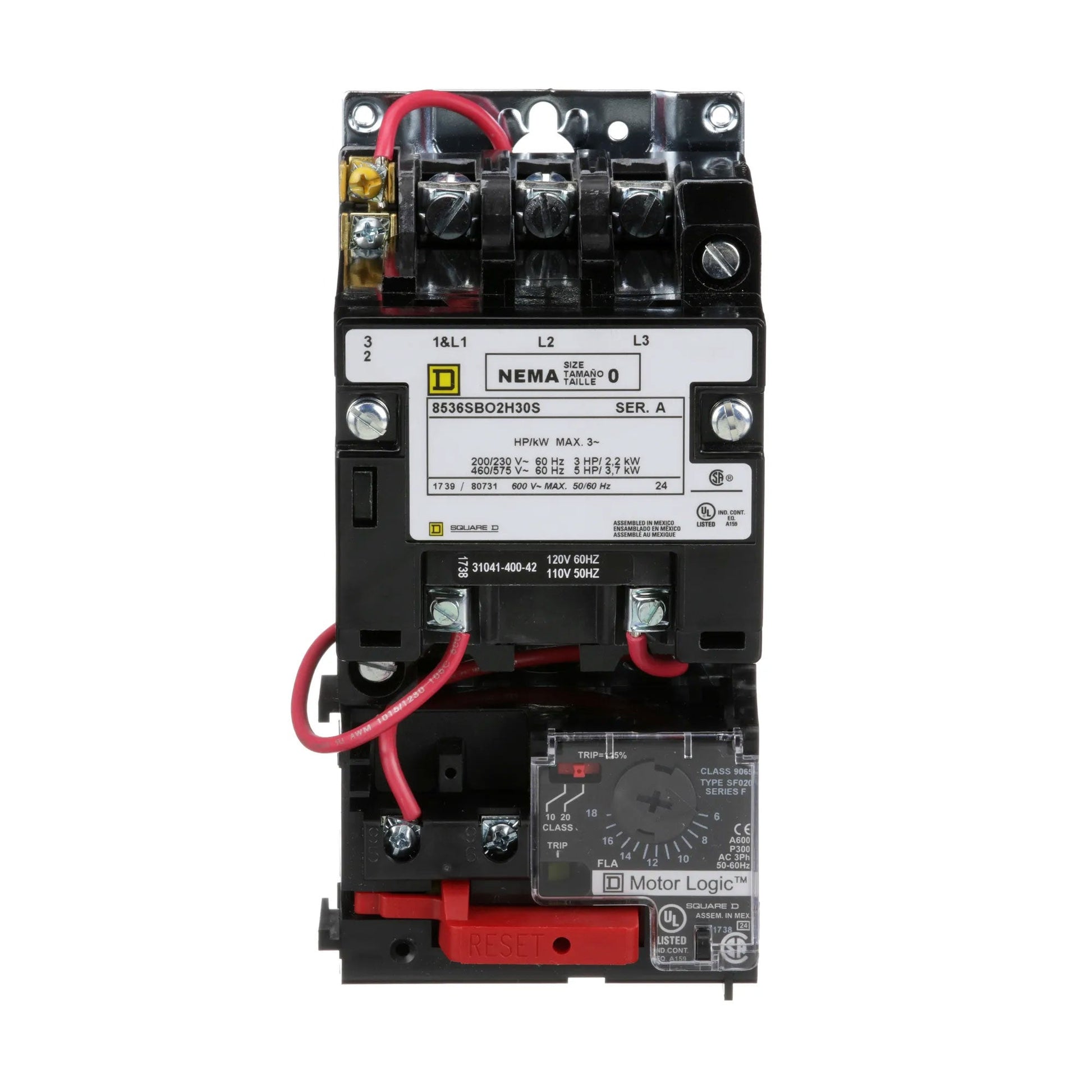

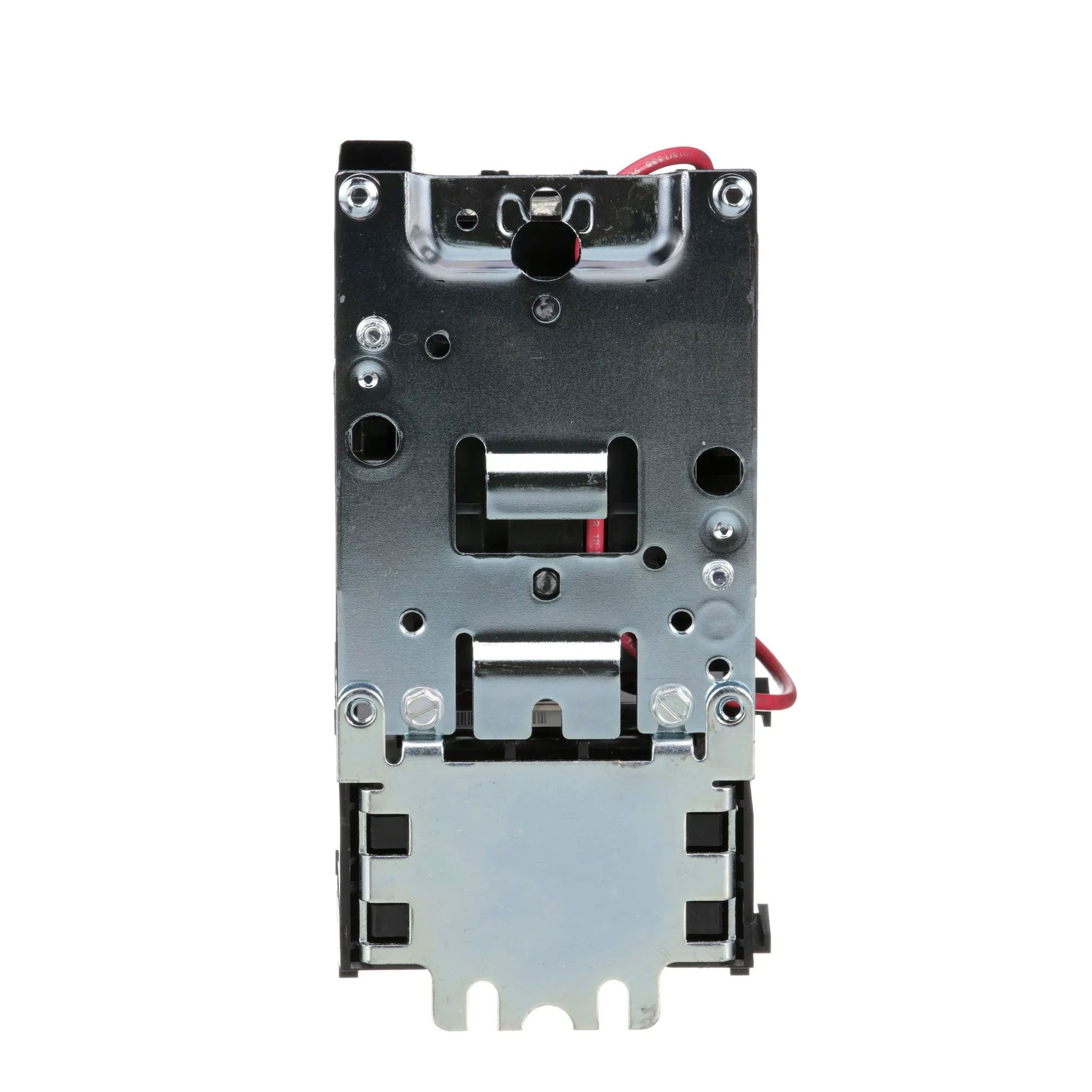

The Square D 8536SBO2V02H30S is a 600V 3-phase motor starter with an 18 Amp rating and 3 poles. It supports horsepower ratings of 3 hp at 208V/240V and 5 hp at 480V, featuring a 110V coil. This nonreversing starter includes one normally open auxiliary contact and requires separate heater packs.
Key Features:
✔ Part Number: 8536SBO2V02H30S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SBO
✔ Voltage: 600
✔ Amperage: 18 Amp
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: 1NO
✔ Coil Voltage Maximum: 120 VAC
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 0
✔ Nema Starter Size: 0
✔ UPC: 785901807315
✔ GTIN: 00785901807315
✔ Country of Origin: Mexico
✔ Dimensions: 4.5 in x 6.9 in
✔ Weight: 1.79
✔ Certification: CSA, UL Listed
