Product Description:

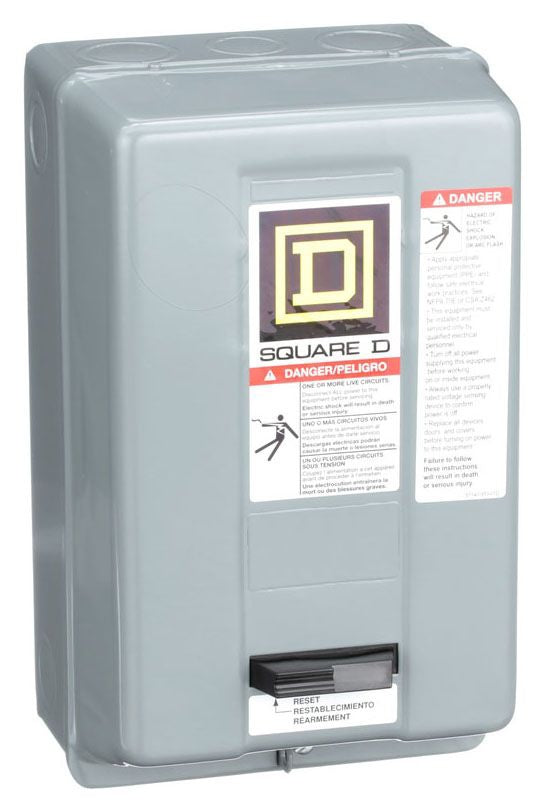

The Square D 8536SCG3V06 is a 600V 3-phase motor starter with a 27 Amp rating and 3 poles. It supports horsepower ratings of 7 1/2 hp at 208V and 240V, and 10 hp at 480V. This nonreversing starter includes a 440V coil but requires separate heater packs.
Key Features:
✔ Part Number: 8536SCG3V06
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SCG
✔ Voltage: 600
✔ Amperage: 27 Amp
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 480 VAC
✔ Coil Voltage Minimum: 440
✔ Nema Rating: 1
✔ Nema Starter Size: 1
✔ Enclosure: 1
✔ UPC: 785901864714
✔ GTIN: 00785901864714
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 10 in
✔ Weight: 3.36
✔ Certification: CSA, UL Listed
