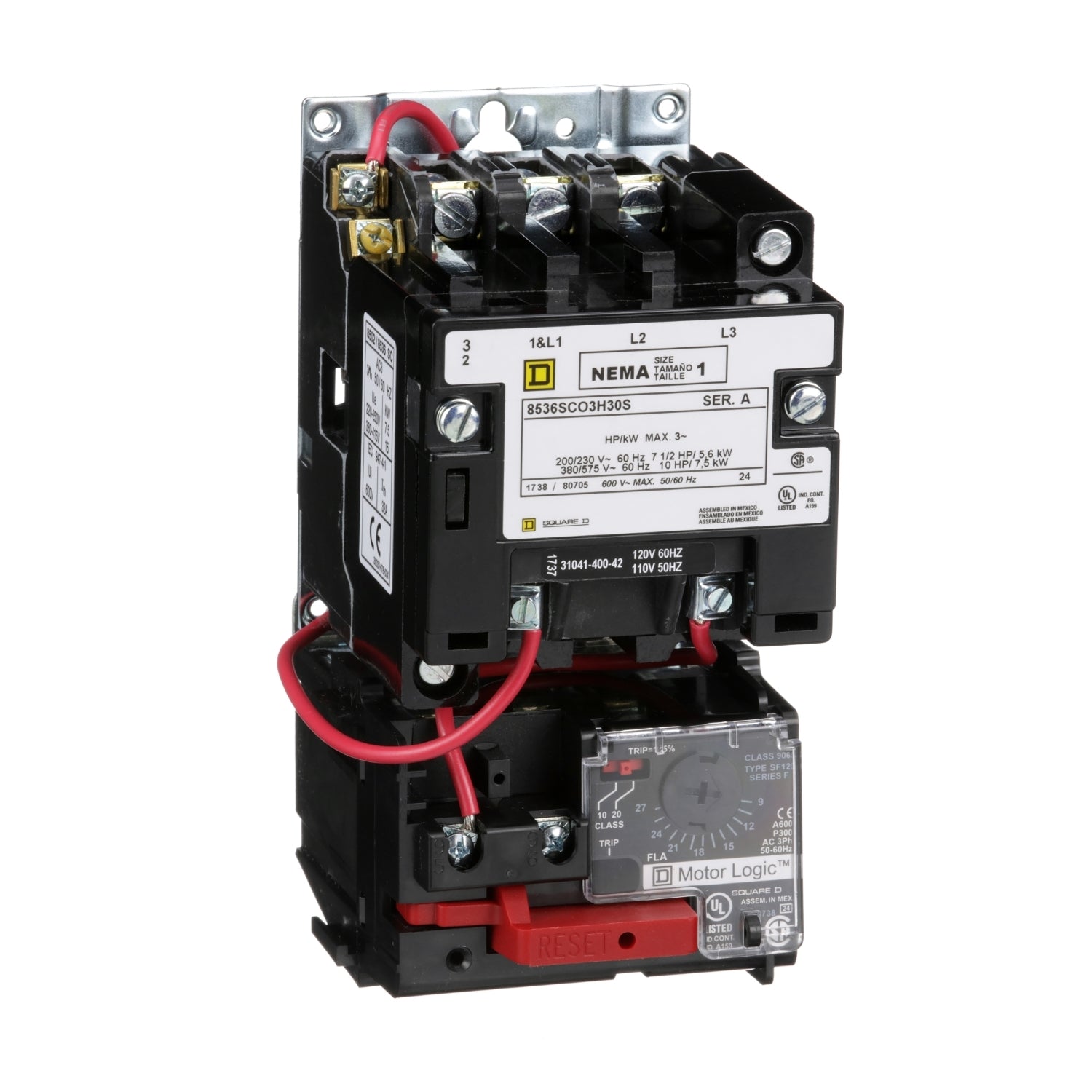

Square D 8536SCO3V02H30S Motor Starter | 3P 3Ph 600V 27A 110V Coil Class 8536

Product Description:
The Square D 8536SCO3V02H30S is a Class 8536 motor starter designed for 600V, 3-phase applications with a 27A rating. It supports various horsepower ratings including 7-1/2 HP at 208V/240V and 10 HP at 480V. This non-reversing starter includes a 110V coil and one normally open auxiliary contact. Heater packs are required and sold separately.

Key Features:
✔ Part Number: 8536SCO3V02H30S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SCO
✔ Voltage: 600
✔ Amperage: 27
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: 1NO
✔ Coil Voltage Maximum: 120 VAC
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 1
✔ Nema Starter Size: 1
✔ UPC: 785901807056
✔ GTIN: 00785901807056
✔ Country of Origin: Mexico
✔ Dimensions: 4.5 in x 6.9 in
✔ Weight: 1.82
✔ Certification: CSA, UL Listed
