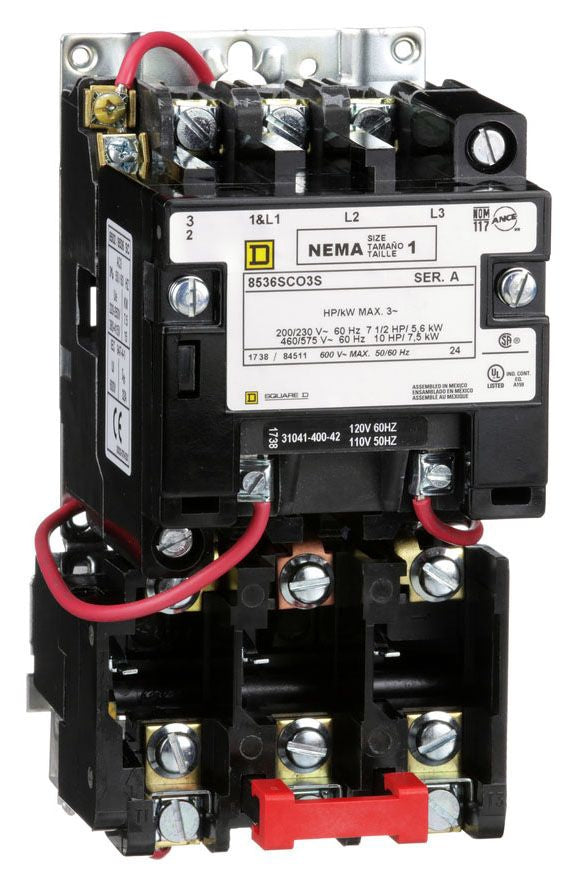

Square D 8536SCO3V02S Motor Starter 3 pole 3 phase 600V 27A 110V coil Class 8536

Product Description:
The Square D 8536SCO3V02S is a 600V 3-phase motor starter rated at 27A with 3 poles. It supports various horsepower ratings including 7½ hp at 208V and 240V, and 10 hp at 480V. This unit includes a 110V coil and requires separate heater packs for operation. It is designed for reliable motor control in industrial applications.

Key Features:
✔ Part Number: 8536SCO3V02S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SCG
✔ Voltage: 600
✔ Amperage: 27
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 120 VAC
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 1
✔ Nema Starter Size: 1
✔ UPC: 785901845119
✔ GTIN: 00785901845119
✔ Country of Origin: Mexico
✔ Dimensions: 4.53 in x 6.77 in
✔ Weight: 1.95 lb
✔ Certification: CSA, UL Listed
