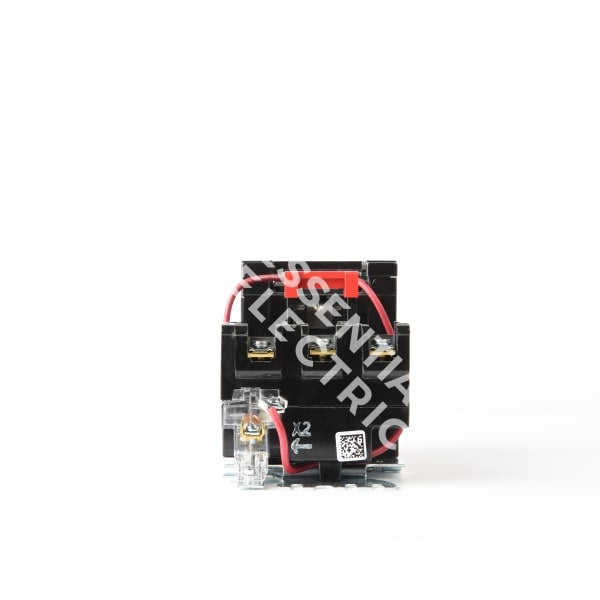

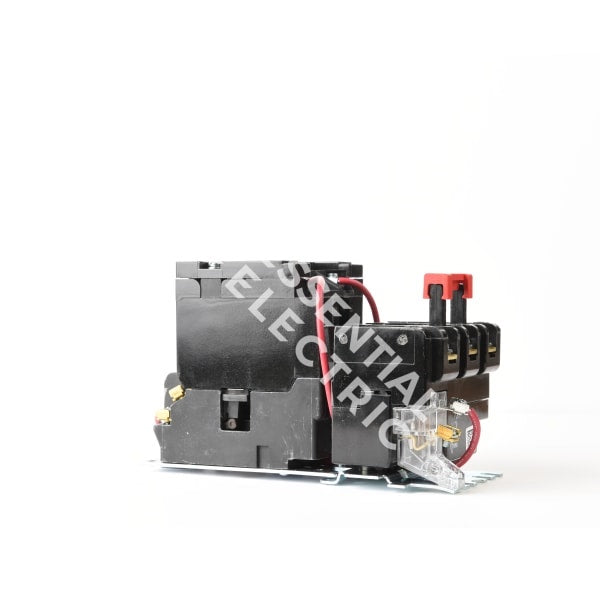

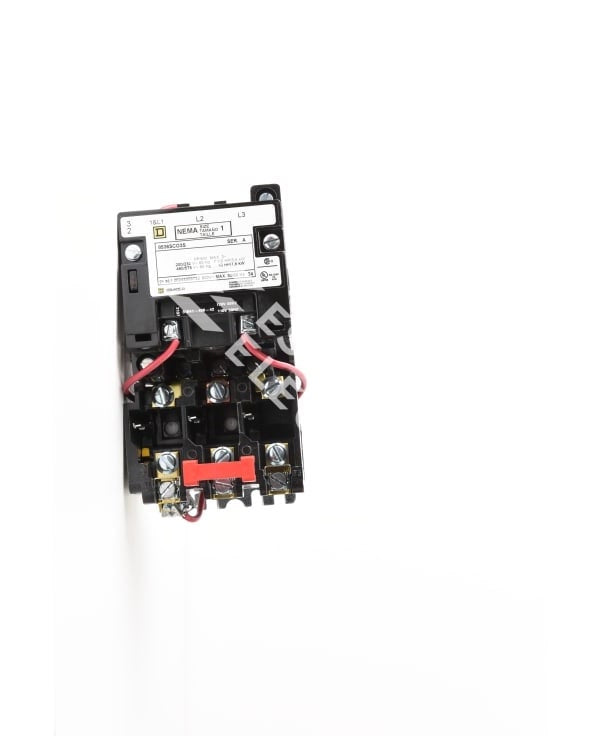

Square D 8536SCO3V08 Motor Starter | 600V 27A 3P 3 Phase Class 8536

Product Description:
The Square D 8536SCO3V08 is a Class 8536 motor starter designed for 600V 3-phase applications with a 27A rating. It supports various horsepower ratings including 7-1/2 HP at 208V/240V and 10 HP at 480V. This nonreversing starter is built for reliable motor control in industrial settings. Heater packs are sold separately for thermal overload protection.

Key Features:
✔ Part Number: 8536SCO3V08
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SCG
✔ Voltage: 600
✔ Amperage: 27
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 208 VAC
✔ Nema Rating: 1
✔ Nema Starter Size: 1
✔ UPC: 785901767916
✔ GTIN: 00785901767916
✔ Country of Origin: Mexico
✔ Dimensions: 4.53 in x 6.77 in
✔ Weight: 1.82
✔ Certification: CSA, UL Listed
