Product Description:

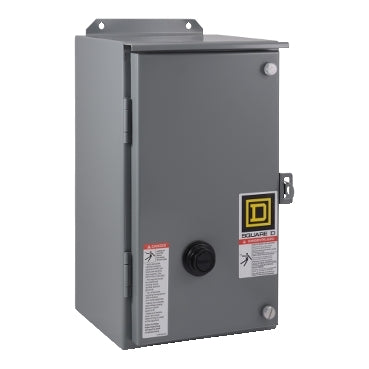

The Square D 8536SDA1V02S is a 600V 3-phase motor starter with a 45 Amp rating and 3-pole design. It supports horsepower ratings of 10 hp at 208V, 15 hp at 240V, and 25 hp at 480V. This nonreversing starter includes a 110V coil but requires separate heater packs.
Key Features:
✔ Part Number: 8536SDA1V02S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SDA
✔ Voltage: 600V
✔ Amperage: 45 Amp
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 10 hp, HP @ 3 Phase - 240V 15 hp, HP @ 3 Phase - 480V 25 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 120 VAC
✔ Coil Voltage Minimum: 110V
✔ Nema Rating: 2
✔ Nema Starter Size: 2
✔ Enclosure: 12/3R
✔ UPC: 785901455301
✔ GTIN: 00785901455301
✔ Country of Origin: Mexico
✔ Dimensions: 9.28 in x 16 in
✔ Weight: 9.75 lb
✔ Certification: CSA, UL Listed
