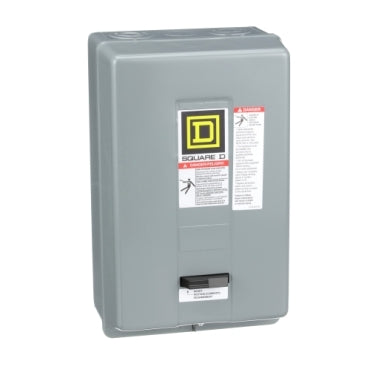

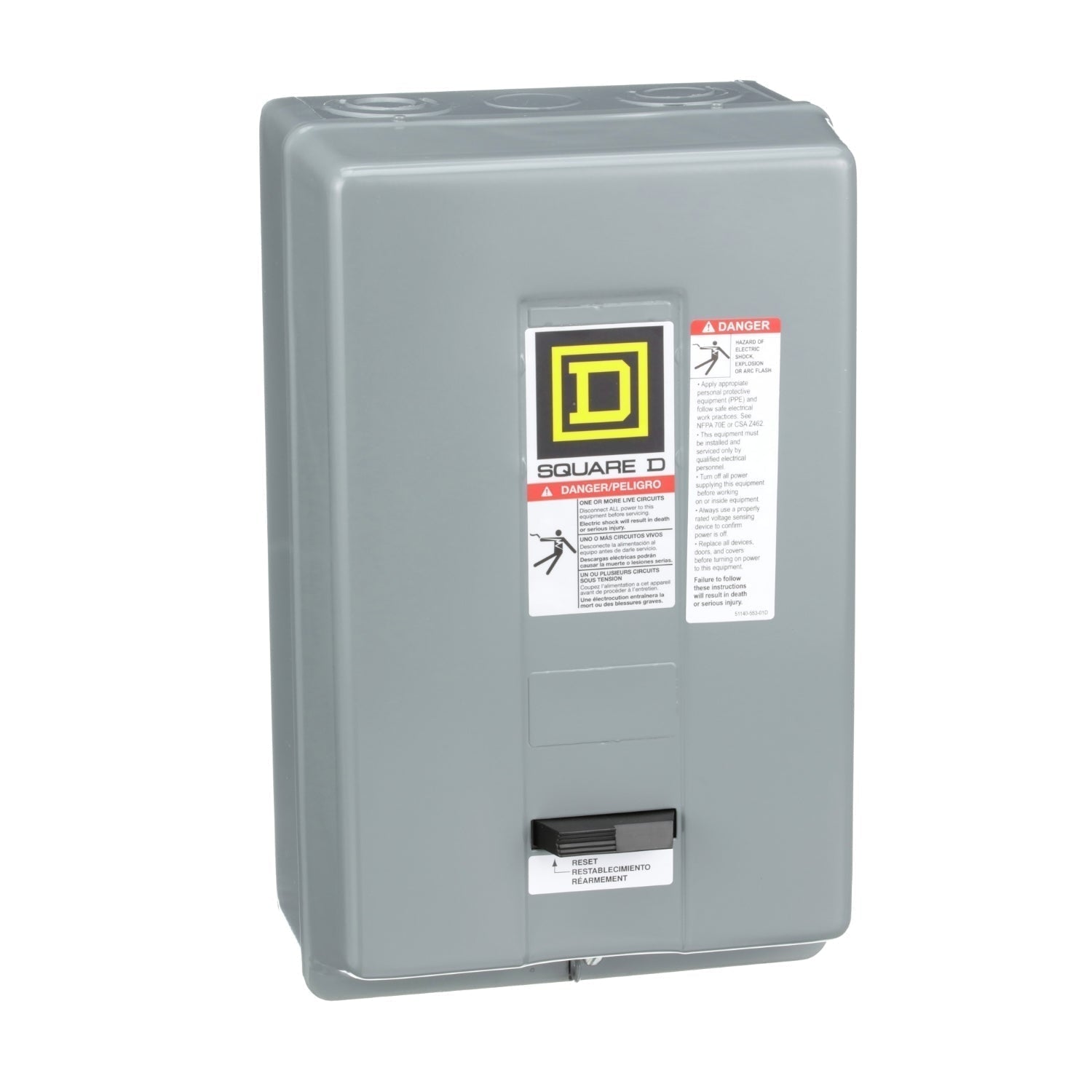

Square D 8536SDG1V02H30S Motor Starter 3 pole 3 phase 600V 45A 110V coil Class 8536

Product Description:
The Square D 8536SDG1V02H30S is a Class 8536 motor starter designed for 3-phase applications up to 600V and 45A. It supports multiple horsepower ratings including 10 HP at 208V, 15 HP at 240V, and 25 HP at 480V. This nonreversing starter includes a 110V coil and one normally open auxiliary contact. Heater packs are sold separately.

Key Features:
✔ Part Number: 8536SDG1V02H30S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SDG
✔ Voltage: 600
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: 1NO
✔ Coil Voltage Maximum: 120 VAC
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 2
✔ Nema Starter Size: 2
✔ Enclosure: 1
✔ UPC: 785901807087
✔ GTIN: 00785901807087
✔ Country of Origin: Mexico
✔ Dimensions: 6.3 in x 12.69 in
✔ Weight: 6.07
✔ Certification: CSA, UL Listed
