Product Description:

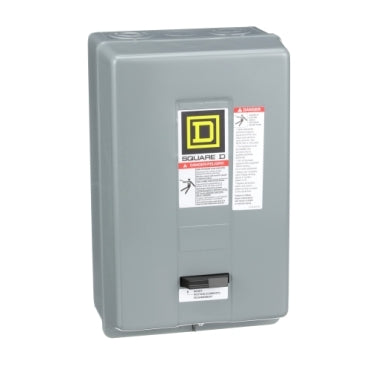

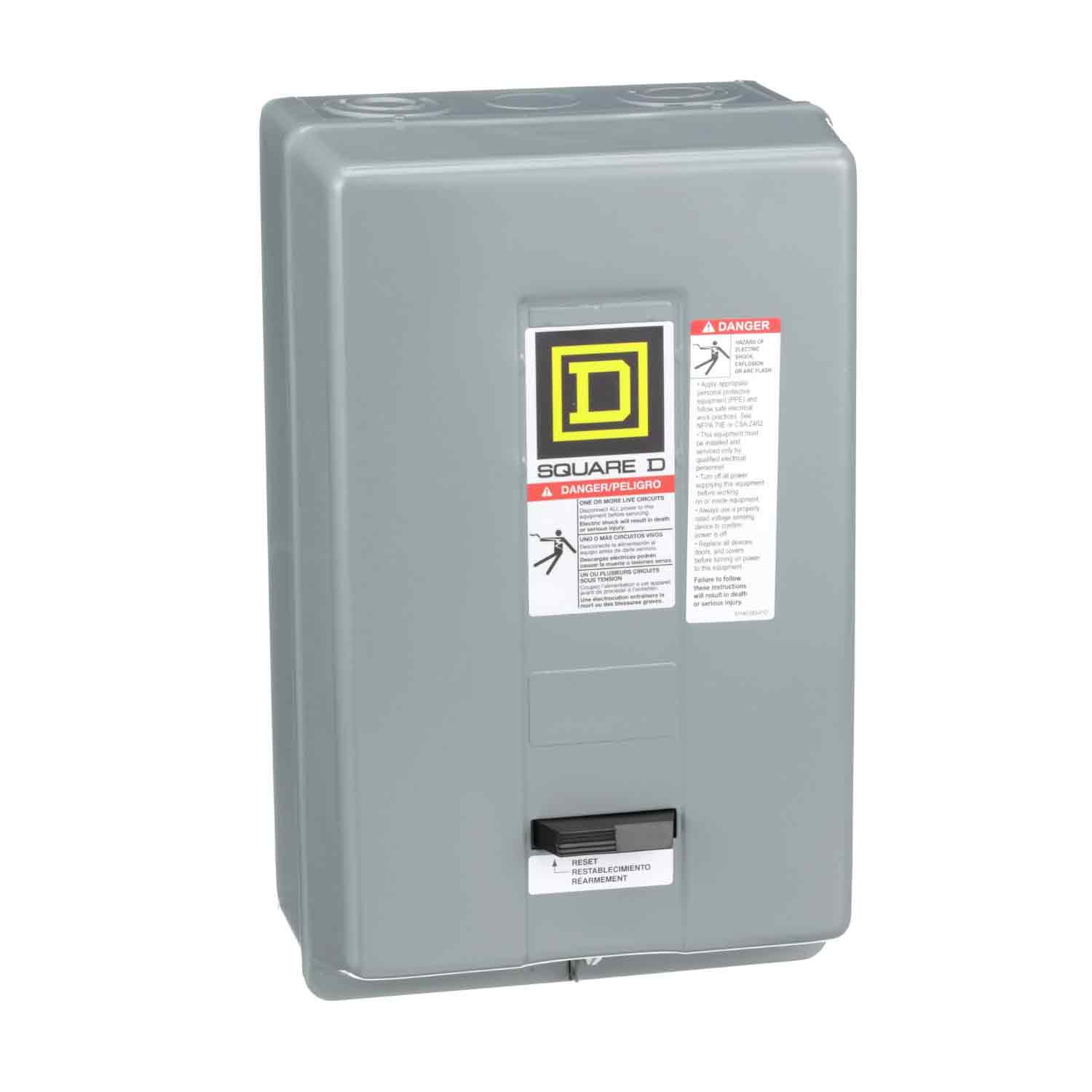

The Square D 8536SDG1V03 is a 600V 3-phase motor starter with a 45 Amp rating and 3 poles. It supports horsepower ratings of 10 hp at 208V, 15 hp at 240V, and 25 hp at 480V. This nonreversing starter includes a 220V coil, though heater packs must be purchased separately. It is CSA and UL listed for safety compliance.
Key Features:
✔ Part Number: 8536SDG1V03
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SDG
✔ Voltage: 600V
✔ Amperage: 45 Amp
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 10 hp, HP @ 3 Phase - 240V 15 hp, HP @ 3 Phase - 480V 25 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 240 VAC
✔ Coil Voltage Minimum: 220V
✔ Nema Rating: 2
✔ Nema Starter Size: 2
✔ Enclosure: 1
✔ UPC: 785901881704
✔ GTIN: 00785901881704
✔ Country of Origin: Mexico
✔ Dimensions: 7.81 in x 12.69 in
✔ Weight: 5.92
✔ Certification: CSA, UL Listed
