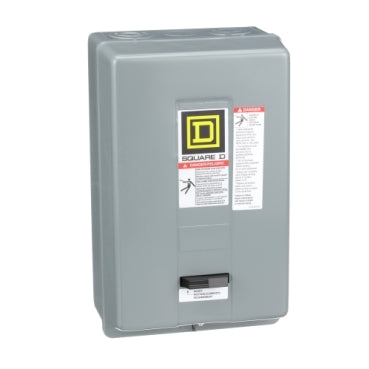

Square D 8536SDG1V08 Motor Starter | 600V 3 Phase 45A 3 Pole Class 8536

Product Description:
The Square D 8536SDG1V08 is a Class 8536 motor starter designed for 3-phase applications up to 600V. It supports various horsepower ratings, including 10 hp at 208V, 15 hp at 240V, and 25 hp at 480V. This nonreversing starter is built for reliable motor control in industrial settings. Heater packs are sold separately for thermal overload protection.

Key Features:
✔ Part Number: 8536SDG1V08
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SDG
✔ Voltage: 600
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 208 VAC
✔ Nema Rating: 2
✔ Nema Starter Size: 2
✔ Enclosure: 1
✔ UPC: 785901784227
✔ GTIN: 00785901784227
✔ Country of Origin: Mexico
✔ Dimensions: 7.81 in x 12.69 in
✔ Weight: 6.43
✔ Certification: CSA, UL Listed
