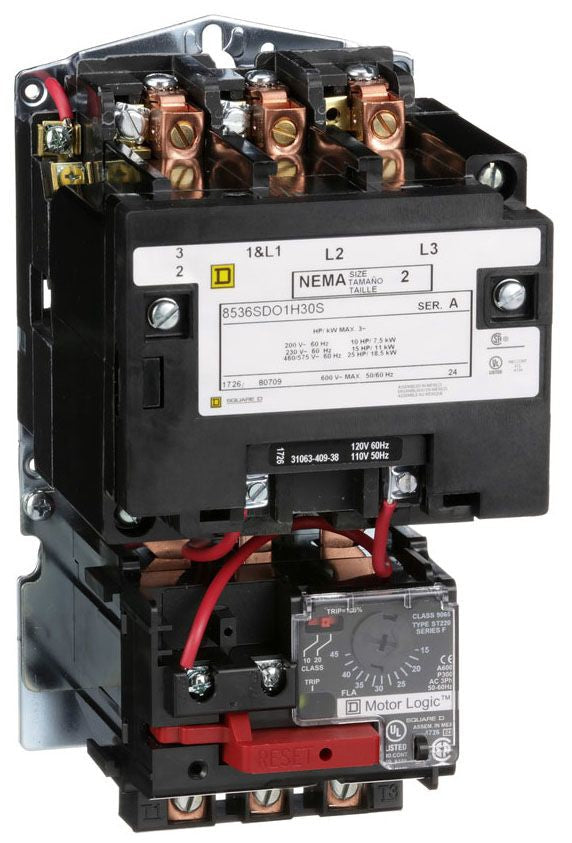

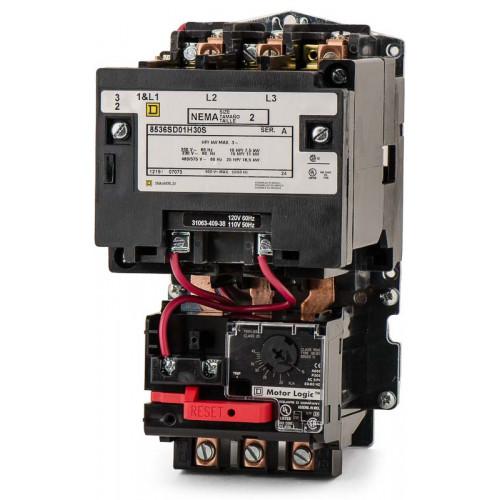

Square D 8536SDO1V02H30S Motor Starter 3 pole 3 phase 600V 45A 110V coil Class 8536

Product Description:
The Square D 8536SDO1V02H30S is a 3-phase motor starter rated for 600V and 45A. It supports multiple horsepower ratings including 10 HP at 208V, 15 HP at 240V, and 25 HP at 480V. This nonreversing starter includes a 110V coil and one normally open auxiliary contact. Heater packs are sold separately.

Key Features:
✔ Part Number: 8536SDO1V02H30S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SDO
✔ Voltage: 600
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: 1NO
✔ Coil Voltage Maximum: 120 VAC
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 2
✔ Nema Starter Size: 2
✔ UPC: 785901807094
✔ GTIN: 00785901807094
✔ Country of Origin: Mexico
✔ Dimensions: 5 in x 7.9 in
✔ Weight: 3.17
✔ Certification: CSA, UL Listed
