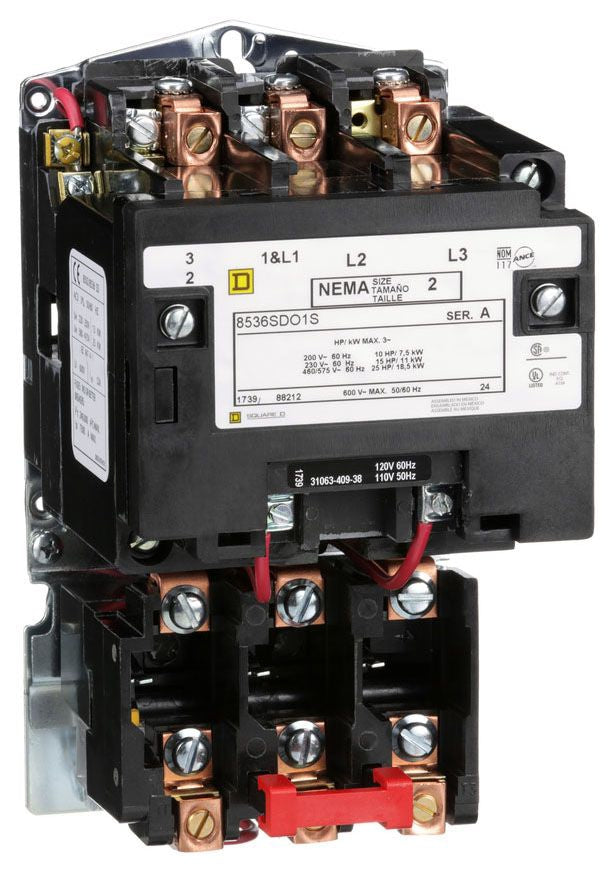

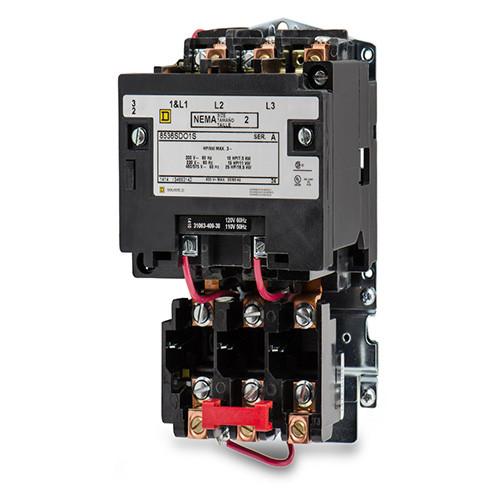

Square D 8536SDO1V02S Motor Starter 3 pole 3 phase 600V 45A 110V coil Class 8536

Product Description:
The Square D 8536SDO1V02S is a 600V 3-phase motor starter rated at 45A with 3 poles. It supports horsepower ratings of 10 hp at 208V, 15 hp at 240V, and 25 hp at 480V. This unit includes a 110V coil and requires separate heater packs for operation.

Key Features:
✔ Part Number: 8536SDO1V02S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SDO
✔ Voltage: 600
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 120 VAC
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 2
✔ Nema Starter Size: 2
✔ UPC: 785901882121
✔ GTIN: 00785901882121
✔ Country of Origin: Mexico
✔ Dimensions: 4.31 in x 7.81 in
✔ Weight: 3.04 lb
✔ Certification: CSA, UL Listed
