Product Description:

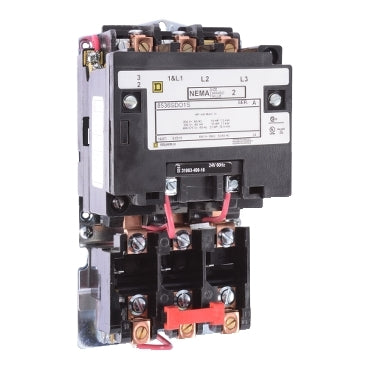

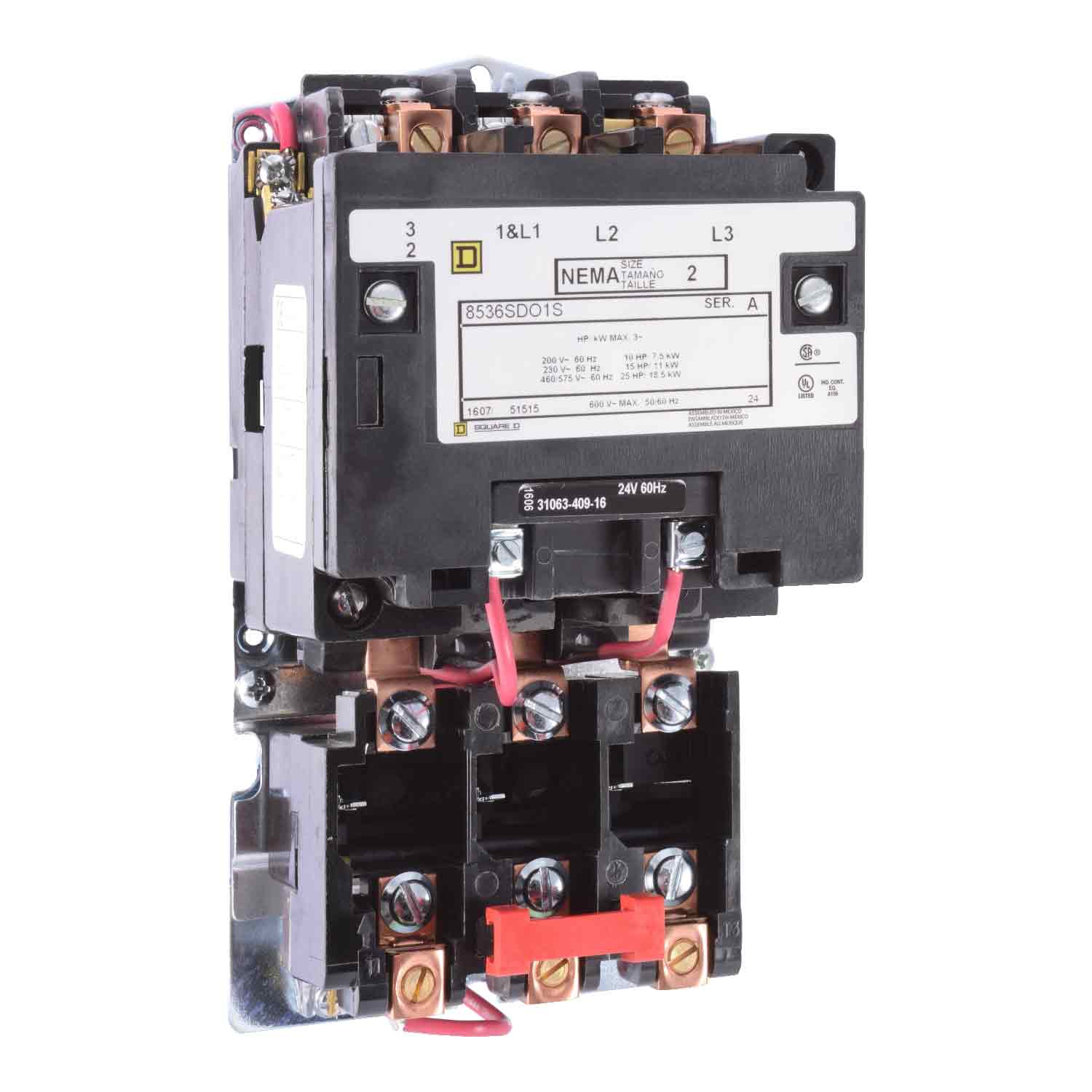

The Square D 8536SDO1V03 is a 600V 3-phase motor starter with a 45 Amp rating and 3 poles. It features horsepower ratings of 10 hp at 208V, 15 hp at 240V, and 25 hp at 480V, and includes a 220V coil. Heater packs are sold separately for customization.
Key Features:
✔ Part Number: 8536SDO1V03
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SDO
✔ Voltage: 600V
✔ Amperage: 45 Amp
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 10 hp, HP @ 3 Phase - 240V 15 hp, HP @ 3 Phase - 480V 25 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 240 VAC
✔ Coil Voltage Minimum: 220V
✔ Nema Rating: 2
✔ Nema Starter Size: 2
✔ UPC: 785901882022
✔ GTIN: 00785901882022
✔ Country of Origin: Mexico
✔ Dimensions: 4.31 in x 7.81 in
✔ Weight: 3.09
✔ Certification: CSA, UL Listed
