Product Description:

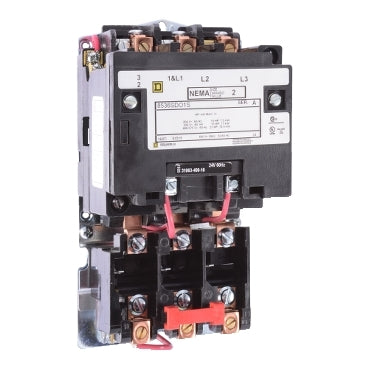

The Square D 8536SDO1V06 is a 600V 3-phase motor starter with a 45 Amp rating and 3 poles. It offers horsepower ratings of 10 hp at 208V, 15 hp at 240V, and 25 hp at 480V. This nonreversing starter includes a 440V coil but requires separate heater packs. It is CSA and UL Listed for safety compliance.
Key Features:
✔ Part Number: 8536SDO1V06
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SDO
✔ Voltage: 600
✔ Amperage: 45 Amp
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 480 VAC
✔ Coil Voltage Minimum: 440
✔ Nema Rating: 2
✔ Nema Starter Size: 2
✔ UPC: 785901882039
✔ GTIN: 00785901882039
✔ Country of Origin: Mexico
✔ Dimensions: 4.31 in x 7.81 in
✔ Weight: 3.06
✔ Certification: CSA, UL Listed
