Product Description:

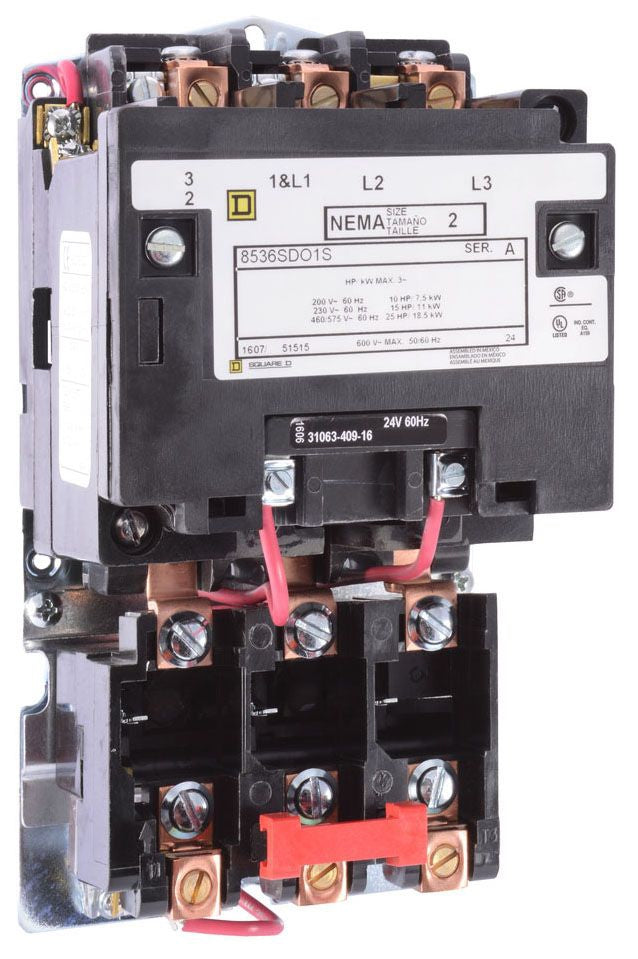

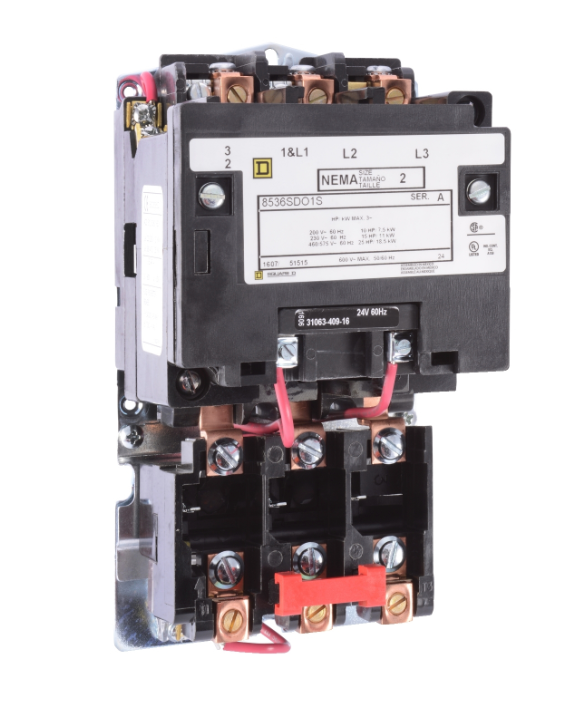

The Square D 8536SDO1V08 is a 600V 3-phase motor starter with a 45 Amp rating and 3 poles. It supports horsepower ratings of 10 hp at 208V, 15 hp at 240V, and 25 hp at 480V. This nonreversing starter requires separate heater packs and is designed for industrial motor control applications.
Key Features:
✔ Part Number: 8536SDO1V08
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SDO
✔ Voltage: 600
✔ Amperage: 45 Amp
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 208 VAC
✔ Nema Rating: 2
✔ Nema Starter Size: 2
✔ UPC: 785901784517
✔ GTIN: 00785901784517
✔ Country of Origin: Mexico
✔ Dimensions: 4.31 in x 7.81 in
✔ Weight: 3.06
✔ Certification: CSA, UL Listed
