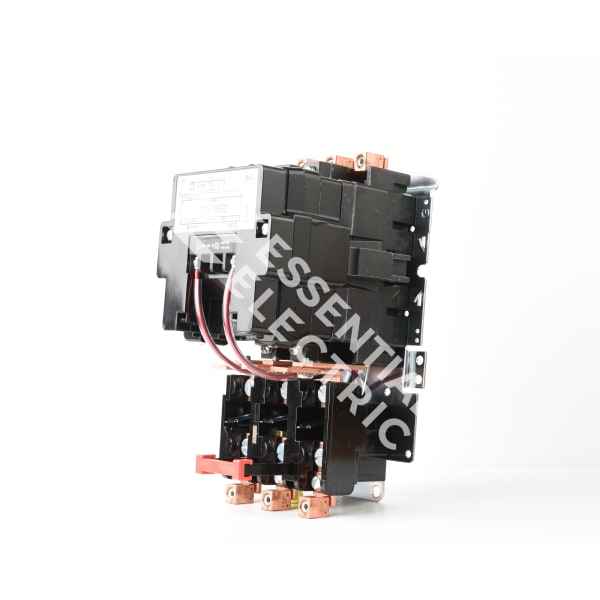

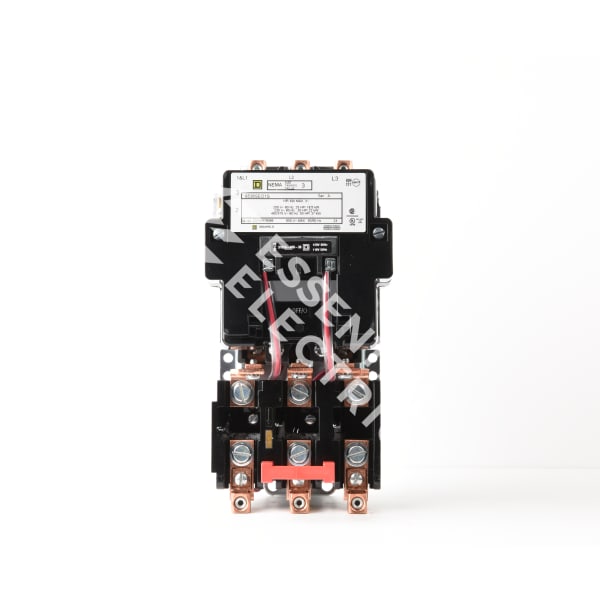

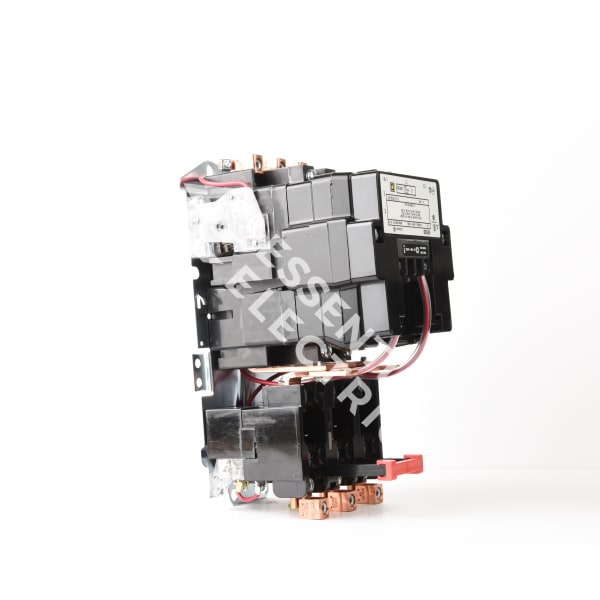

Square D 8536SEO1V02H30S Motor Starter 3 pole 3 phase 600V 90A 110V coil Class 8536

Product Description:
The Square D 8536SEO1V02H30S is a Class 8536 motor starter designed for 600V 3-phase applications with a 90A rating. It supports multiple horsepower ratings including 25 HP at 208V, 30 HP at 240V, and 50 HP at 480V. This nonreversing starter includes a 110V coil and one normally open auxiliary contact. Heater packs are sold separately.

Key Features:
✔ Part Number: 8536SEO1V02H30S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SEO
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 25 hp HP @ 3 Phase - 240V 30 hp HP @ 3 Phase - 480V 50 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: 1NO
✔ Coil Voltage Maximum: 120 VAC
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 3
✔ Nema Starter Size: 3
✔ UPC: 785901807254
✔ GTIN: 00785901807254
✔ Country of Origin: Mexico
✔ Dimensions: 6.5 in x 11 in
✔ Weight: 7.21
✔ Certification: CSA, UL Listed
