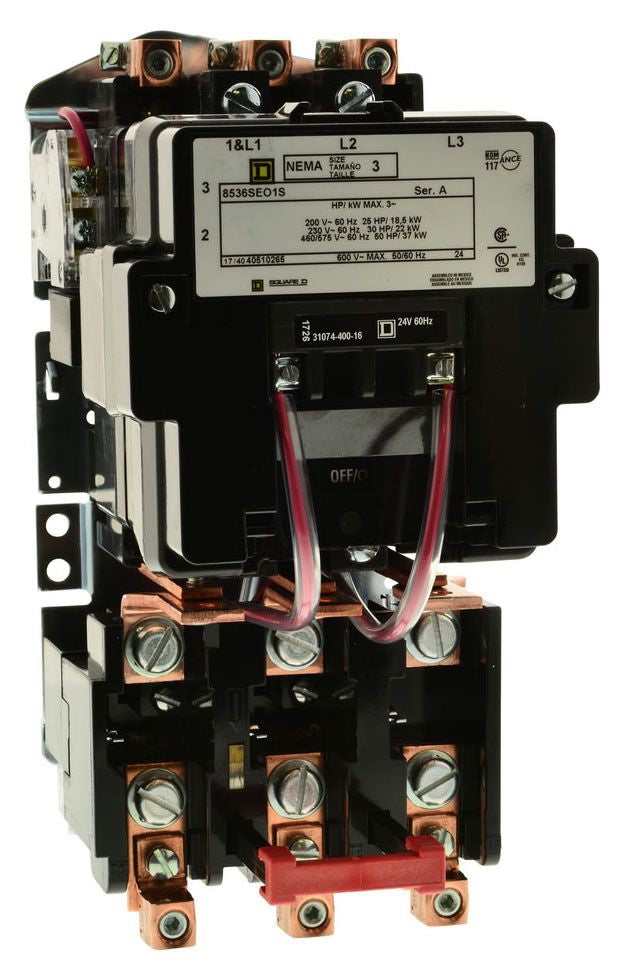

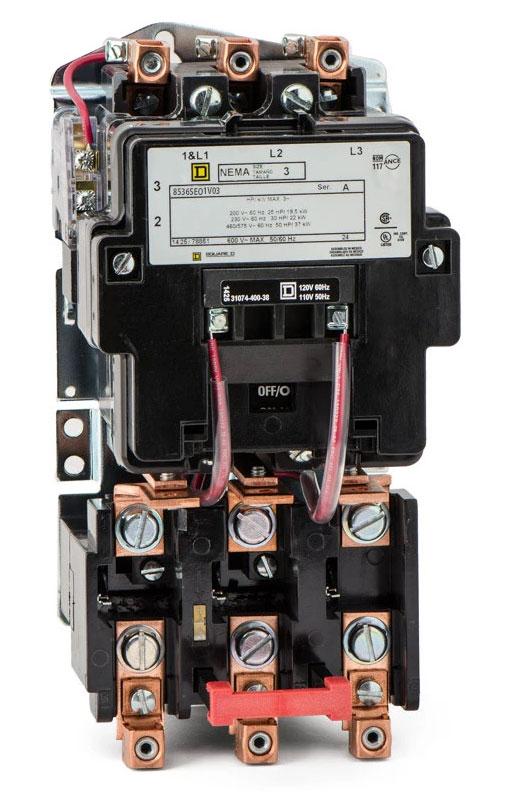

Square D 8536SEO1V03 Motor Starter 3 pole 3 phase 600V 90A 220V coil Class 8536

Product Description:
The Square D 8536SEO1V03 is a Class 8536 motor starter designed for 3-phase applications with a voltage rating of 600V and amperage of 90A. It supports horsepower ratings up to 50 hp at 480V and comes equipped with a 220V coil. This nonreversing starter is built for reliable motor control in industrial settings. Heater packs are sold separately for customized thermal protection.

Key Features:
✔ Part Number: 8536SEO1V03
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SEO
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 25 hp HP @ 3 Phase - 240V 30 hp HP @ 3 Phase - 480V 50 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 240 VAC
✔ Coil Voltage Minimum: 220
✔ Nema Rating: 3
✔ Nema Starter Size: 3
✔ UPC: 785901788430
✔ GTIN: 00785901788430
✔ Country of Origin: Mexico
✔ Dimensions: 5.47 in x 11.09 in
✔ Weight: 7.14
✔ Certification: CSA, UL Listed
