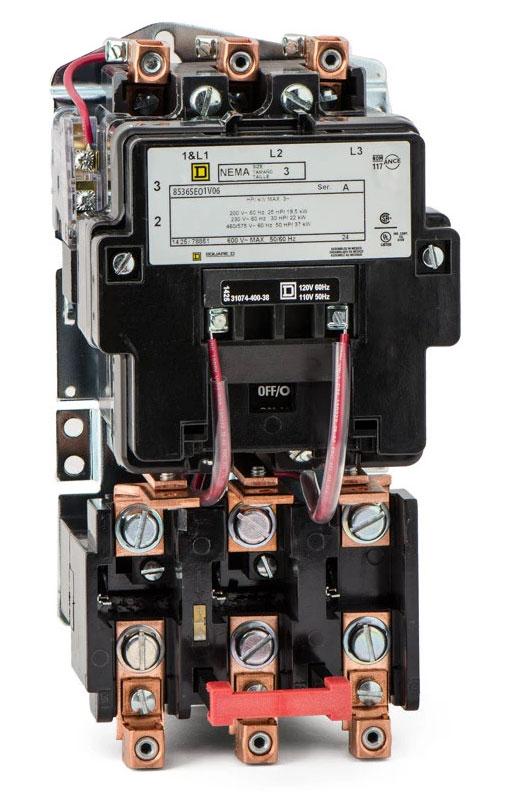

Square D 8536SEO1V06 Motor Starter 3 pole 3 phase 600V 90A 440V coil Class 8536

Product Description:
The Square D 8536SEO1V06 is a Class 8536 motor starter designed for 3-phase applications up to 600V and 90A.
It supports horsepower ratings of 25 hp at 208V, 30 hp at 240V, and 50 hp at 480V.
This nonreversing starter includes a 440V coil and requires separate heater packs for operation.
It is CSA and UL listed for reliable performance in industrial settings.

Key Features:
✔ Part Number: 8536SEO1V06
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SEO
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 25 hp HP @ 3 Phase - 240V 30 hp HP @ 3 Phase - 480V 50 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 480 VAC
✔ Coil Voltage Minimum: 440
✔ Nema Rating: 3
✔ Nema Starter Size: 3
✔ UPC: 785901788508
✔ GTIN: 00785901788508
✔ Country of Origin: Mexico
✔ Dimensions: 5.47 in x 11.09 in
✔ Weight: 7.16
✔ Certification: CSA, UL Listed
