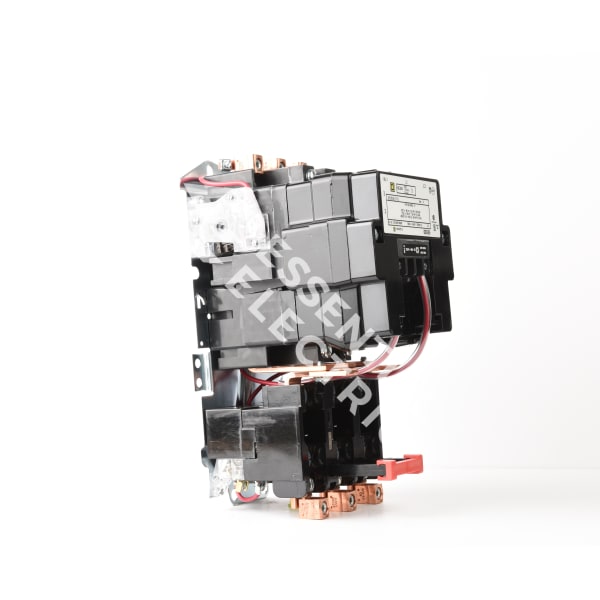

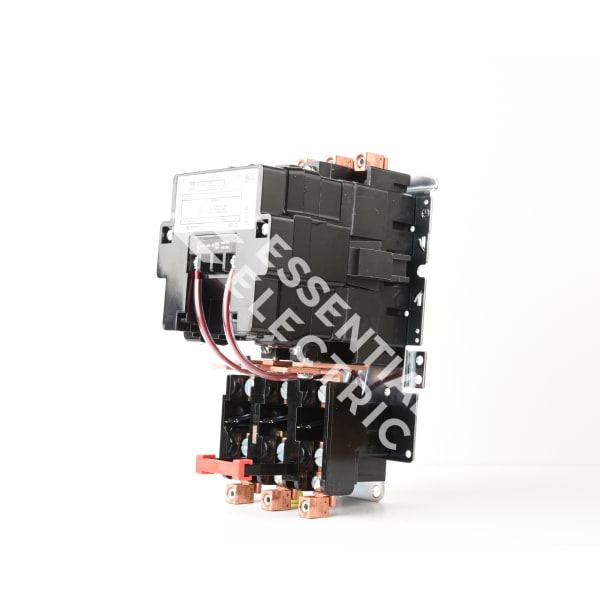

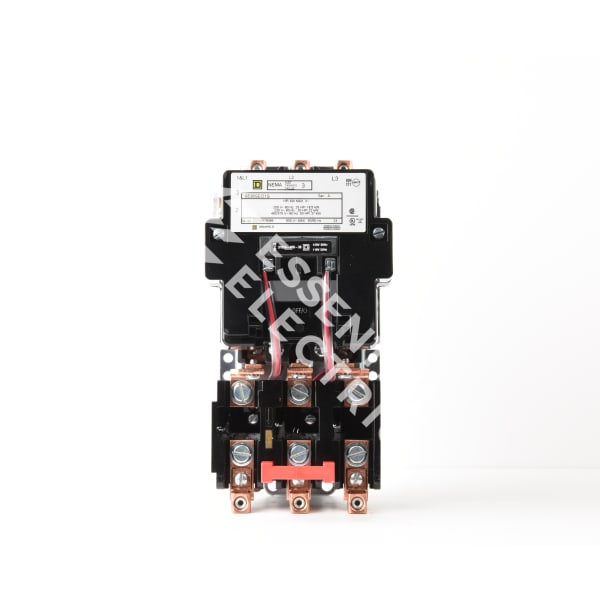

Square D 8536SEO1V08 Motor Starter | 600V 90A 3P 3 Phase Class 8536

Product Description:
The Square D 8536SEO1V08 is a Class 8536 motor starter designed for 600V 3-phase applications with a 90A rating. It supports various horsepower ratings including 25 hp at 208V, 30 hp at 240V, and 50 hp at 480V. This nonreversing starter is built for reliable motor control in industrial settings. Heater packs are sold separately for customized thermal protection.

Key Features:
✔ Part Number: 8536SEO1V08
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SEO
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 25 hp HP @ 3 Phase - 240V 30 hp HP @ 3 Phase - 480V 50 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 208 VAC
✔ Nema Rating: 3
✔ Nema Starter Size: 3
✔ UPC: 785901788331
✔ GTIN: 00785901788331
✔ Country of Origin: Mexico
✔ Dimensions: 5.47 in x 11.09 in
✔ Weight: 7.09
✔ Certification: CSA, UL Listed
