Square D 8536SFG1V08 Motor Starter | 3 pole 6V 135A Class 8536

Product Description:

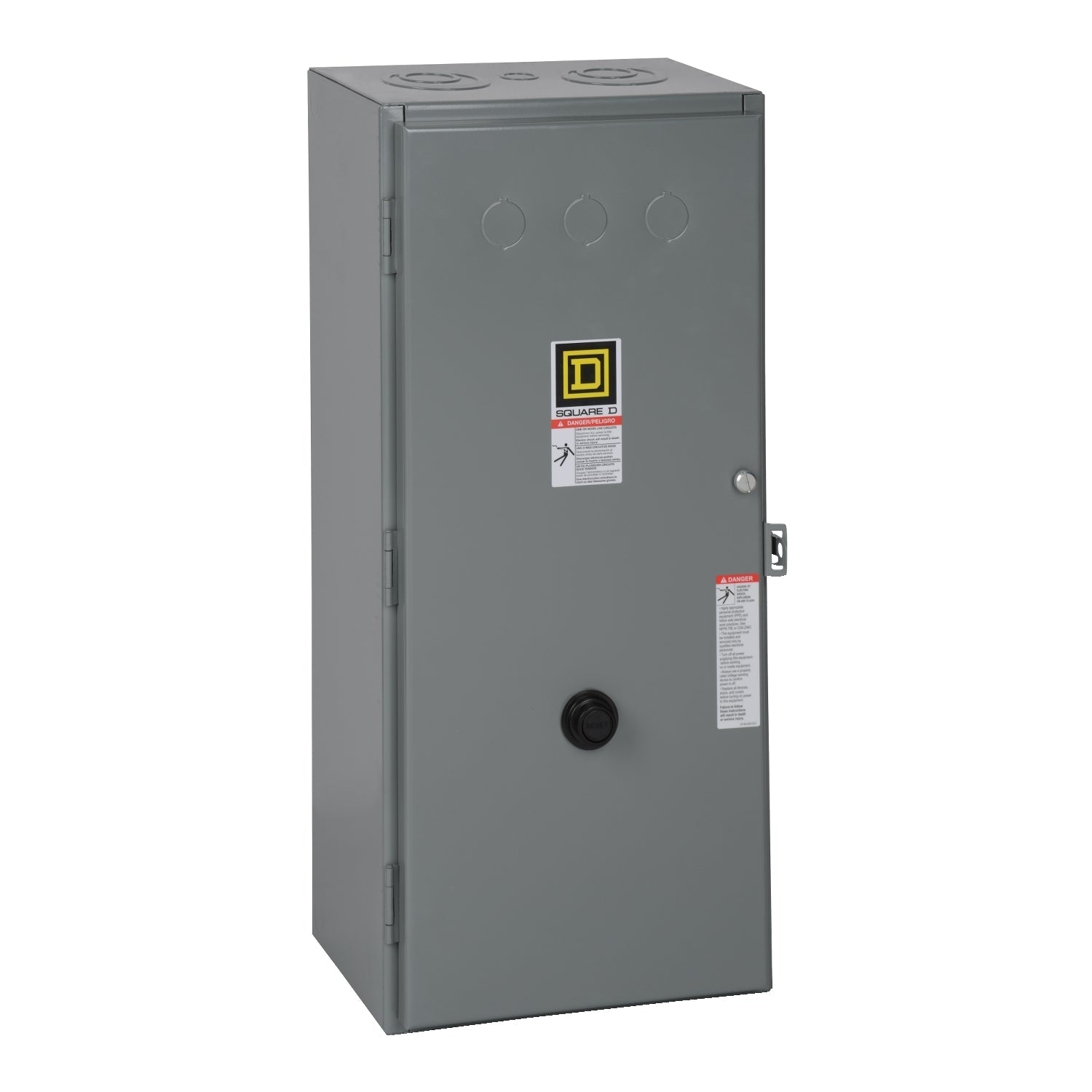

The Square D 8536SFG1V08 is a Class 8536 motor starter with a 6V 135A 3-pole design. It supports horsepower ratings of 40 hp at 208V, 50 hp at 240V, and 100 hp at 480V in 3-phase configurations. This nonreversing starter requires separate heater packs for operation. It is built for reliable motor control in industrial applications.

Key Features:
✔ Part Number: 8536SFG1V08
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SFG
✔ Voltage: 6
✔ Amperage: 135
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 208
✔ UPC: 785901832201
✔ GTIN: 00785901832201
✔ Dimensions: Width 11.25 in (285.75 mm) x Depth 9.00 in (228.60 mm)
✔ Weight: 10.55
