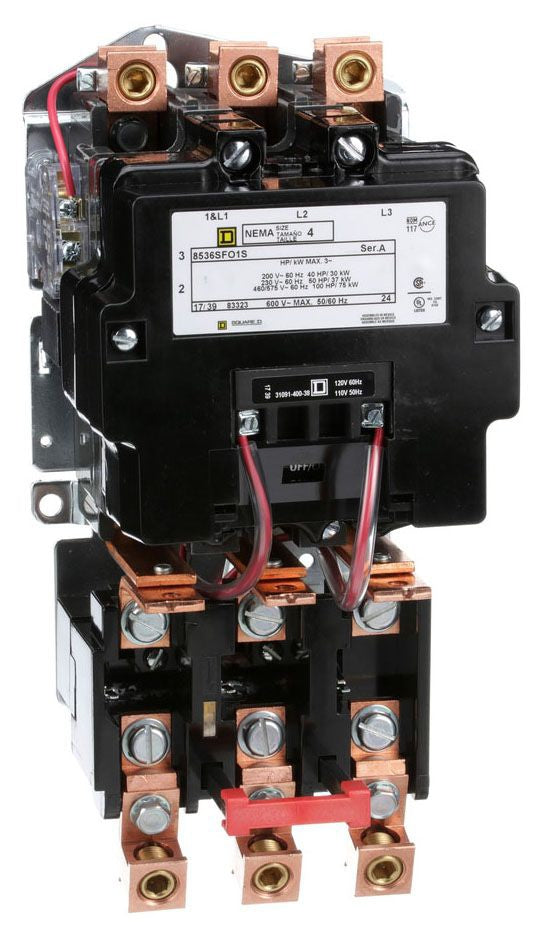

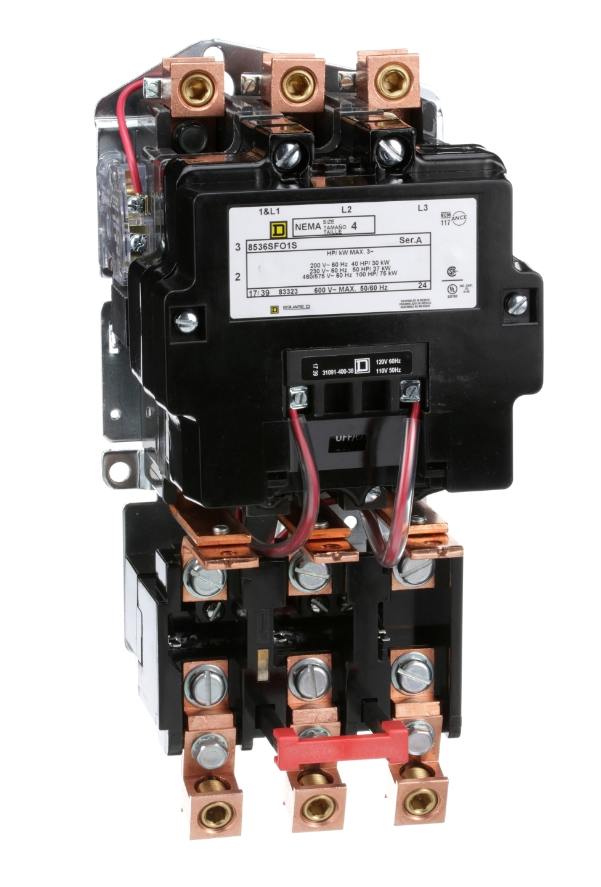

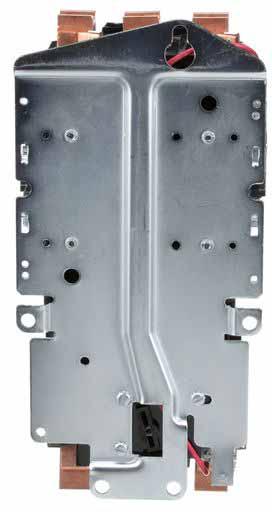

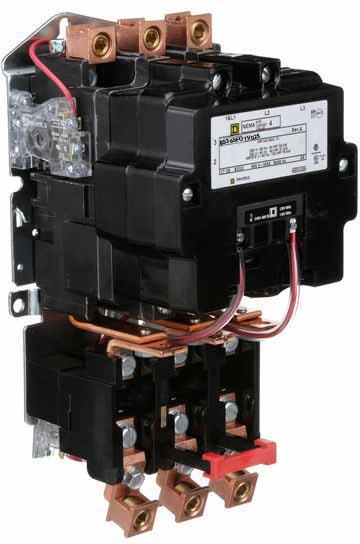

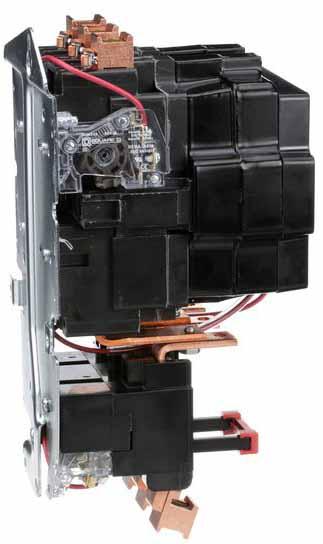

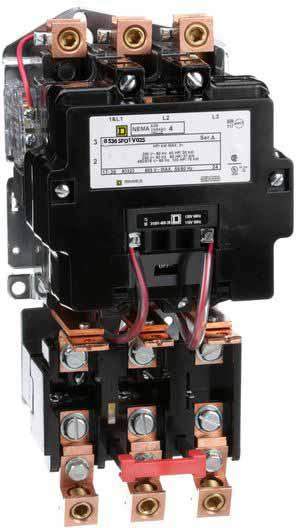

Square D 8536SFO1V02S Motor Starter 3 pole 3 phase 600V 135A 110V coil Class 8536

Product Description:
The Square D 8536SFO1V02S is a Class 8536 motor starter designed for 3-phase applications up to 600V and 135A. It supports horsepower ratings of 40 hp at 208V, 50 hp at 240V, and 100 hp at 480V. This nonreversing starter includes a 110V coil and meets NEMA 4 standards for durability. Heater packs are sold separately.

Key Features:
✔ Part Number: 8536SFO1V02S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SFO
✔ Voltage: 600
✔ Amperage: 135
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 120 VAC
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 4
✔ Nema Starter Size: 4
✔ UPC: 785901833239
✔ GTIN: 00785901833239
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 12.88 in
✔ Weight: 9.57
✔ Certification: CSA, UL Listed
