Product Description:

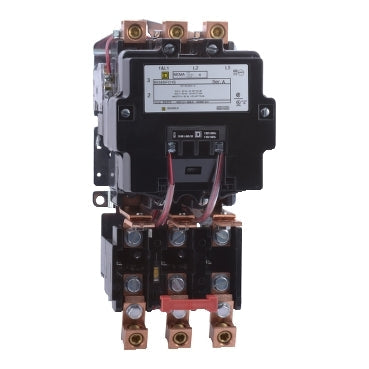

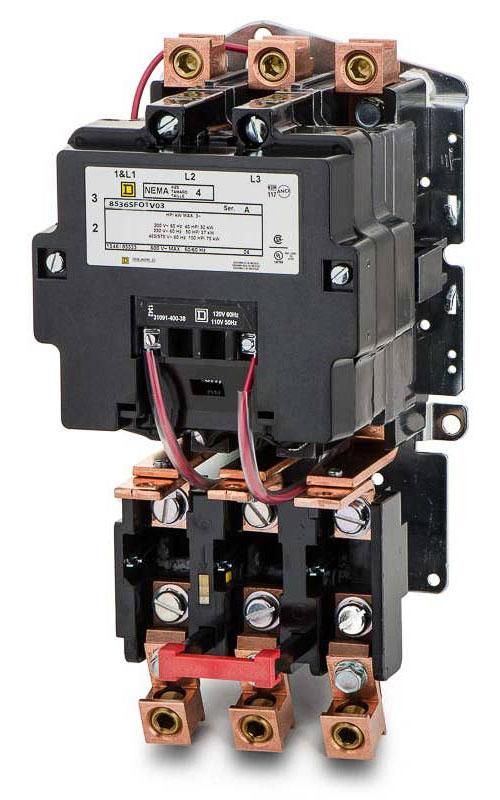

The Square D 8536SFO1V03 is a 600V 3-phase motor starter with a 135 Amp rating and 3 poles. It supports horsepower ratings of 40 hp at 208V, 50 hp at 240V, and 100 hp at 480V. This nonreversing starter includes a 220V coil but requires separate heater packs. It is CSA and UL Listed for safety compliance.
Key Features:
✔ Part Number: 8536SFO1V03
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8536
✔ Type: SFO
✔ Voltage: 600
✔ Amperage: 135 Amp
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
✔ Configuration: Nonreversing
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 240 VAC
✔ Coil Voltage Minimum: 220
✔ Nema Rating: 4
✔ Nema Starter Size: 4
✔ UPC: 785901832508
✔ GTIN: 00785901832508
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 12.88 in
✔ Weight: 9.57
✔ Certification: CSA, UL Listed
