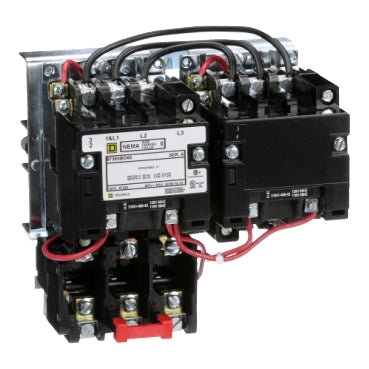

Square D 8736SBO4V02S Motor Starter 3 pole 3 phase 600V 18A 110V coil Class 8736

Product Description:
The Square D 8736SBO4V02S is a Class 8736 motor starter designed for 600V 3-phase applications with an 18A rating. It supports various horsepower ratings, including 3 HP at 208V/240V and 5 HP at 480V. This 3-pole starter comes equipped with a 110V coil for reliable operation. Heater packs are required and must be purchased separately.

Key Features:
✔ Part Number: 8736SBO4V02S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8736
✔ Type: SBO
✔ Voltage: 600
✔ Amperage: 18
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 110 VAC
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 0
✔ Nema Starter Size: 0
✔ UPC: 785901872634
✔ GTIN: 00785901872634
✔ Country of Origin: Mexico
✔ Dimensions: 7.13 in x 6.91 in
✔ Weight: 4.63
✔ Certification: CSA, UL Listed
