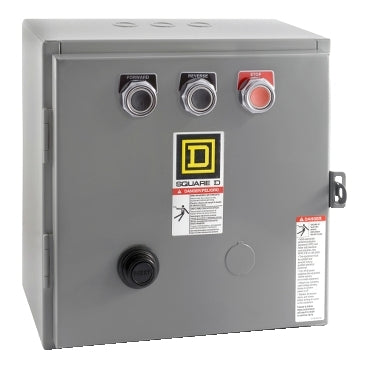

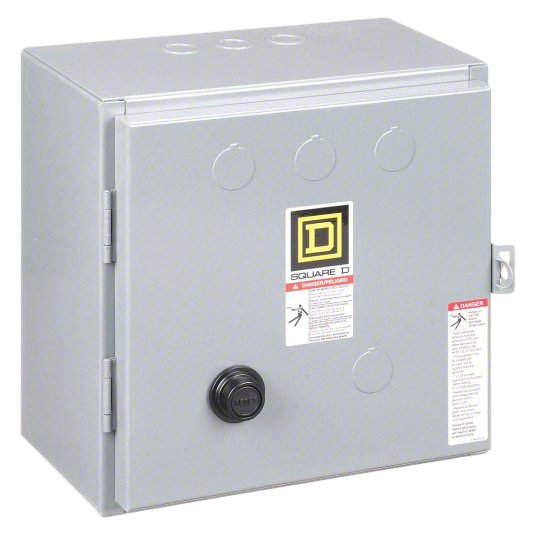

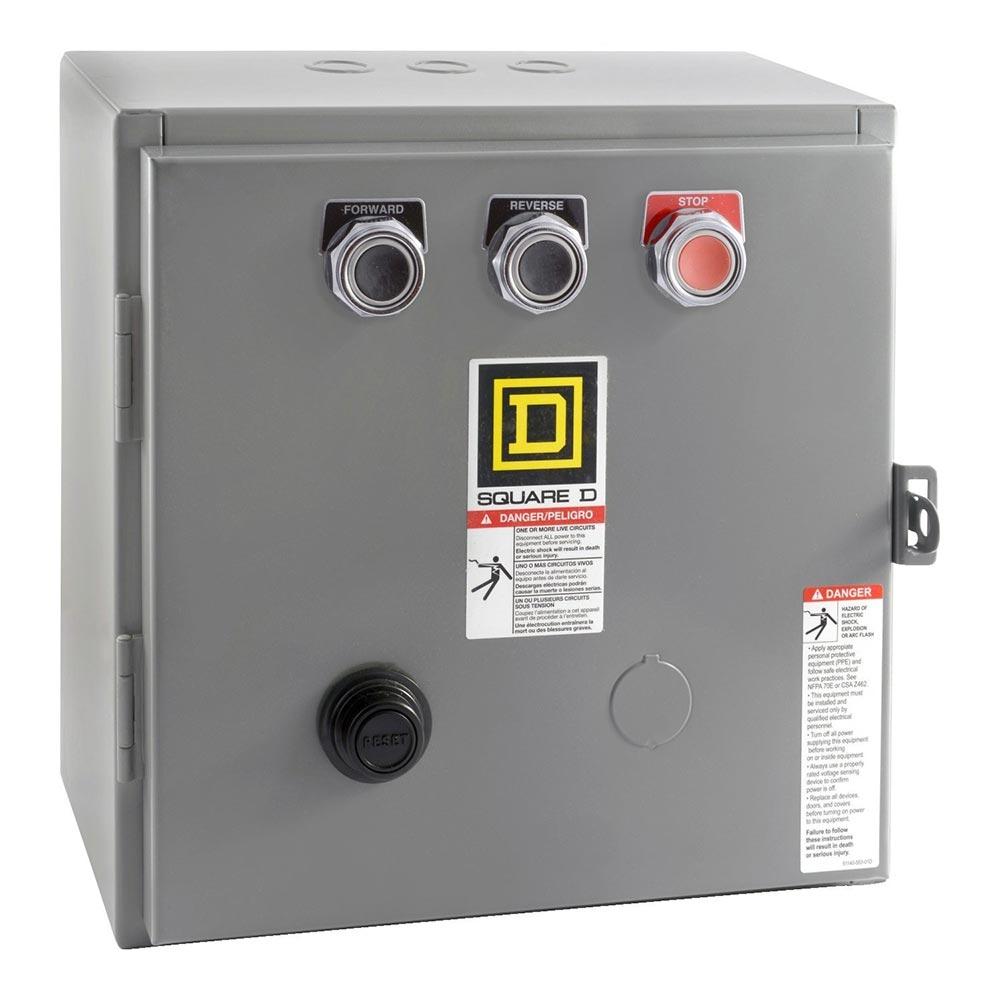

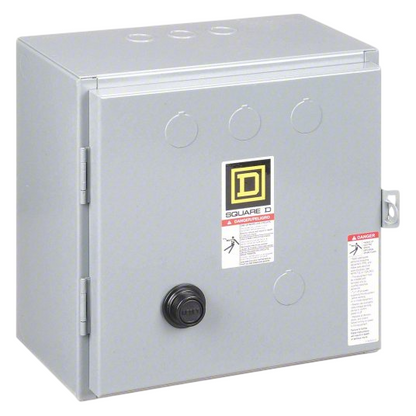

Square D 8736SCG8V02S Motor Starter 3 pole 3 phase 600V 27A 110V coil Class 8736

Product Description:
The Square D 8736SCG8V02S is a Class 8736 motor starter designed for 600V 3-phase applications with a 27A rating. It supports horsepower ratings of 7-1/2 hp at 208V/240V and 10 hp at 480V, and includes a 110V coil for operation. Heater packs are sold separately to complete the setup.

Key Features:
✔ Part Number: 8736SCG8V02S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8736
✔ Type: SCG
✔ Voltage: 600
✔ Amperage: 27
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 110 VAC
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 1
✔ Nema Starter Size: 1
✔ Enclosure: 1
✔ UPC: 785901874324
✔ GTIN: 00785901874324
✔ Country of Origin: Mexico
✔ Dimensions: 11.88 in x 11.88 in
✔ Weight: 9.7
✔ Certification: CSA, UL Listed
