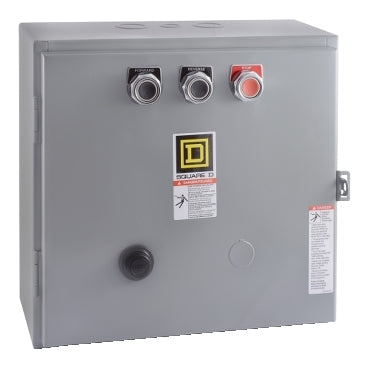

Square D 8736SDG2V02S Motor Starter | 3P 3PH 600V 45A 110V Class 8736
Square D 8736SDG2V02S Motor Starter | 3P 3PH 600V 45A 110V Class 8736
Price:
Sale
Sold out
Regular price
$1,801.29 USD
Regular price
$0.00 USD
Sale price
$1,801.29 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D 8736SDG2V02S is a 600V 3-phase motor starter with a 45A rating and 3 poles. It supports horsepower ratings of 10 hp at 208V, 15 hp at 240V, and 25 hp at 480V. This starter includes a 110V coil but requires separate heater packs.
Key Features:
✔ Part Number: 8736SDG2V02S
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Class 8736
✔ Type: SDG
✔ Voltage: 600
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
✔ Aux Contacts: No Auxiliary Contacts
✔ Coil Voltage Maximum: 120
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 2
✔ Enclosure: 1
✔ UPC: 785901455646
✔ GTIN: 00785901455646
✔ Country of Origin: Mexico
✔ Dimensions: Width 14.88 in (377.95 mm) x Depth 7.66 in (194.56 mm)
✔ Weight: 13.99
The Square D 8736SDG2V02S is a 600V 3-phase motor starter with a 45A rating and 3 poles. It supports horsepower ratings of 10 hp at 208V, 15 hp at 240V, and 25 hp at 480V. This starter includes a 110V coil but requires separate heater packs.
