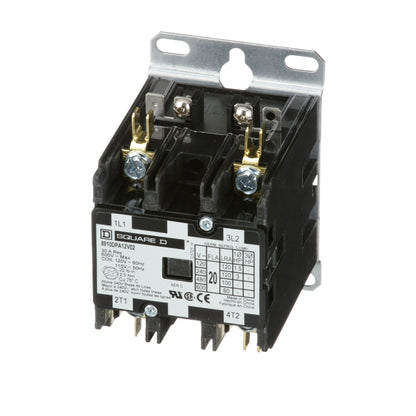

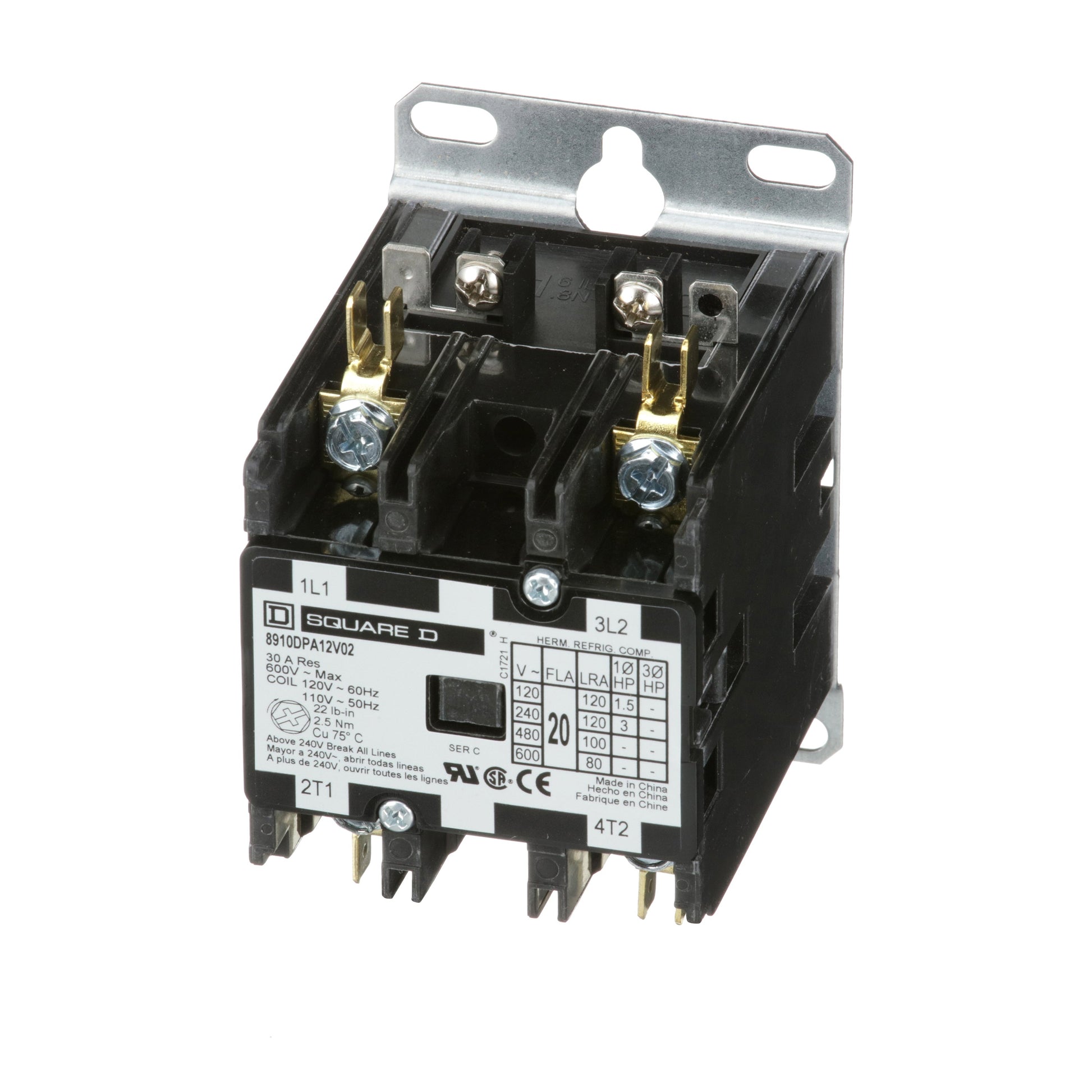

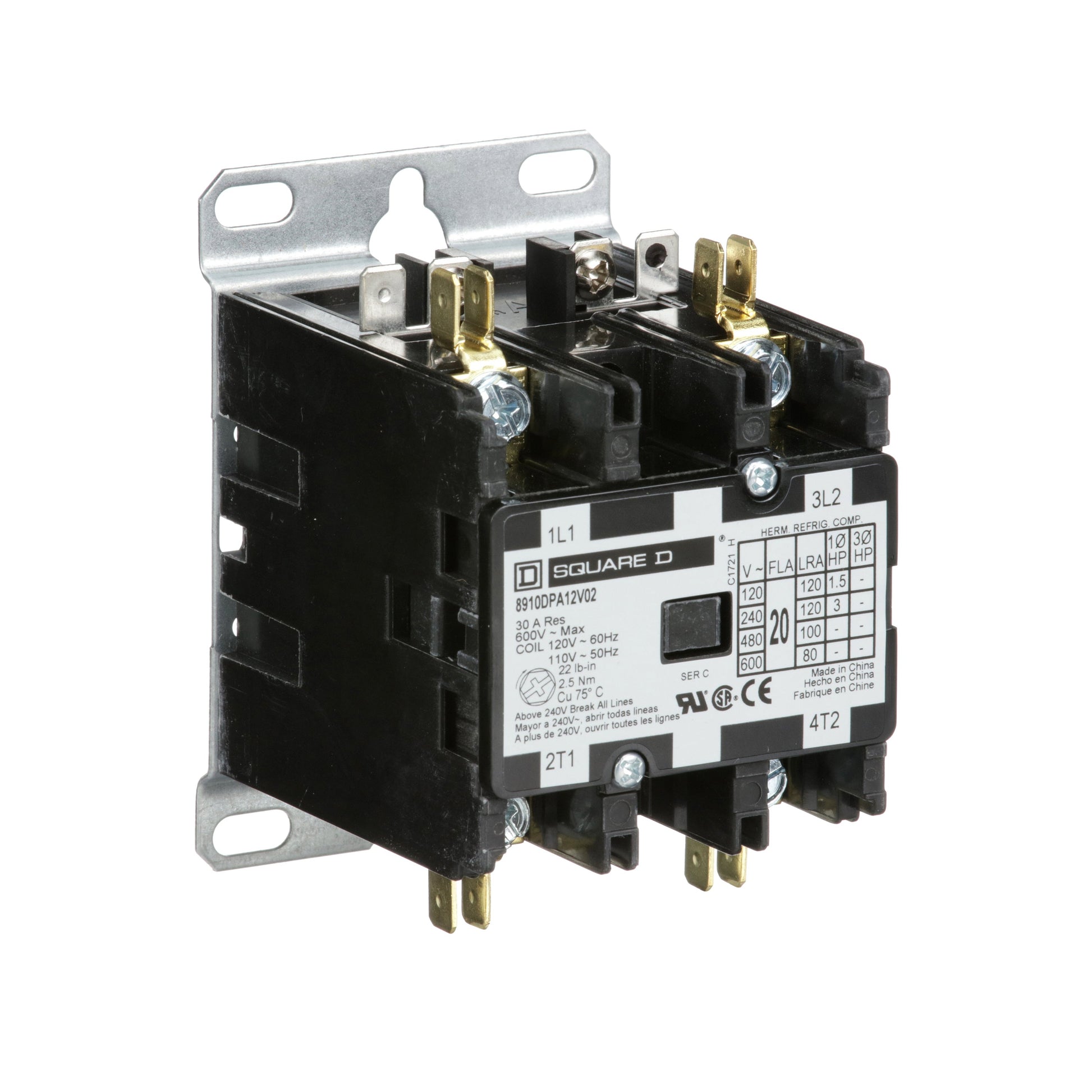

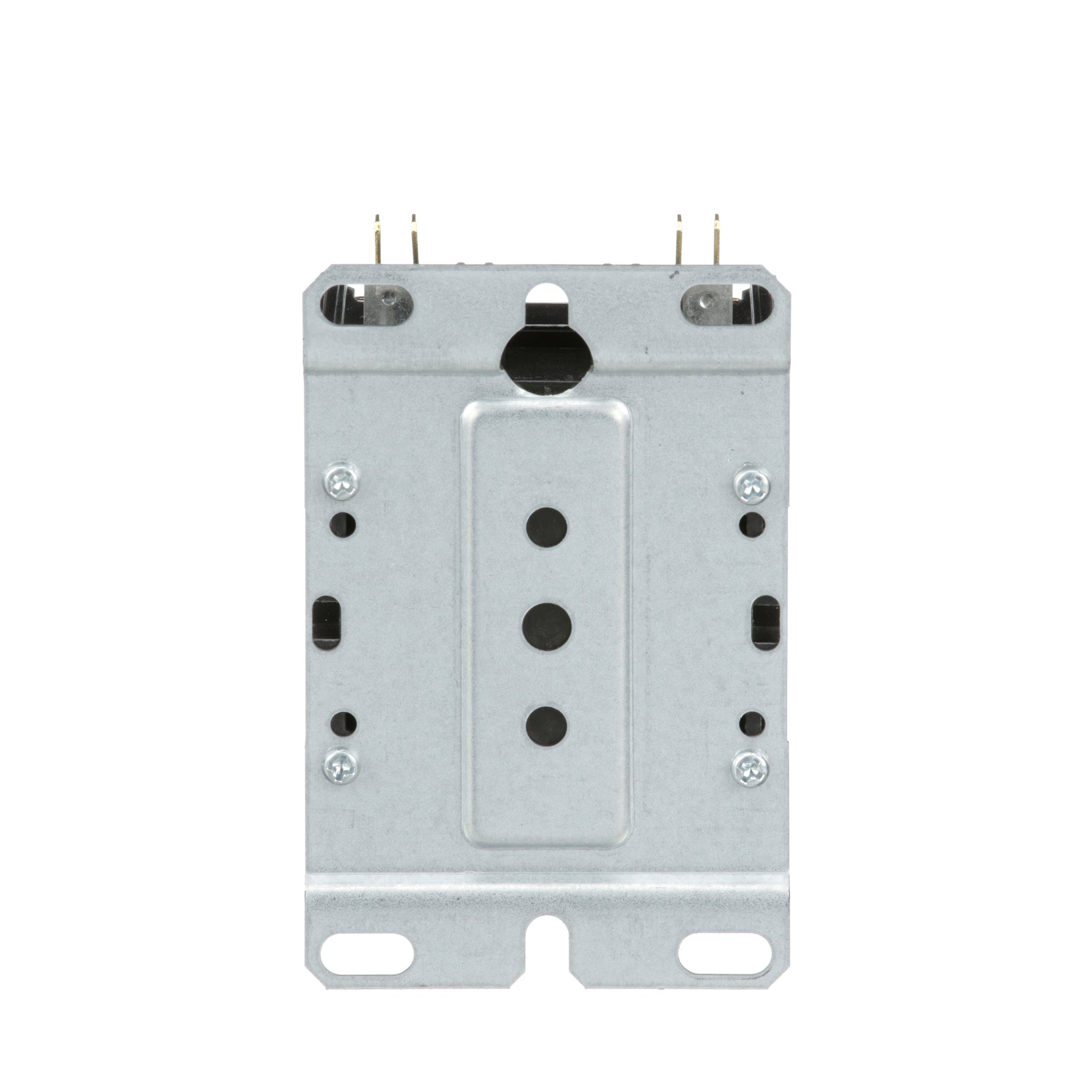

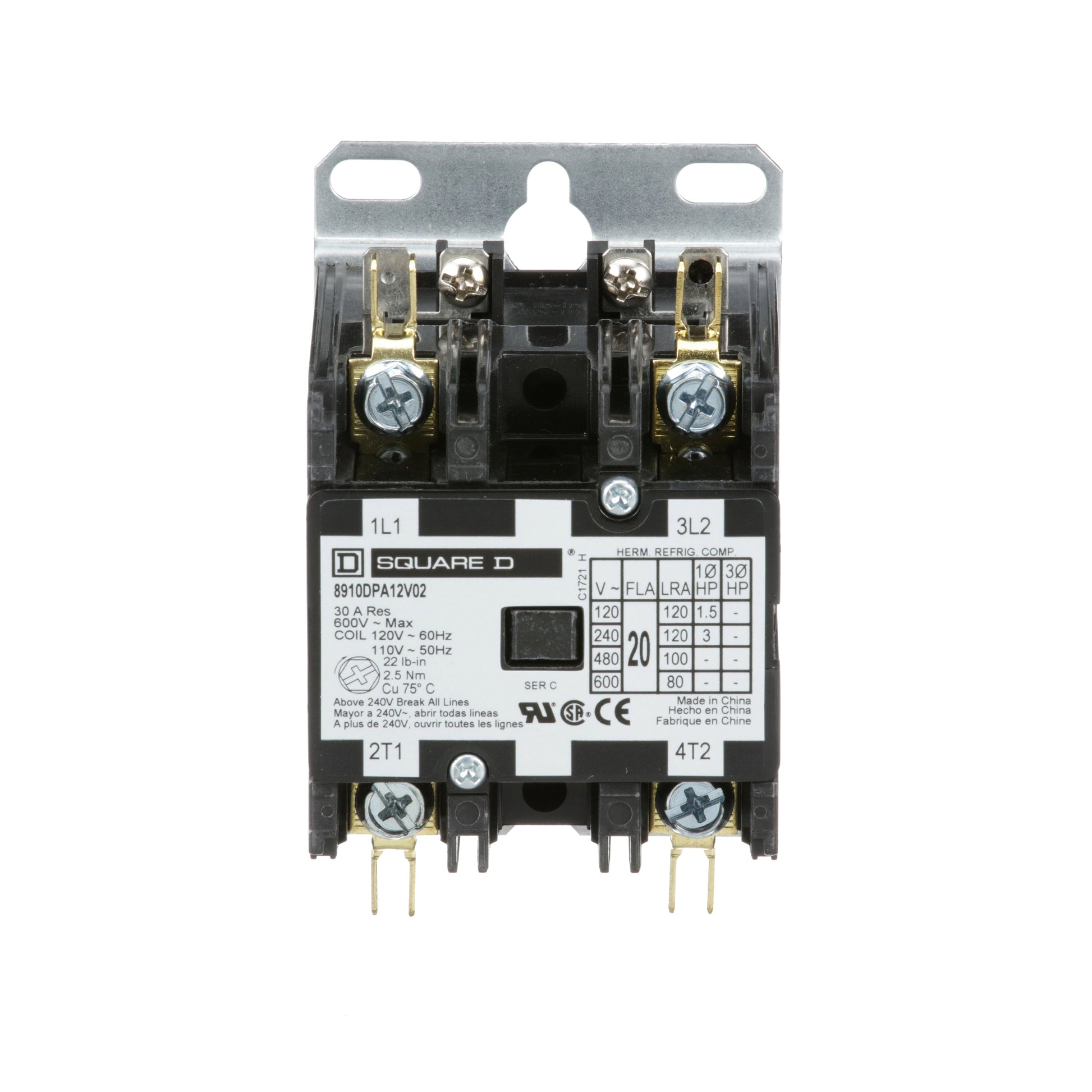

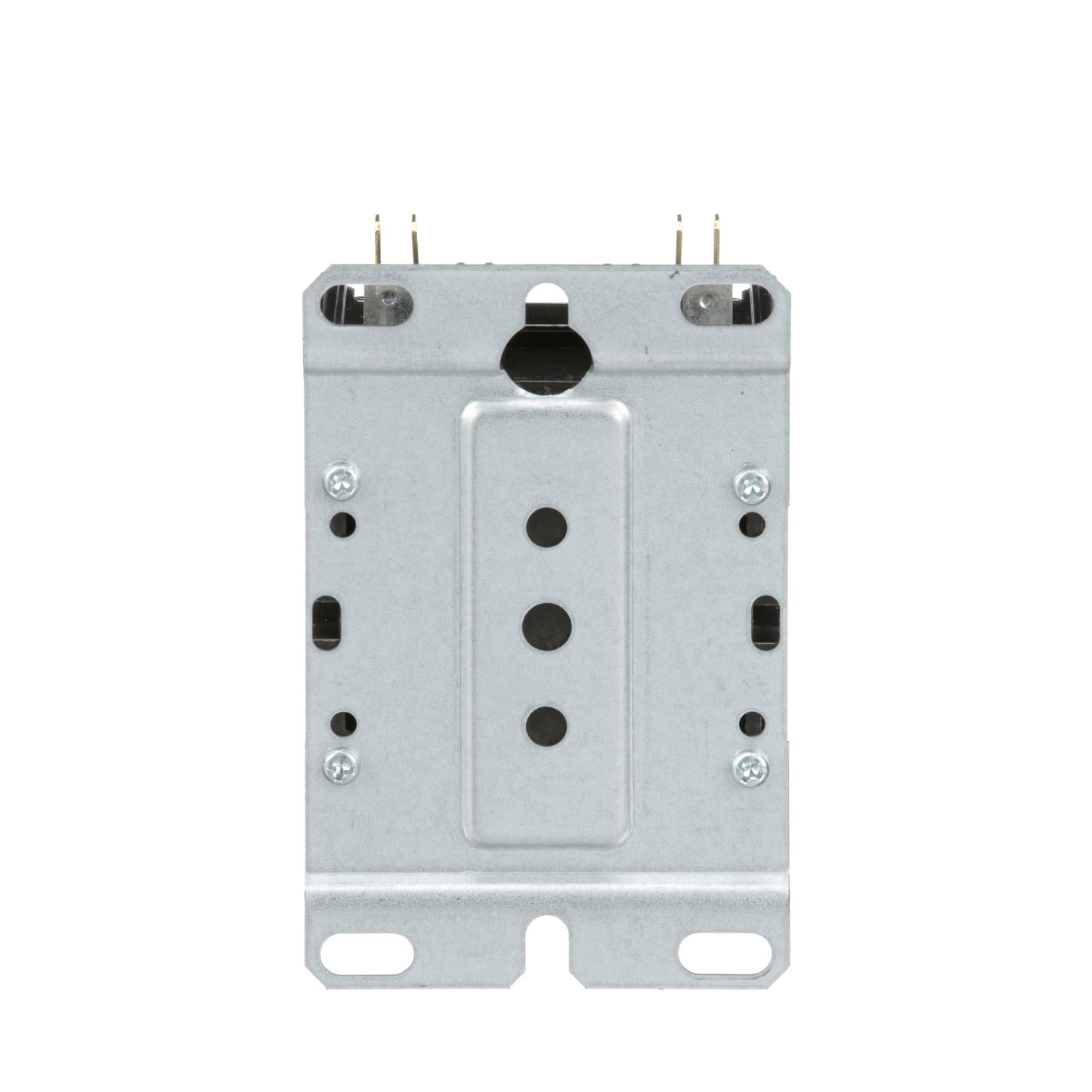

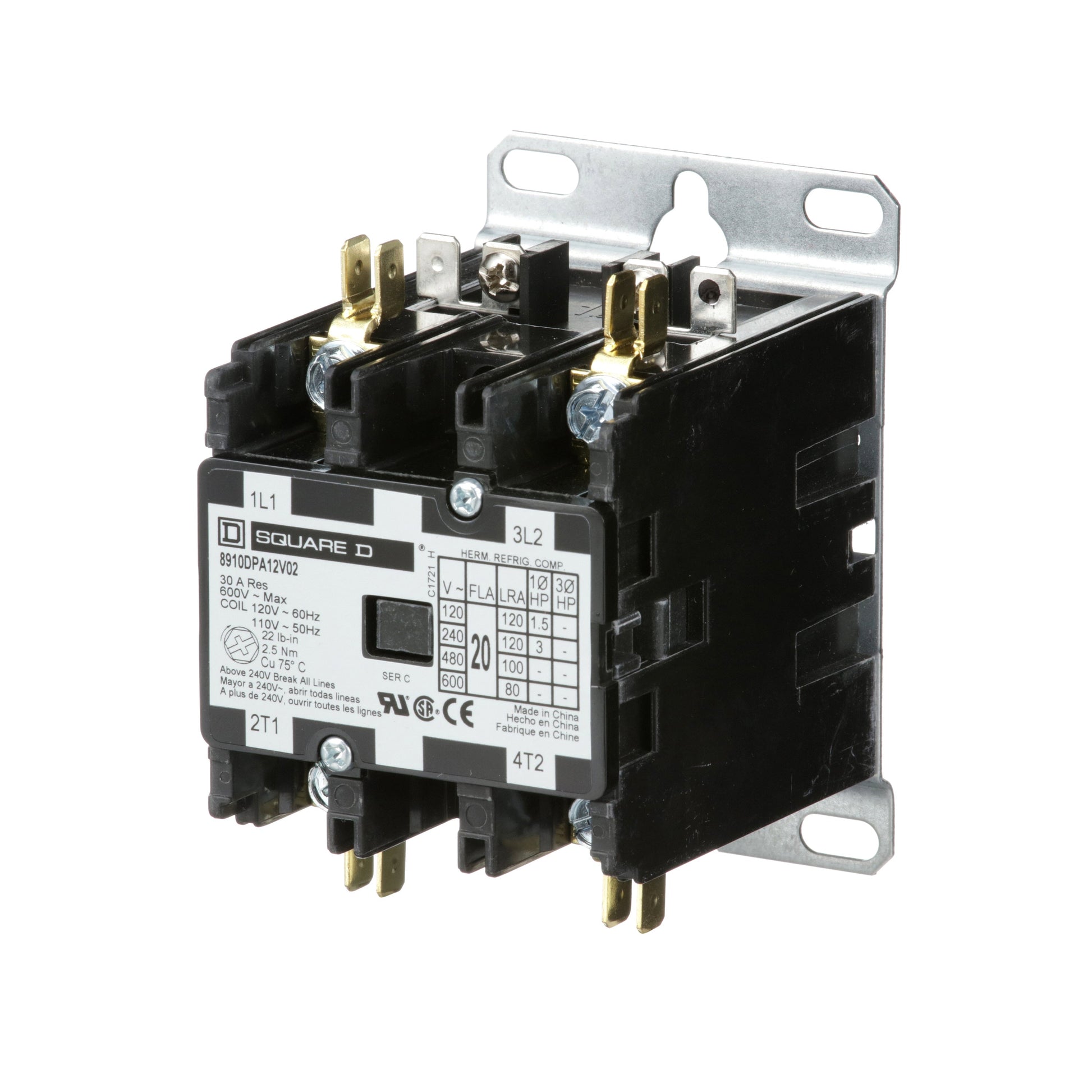

Square D 8910DPA12V02 Motor Control | Class 8910 DPA 600V 20A
Square D 8910DPA12V02 Motor Control | Class 8910 DPA 600V 20A
Price:
Sale
Sold out
Regular price
$48.46 USD
Regular price
$0.00 USD
Sale price
$48.46 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The Square D 8910DPA12V02 is a Class 8910 contactor designed for motor control applications. It features a 600V, 1-phase, 20A, 2-pole configuration with a horsepower rating of 3 hp at 230V AC and 1.5 hp at 115V AC. The contactor includes a 110V coil and comes with 2 NO auxiliary contacts. It is UL and CSA recognized for safety compliance.
Key Features:
✔ Part Number: 8910DPA12V02
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600V
✔ Amperage: 20A
✔ Phase: 1
✔ Poles: 2
✔ Horse Power: 3 hp 230V AC, 1.5 hp 115V AC
✔ Aux Contacts: 2 NO
✔ Coil Voltage: 110V-120V
✔ Certification: UL, CSA
✔ UPC: 785901116950
✔ GTIN: 00785901116950
✔ Dimensions: 4.13" D x 4.5" W x 6.
The Square D 8910DPA12V02 is a Class 8910 contactor designed for motor control applications. It features a 600V, 1-phase, 20A, 2-pole configuration with a horsepower rating of 3 hp at 230V AC and 1.5 hp at 115V AC. The contactor includes a 110V coil and comes with 2 NO auxiliary contacts. It is UL and CSA recognized for safety compliance.
