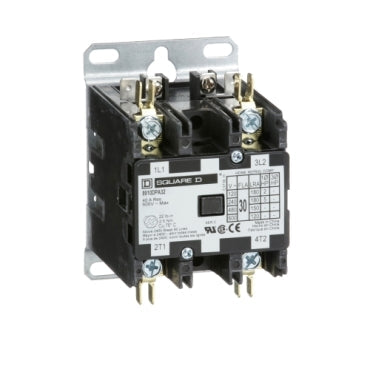

Square D 8910DPA32V04 Contactor | 2 Pole 30A 600V 277V Coil Class 8910

Product Description:
The Square D 8910DPA32V04 is a Class 8910 definite purpose contactor designed for motor control applications. It operates at 600V, 1 phase, 30A, and is a 2-pole starter with a horsepower rating of 2 hp at 115V AC and 5 hp at 230V AC. This unit is equipped with a 277V AC coil and includes 2 normally open auxiliary contacts for enhanced control functionality.

Key Features:
✔ Part Number: 8910DPA32V04
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ Horse Power: 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase
✔ Aux Contacts: 2 NO
✔ Coil Voltage Maximum: 277V
✔ Full Load Amps: Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
✔ Coil Voltage Minimum: 277V
✔ Frequency: 60 Hz
✔ UPC: 785901024408
✔ GTIN: 00785901024408
✔ Country of Origin: China
✔ Dimensions: 2.5 in x 4 in
✔ Weight: 1
✔ Certification: CSA, RoHS, UL Listed
