Product Description:

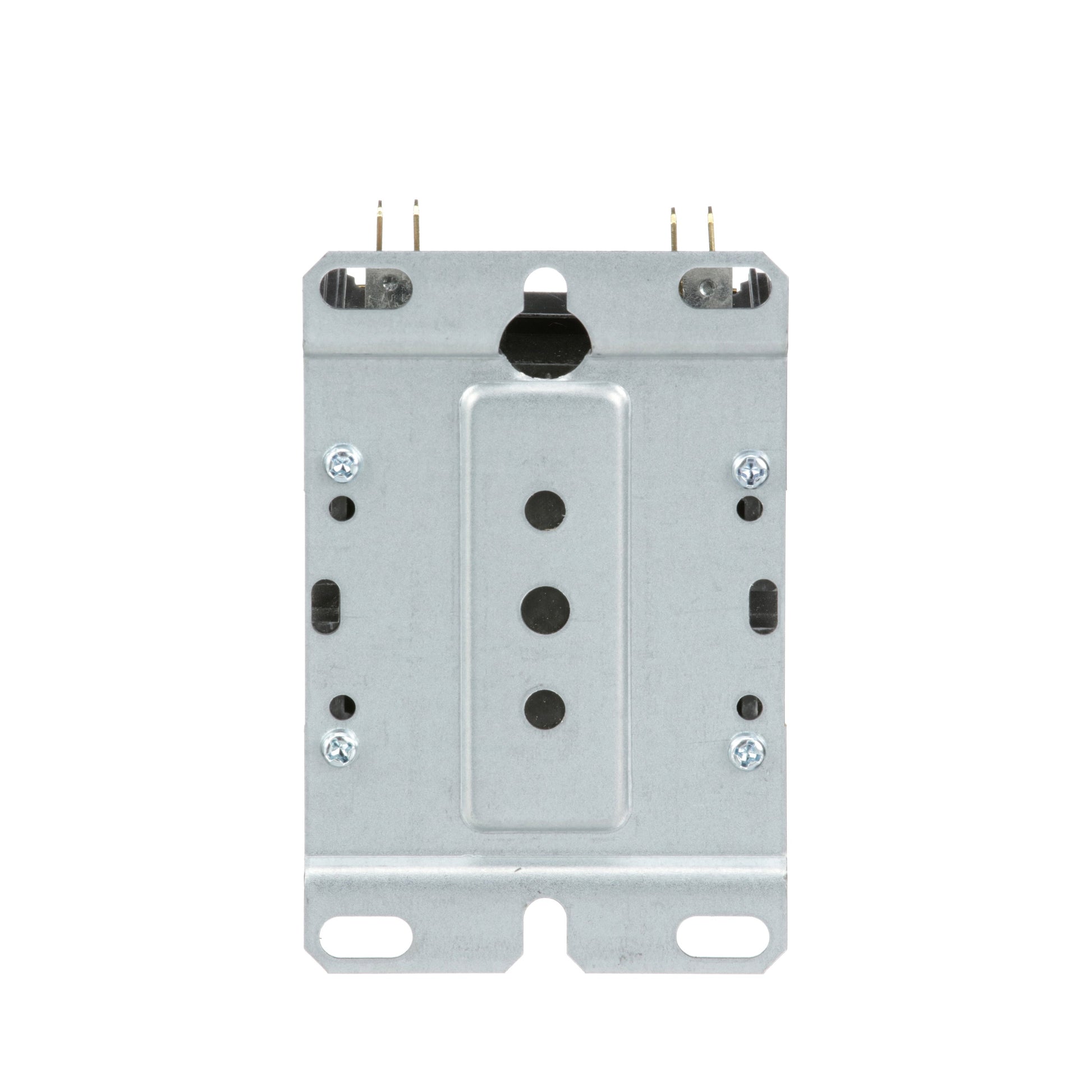

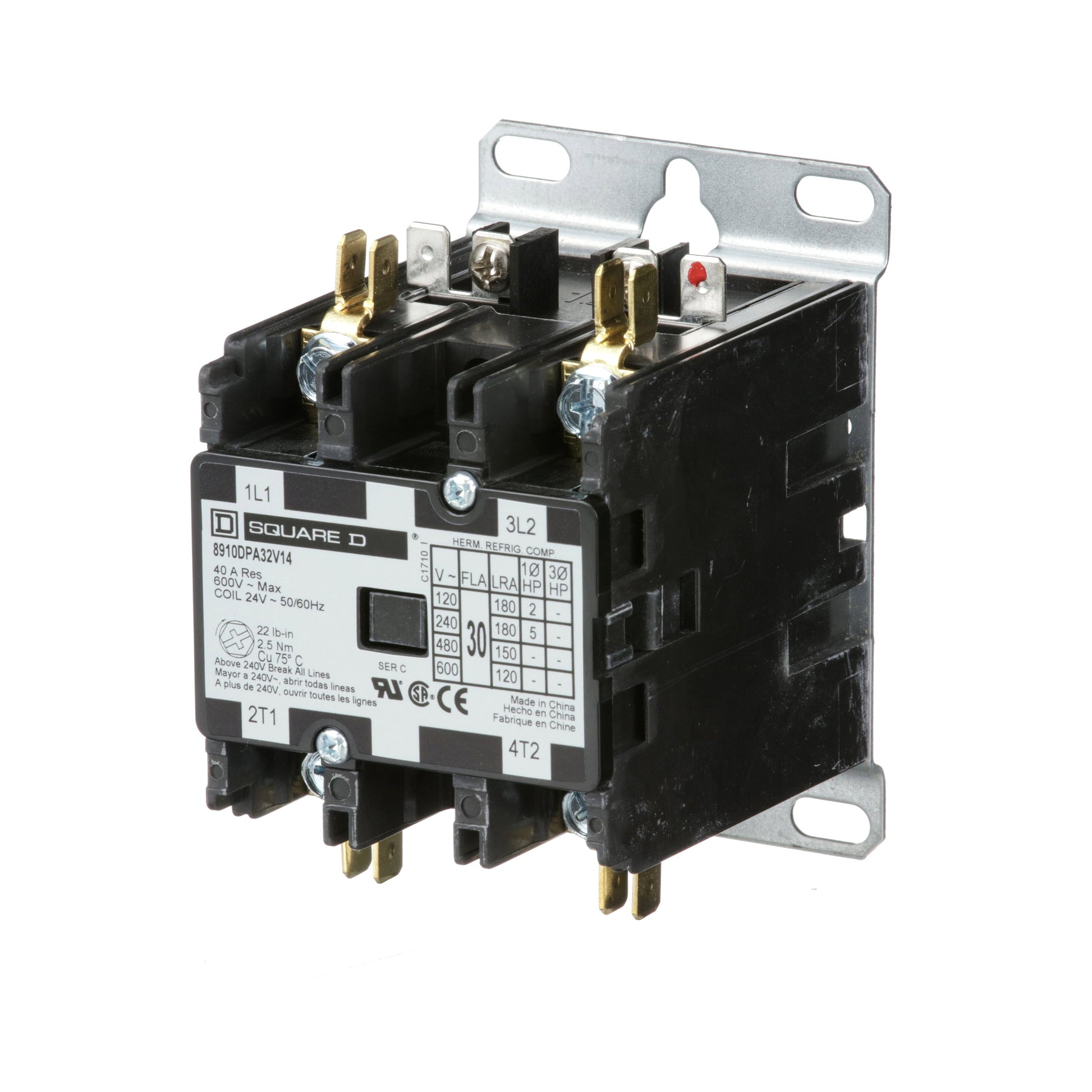

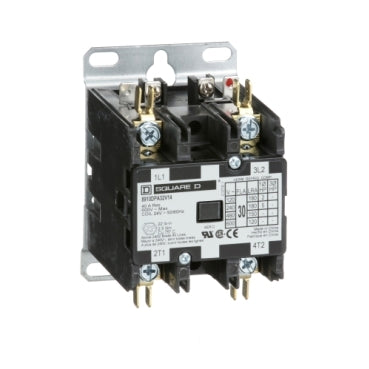

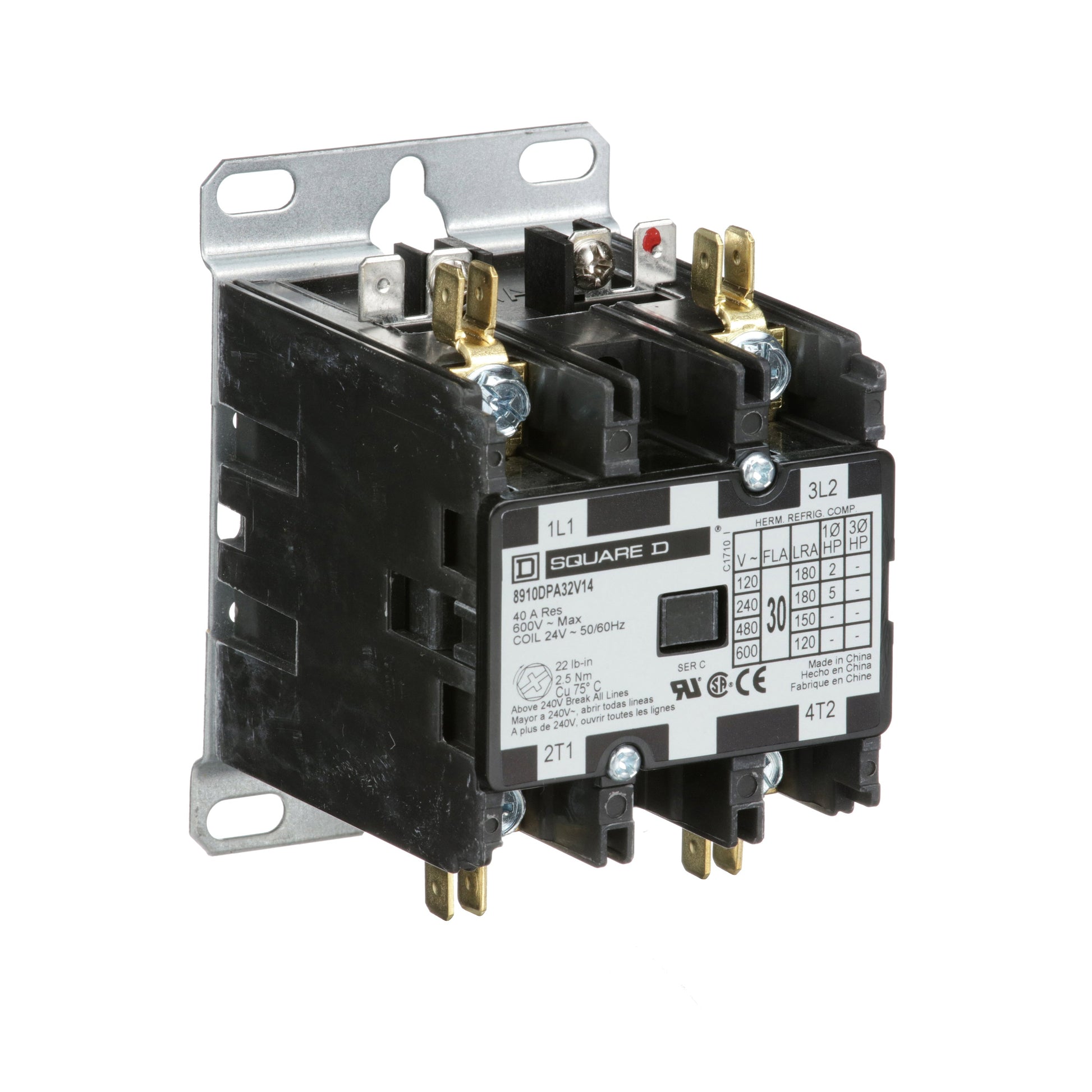

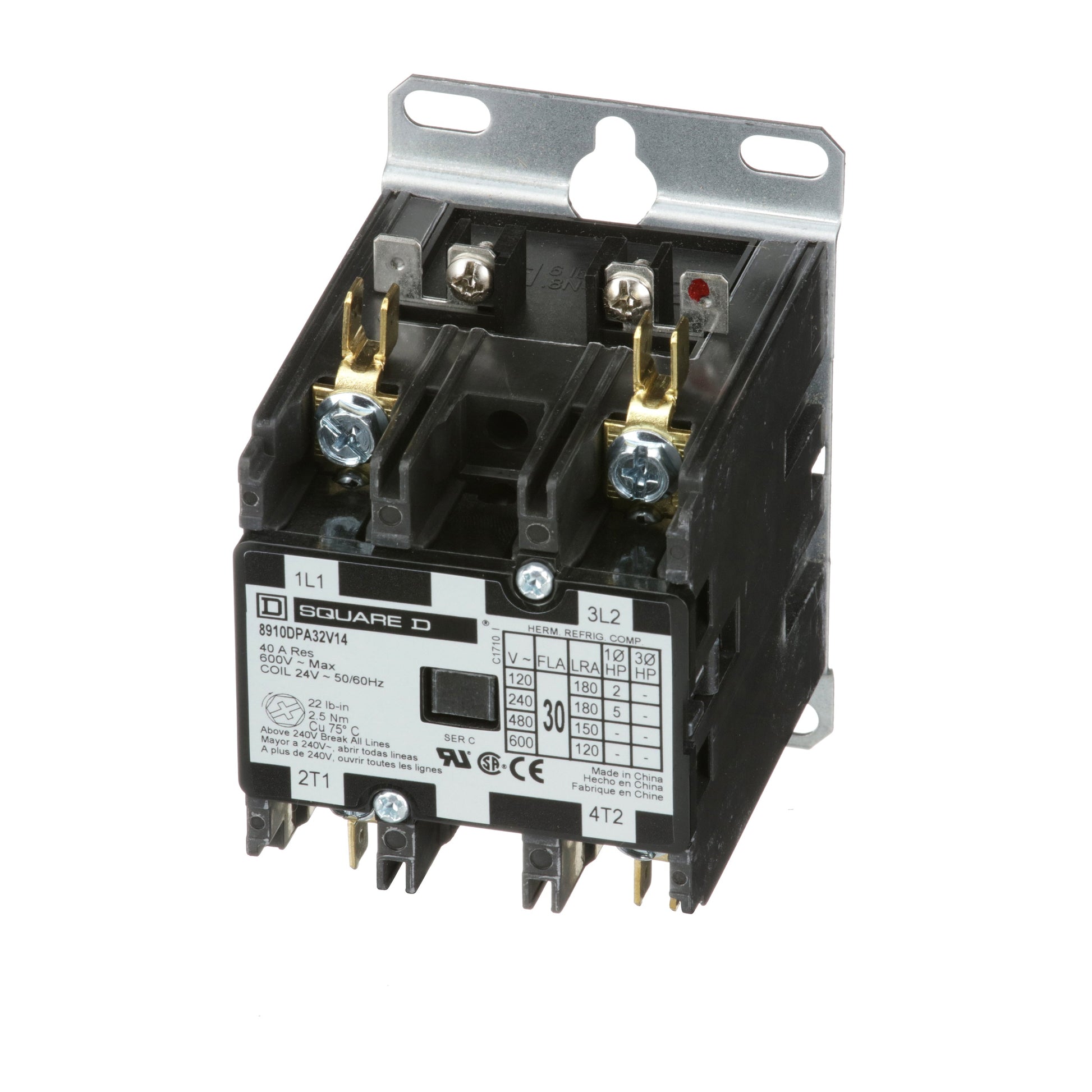

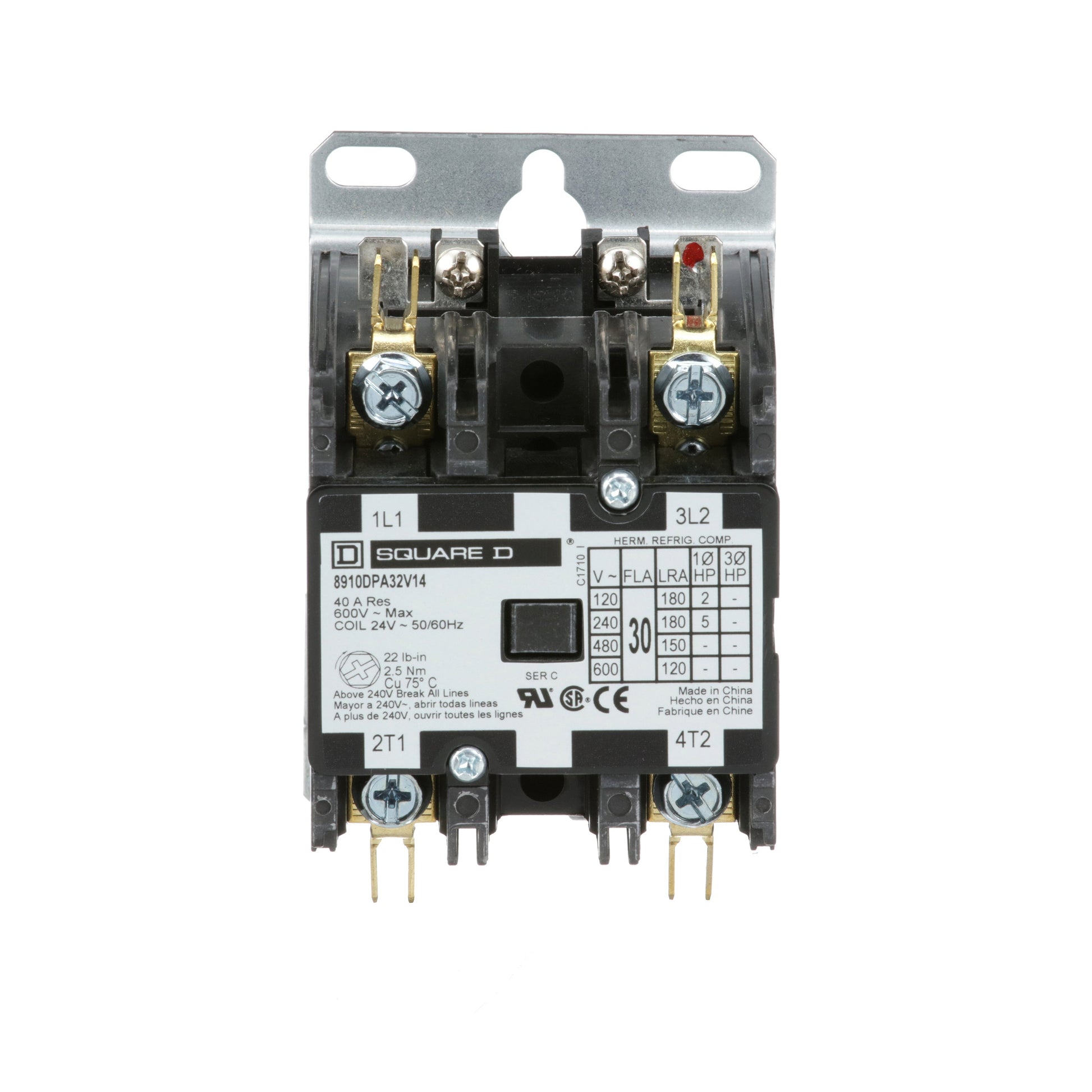

The Square D 8910DPA32V14 is a Class 8910 definite purpose contactor with a 600V 1-phase 30A 2-pole design. It features a horsepower rating of 2 hp at 115V AC and 5 hp at 230V AC, making it suitable for motor control applications. The contactor includes a 24V coil and auxiliary contacts for enhanced functionality.
Key Features:
✔ Part Number: 8910DPA32V14
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ Horse Power: 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase
✔ Aux Contacts: 2 NO
✔ Coil Voltage Maximum: 24V
✔ Full Load Amps: Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
✔ Coil Voltage Minimum: 24V
✔ Frequency: 50/60 Hz
✔ UPC: 785901749820
✔ GTIN: 00785901749820
✔ Country of Origin: China
✔ Dimensions: 2.5 in x 4 in
✔ Weight: 1
✔ Certification: CSA, RoHS, UL Listed
