Square D 8910DPA33V02 Contactor 3P 30A 600V 110V Coil Class 8910

Product Description:
The Square D 8910DPA33V02 is a Class 8910 definite purpose contactor designed for 600V, 3-phase, 30A motor control applications. It is a 3-pole starter with a 110V AC coil and supports a range of horsepower ratings across different voltages. This contactor is suitable for various industrial and commercial motor starting needs.

Key Features:
✔ Part Number: 8910DPA33V02
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 120V
✔ Full Load Amps: Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
✔ Coil Voltage Minimum: 110V
✔ Frequency: 50/60 Hz
✔ UPC: 785901073536
✔ GTIN: 00785901073536
✔ Country of Origin: China

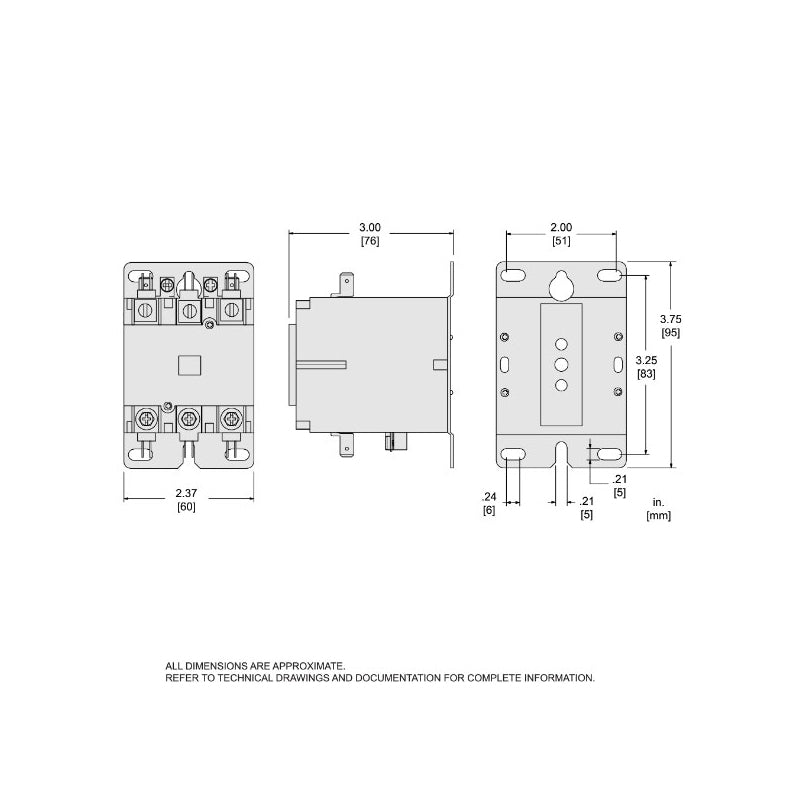

✔ Dimensions: 2.5 in x 4 in
✔ Weight: 1
✔ Certification: CSA, RoHS, UL Listed
