Product Description:

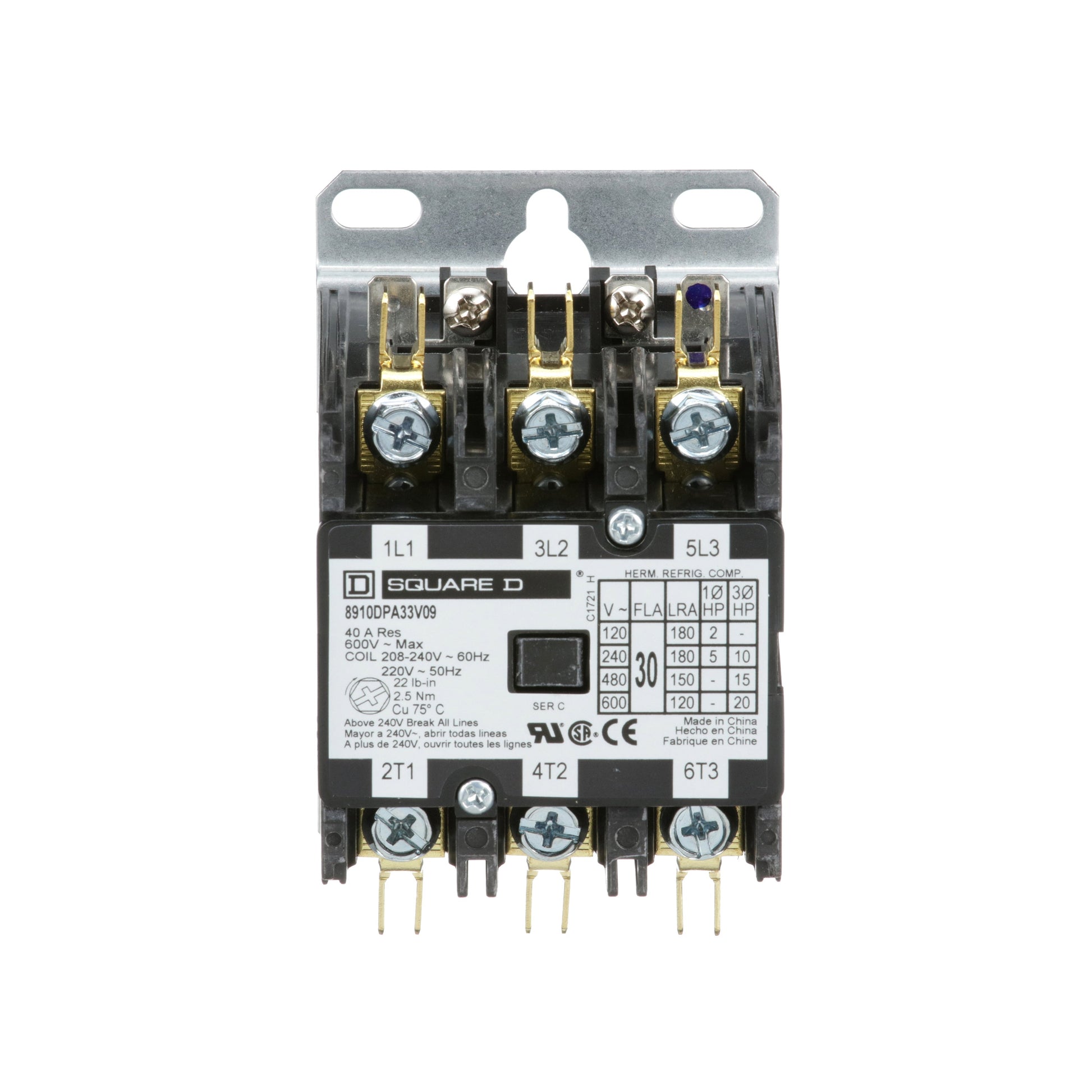

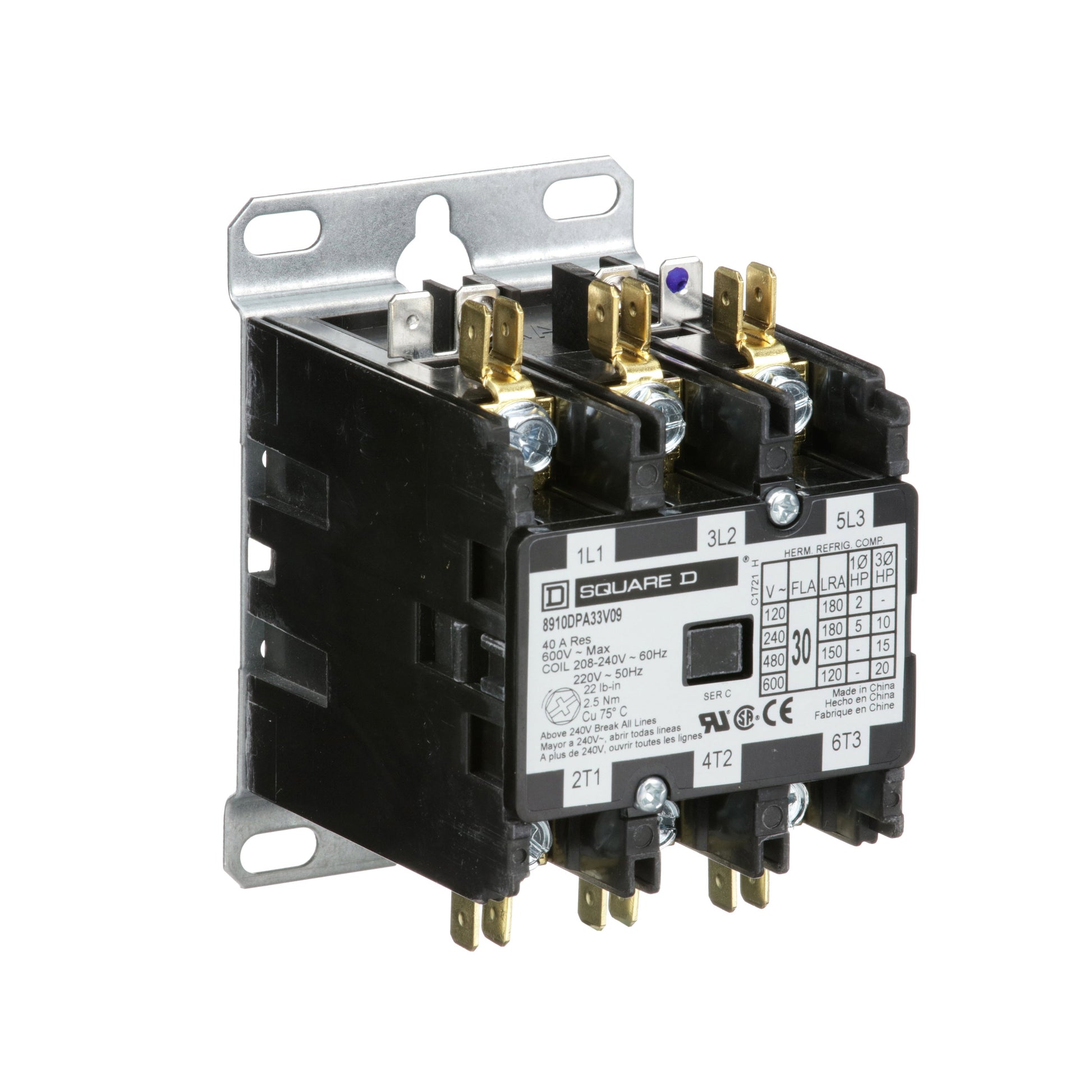

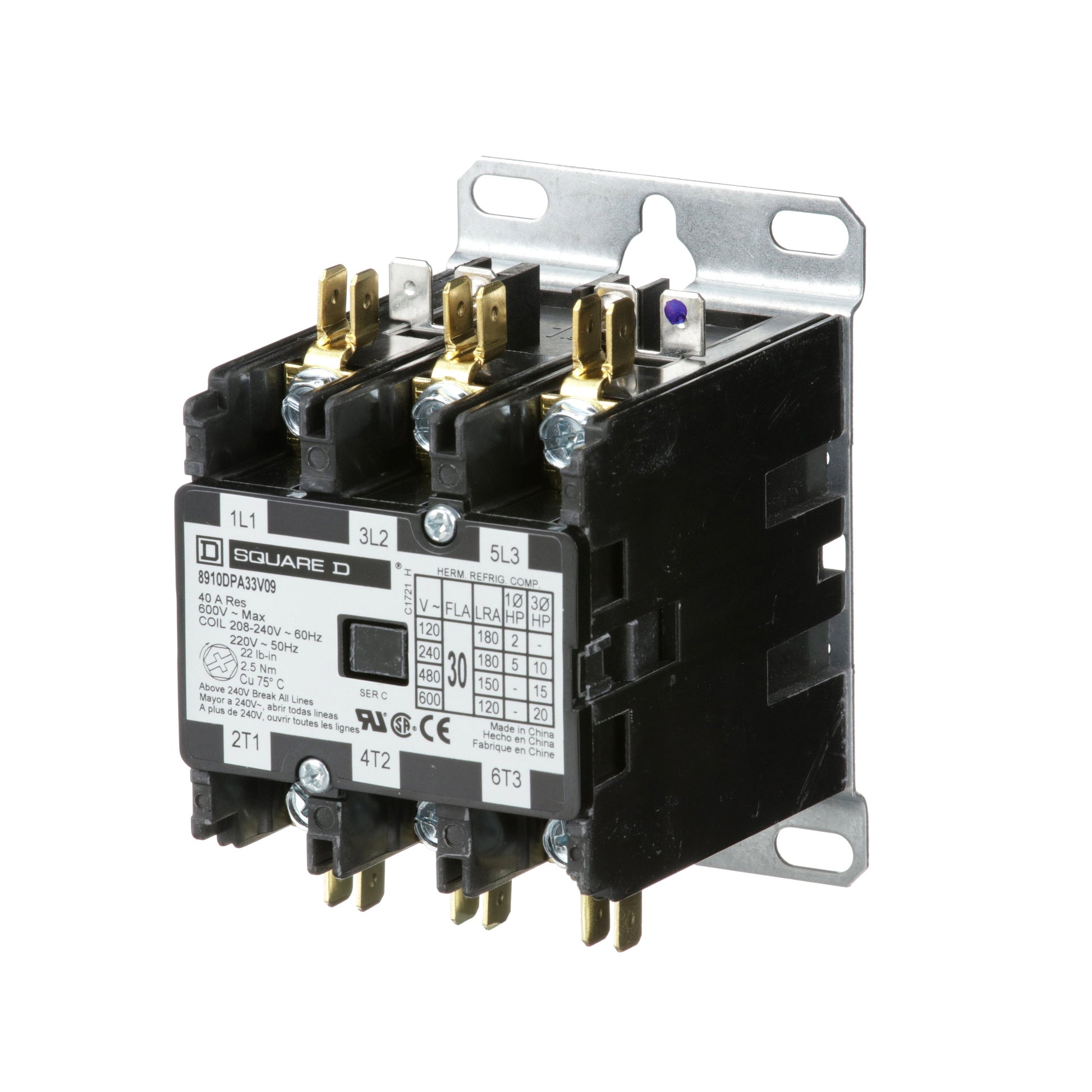

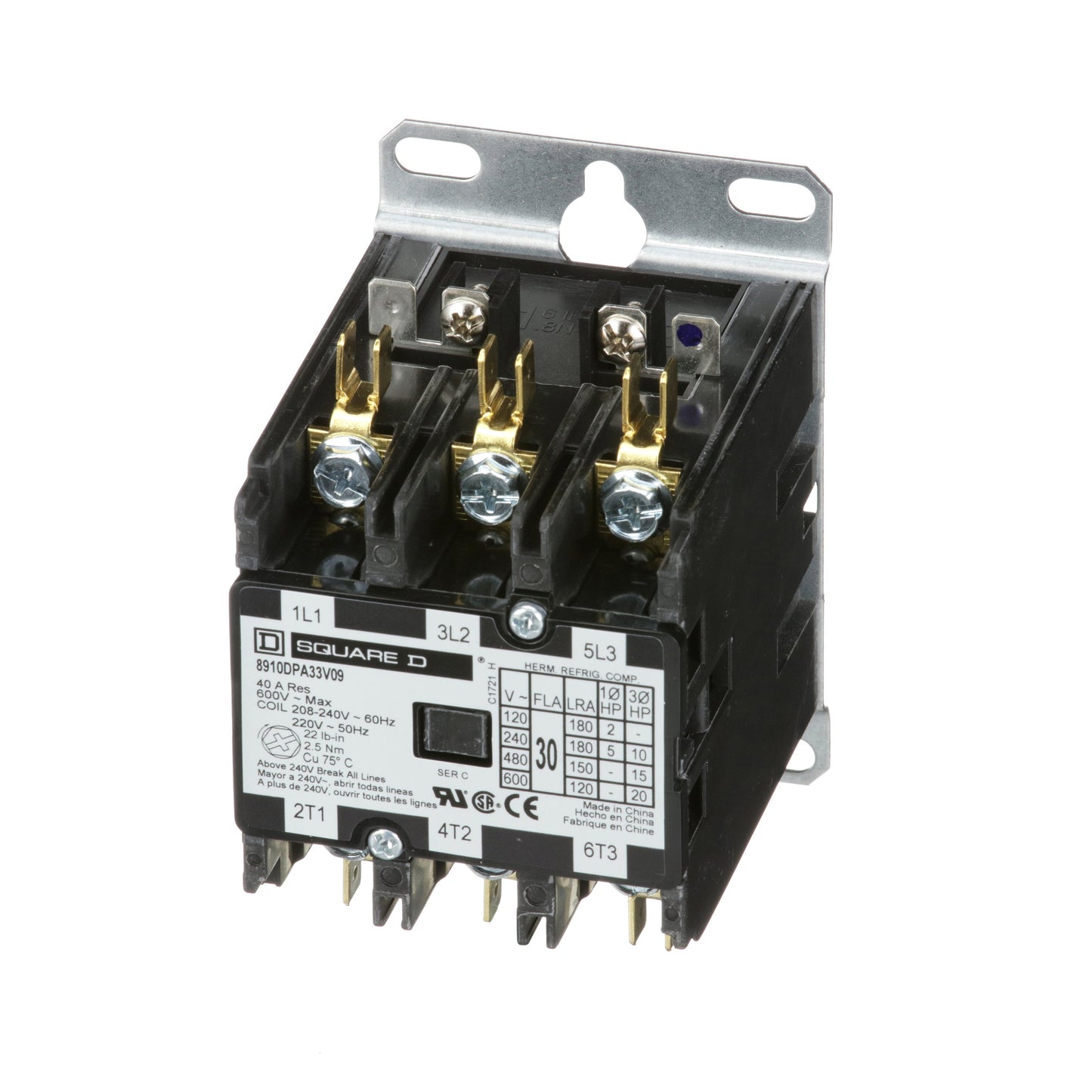

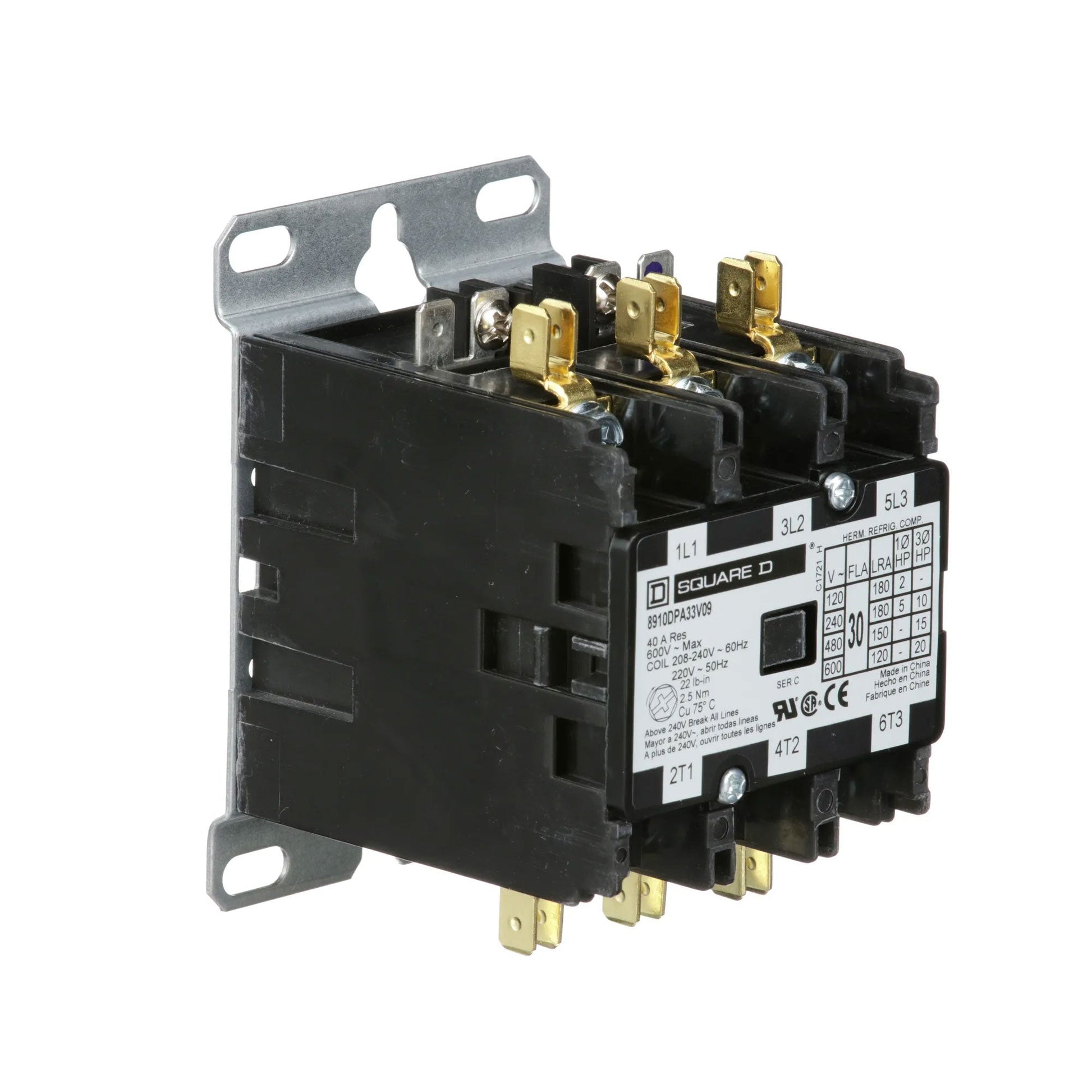

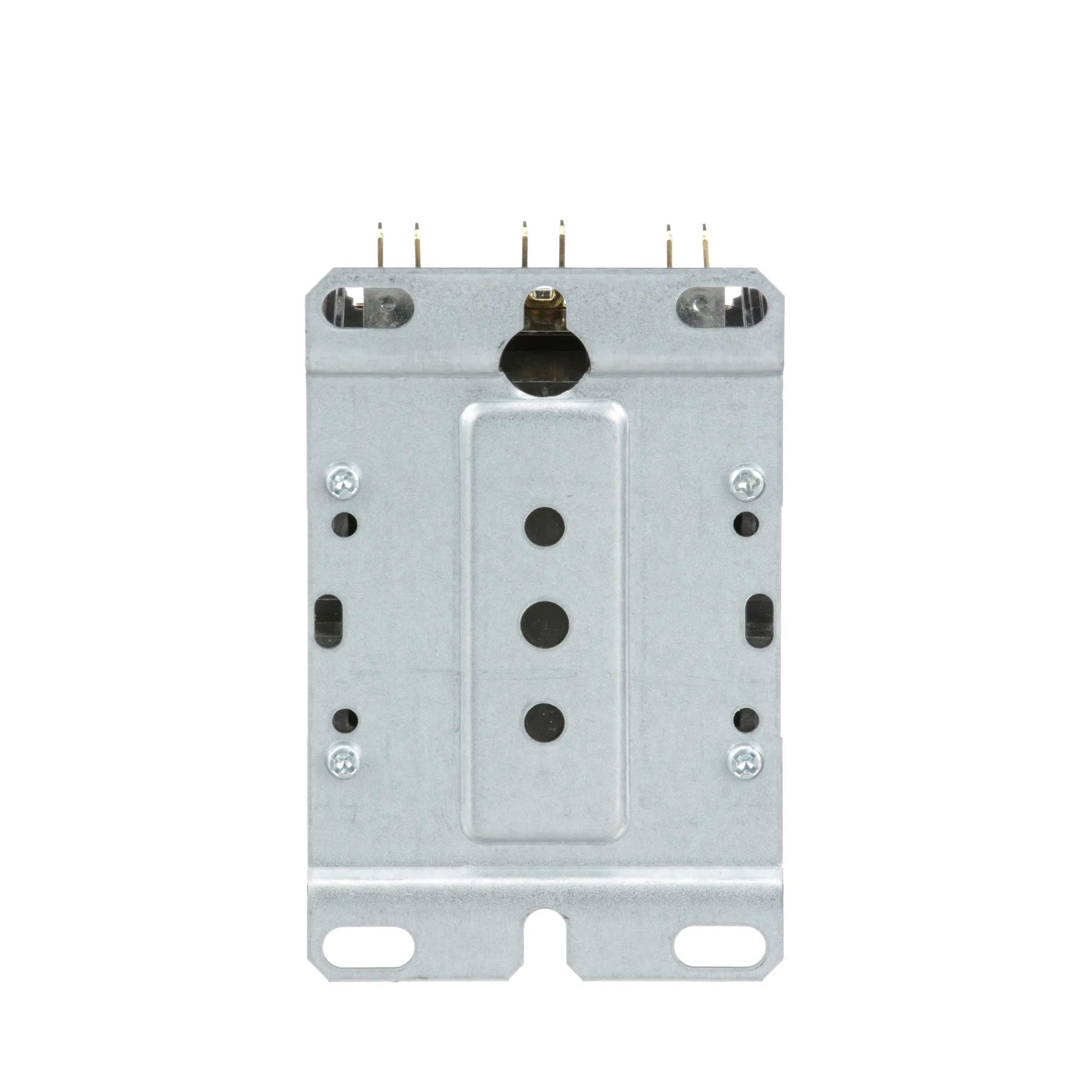

The Square D 8910DPA33V09 is a 600V 3-phase 30A 3-pole definite purpose contactor. It features a 220V coil and supports various horsepower ratings across different voltage configurations. This contactor is ideal for motor control applications in industrial and commercial settings. It includes 3 normally open auxiliary contacts for enhanced functionality.
Key Features:
✔ Part Number: 8910DPA33V09
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 220V
✔ Full Load Amps: Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
✔ Coil Voltage Minimum: 220V
✔ Frequency: 50 Hz
✔ UPC: 785901073529
✔ GTIN: 00785901073529
✔ Country of Origin: China

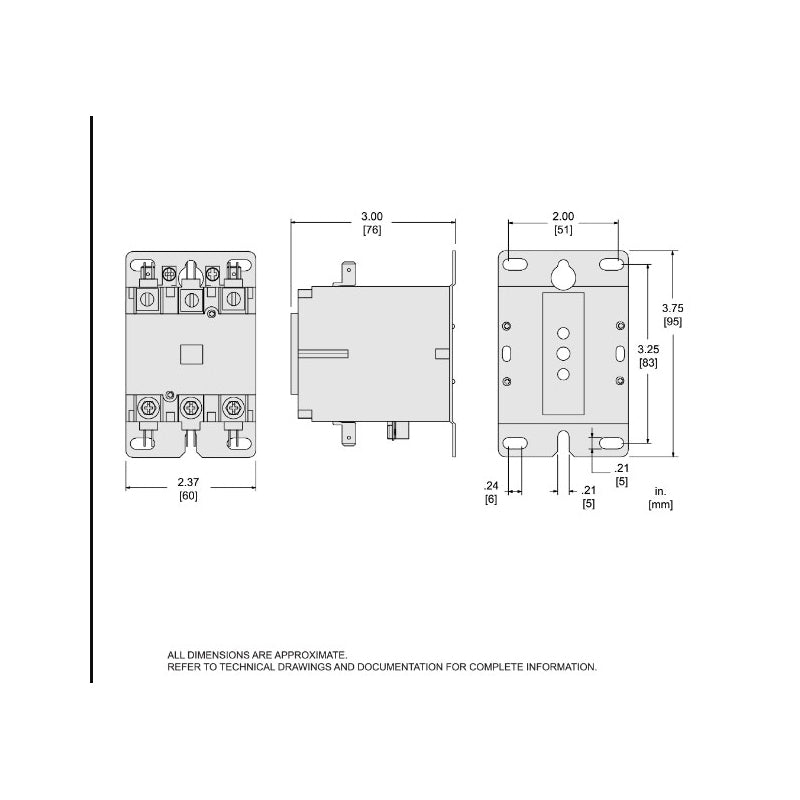

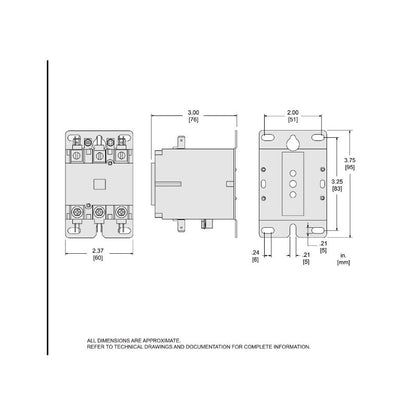

✔ Dimensions: 2.5 in x 4 in
✔ Weight: 1
✔ Certification: CSA, RoHS, UL Listed
