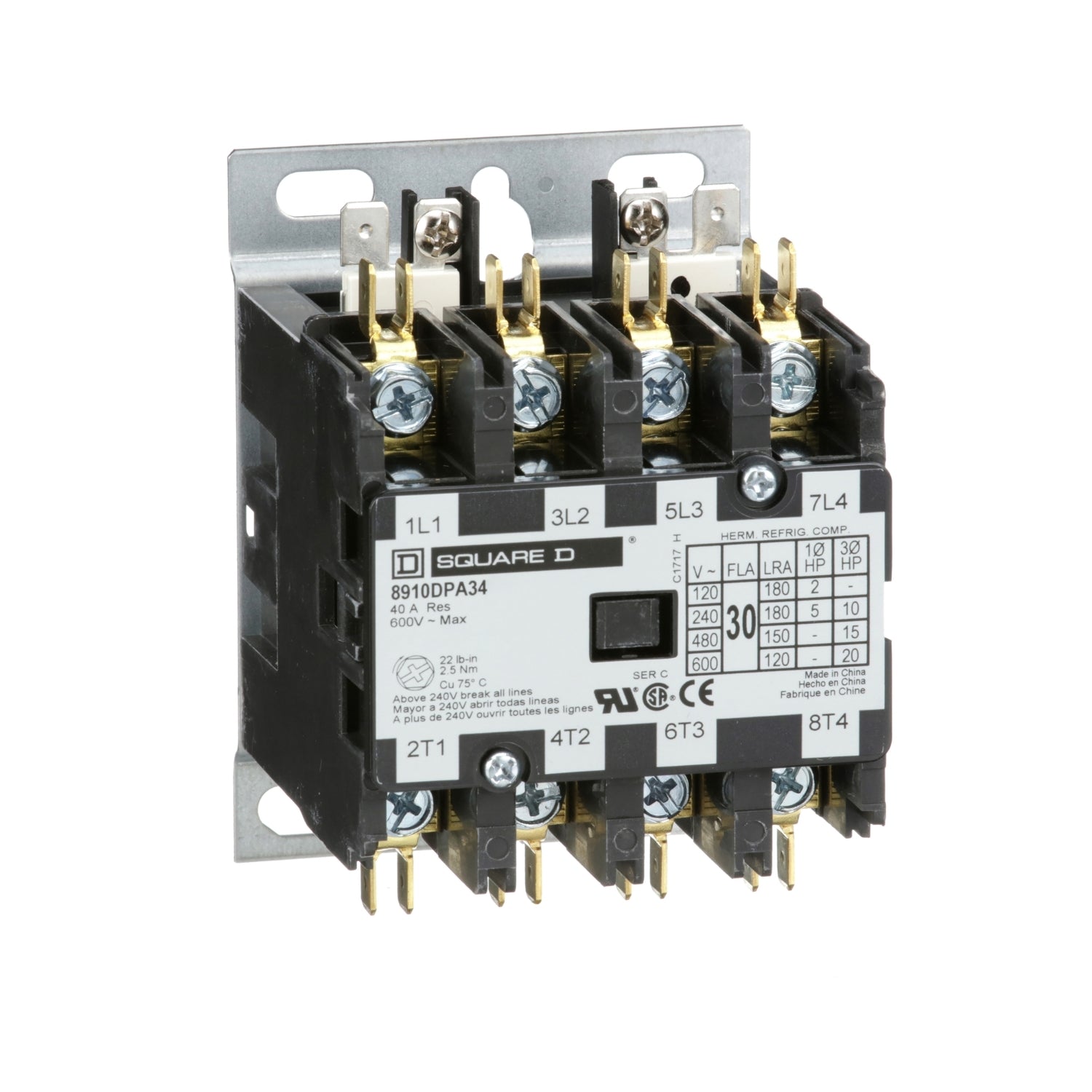

Square D 8910DPA34V09 Contactor 4P 3P 600V 30A 220V Coil Class 8910

Product Description:
The Square D 8910DPA34V09 is a Class 8910 definite purpose contactor designed for 600V 3-phase applications. It handles up to 30A and features 4 poles with a 220VAC coil. This contactor supports a range of horsepower ratings, making it suitable for various motor control tasks in industrial settings.

Key Features:
✔ Part Number: 8910DPA34V09
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 4
✔ Horse Power: 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
✔ Aux Contacts: 4 NO
✔ Coil Voltage Maximum: 220V
✔ Full Load Amps: Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
✔ Coil Voltage Minimum: 220V
✔ Frequency: 50 Hz
✔ UPC: 785901073499
✔ GTIN: 00785901073499
✔ Country of Origin: China
✔ Dimensions: 3.17 in x 4 in
✔ Weight: 1 lb
✔ Temp Rating: 32 to 149 deg
✔ Certification: CSA, RoHS, UL Listed
