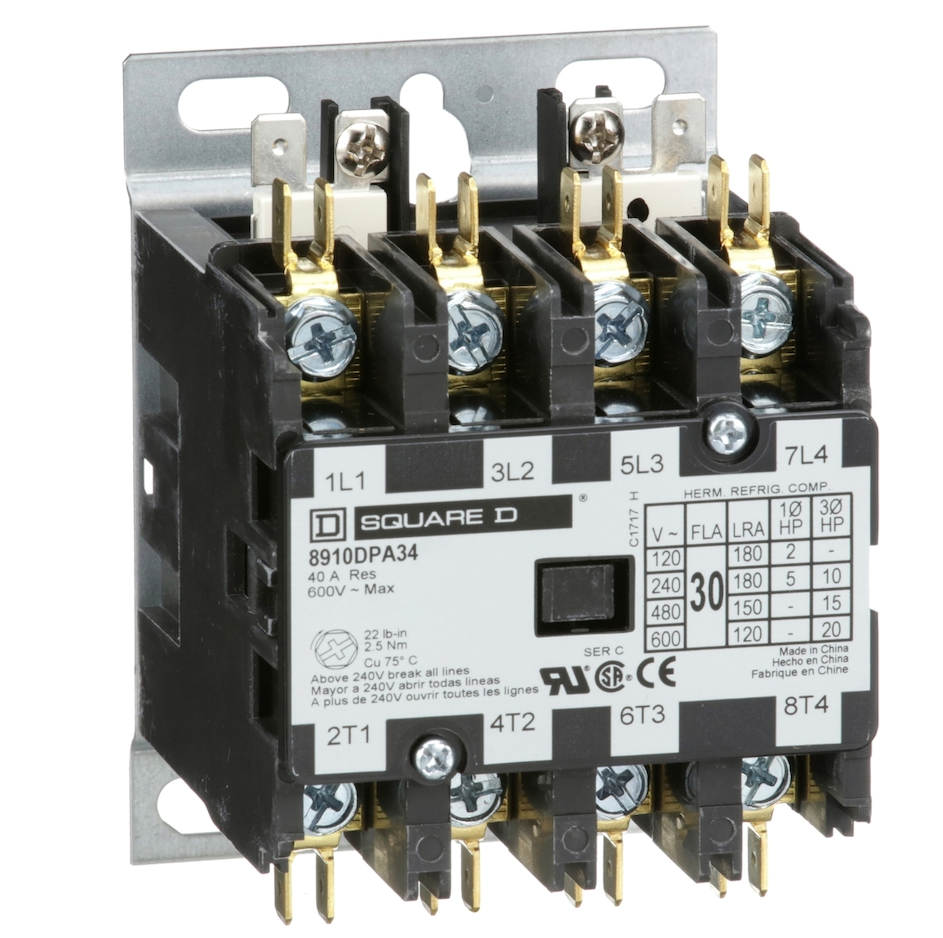

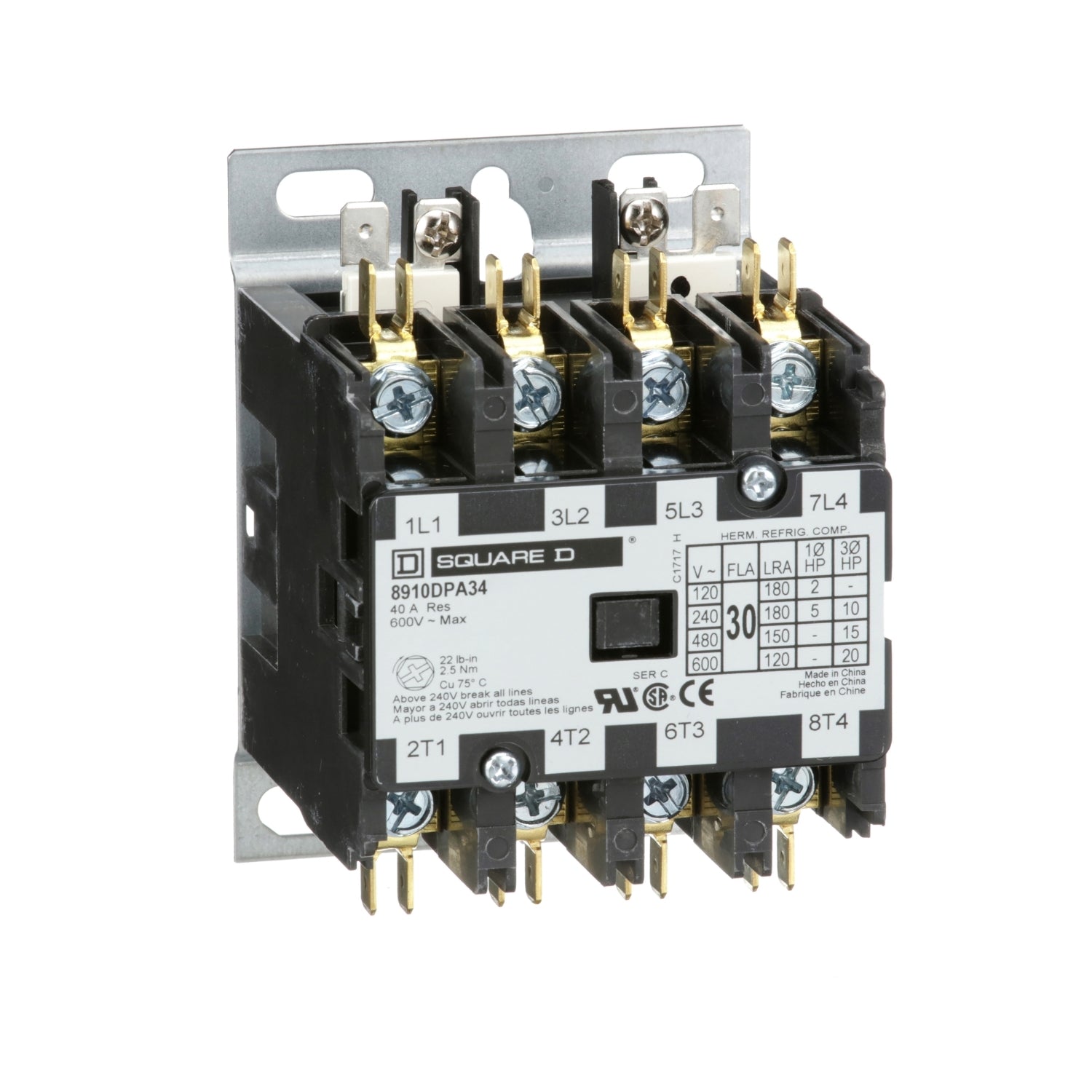

Square D 8910DPA34V14 Contactor 4 Pole 3 Phase 600V 30A 24V Coil Class 8910

Product Description:
The Square D 8910DPA34V14 is a Class 8910 definite purpose contactor designed for 600V applications. It is a 3-phase, 30A, 4-pole starter with a horsepower rating that varies by voltage and phase configuration. This unit comes complete with a 24V coil and is suitable for a range of motor control tasks.

Key Features:
✔ Part Number: 8910DPA34V14
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 4
✔ Horse Power: 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
✔ Aux Contacts: 4 NO
✔ Coil Voltage Maximum: 24V
✔ Full Load Amps: Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
✔ Coil Voltage Minimum: 24V
✔ Frequency: 50/60 Hz
✔ UPC: 785901073512
✔ GTIN: 00785901073512
✔ Country of Origin: China
✔ Dimensions: 3.17 in x 4 in
✔ Weight: 1 lb
✔ Temp Rating: 32 to 149 deg
✔ Certification: CSA, RoHS, UL Listed
