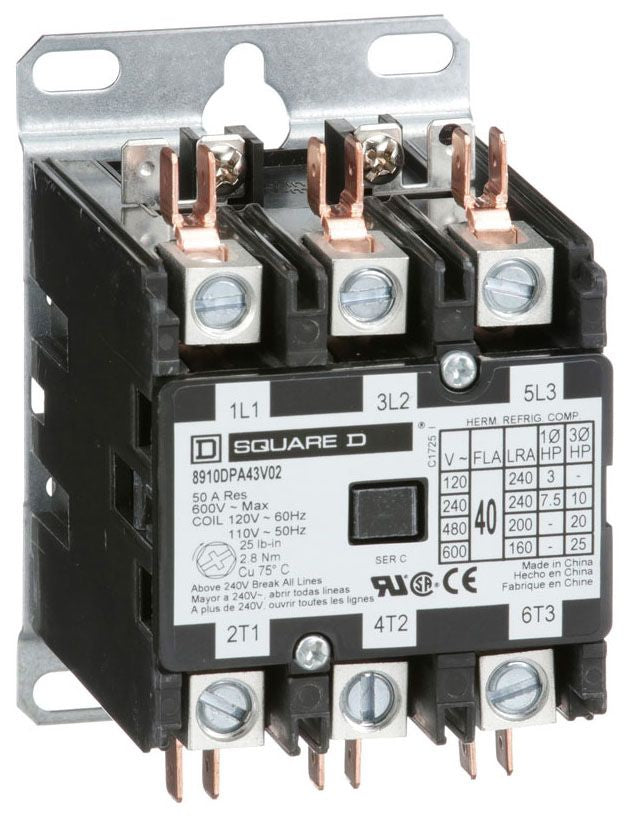

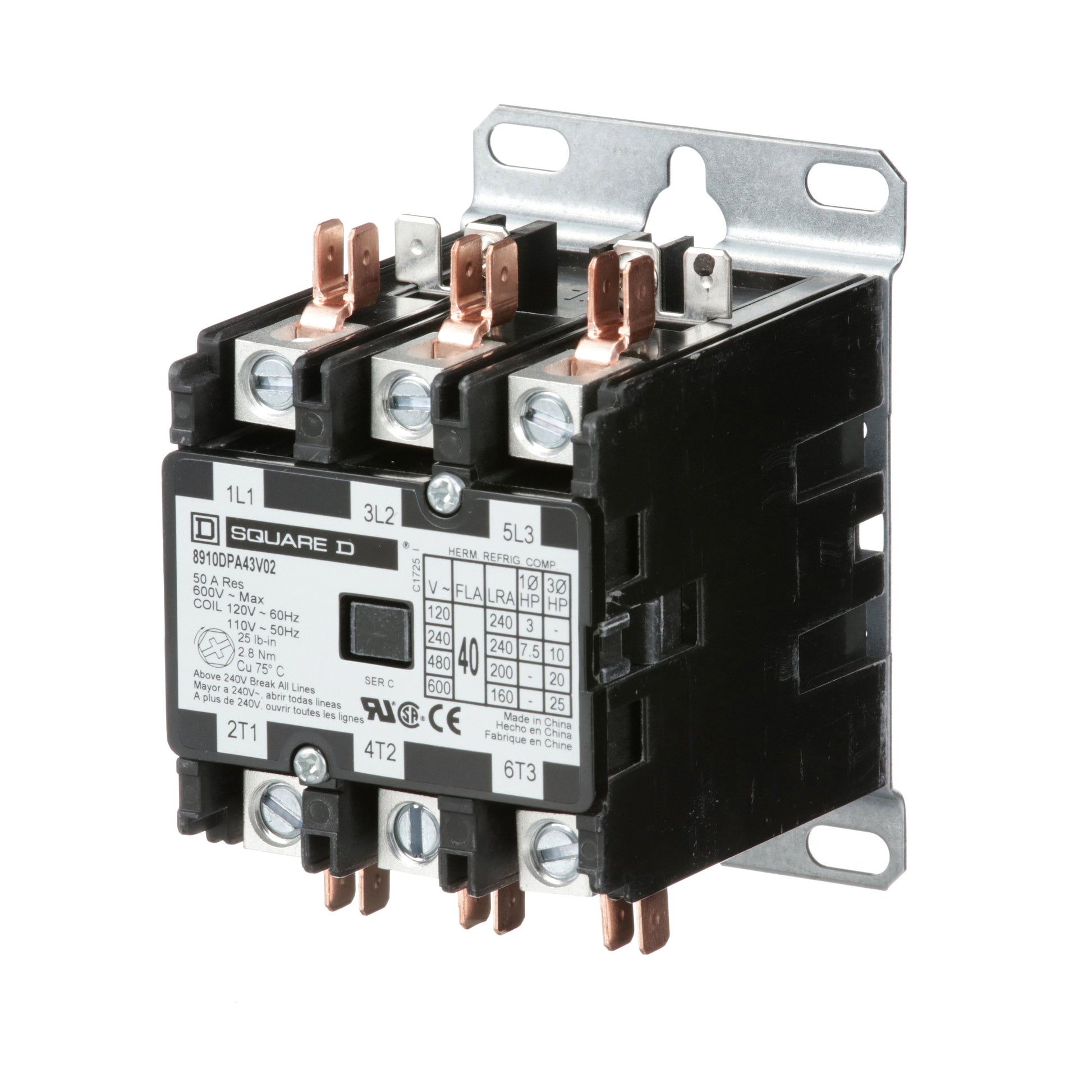

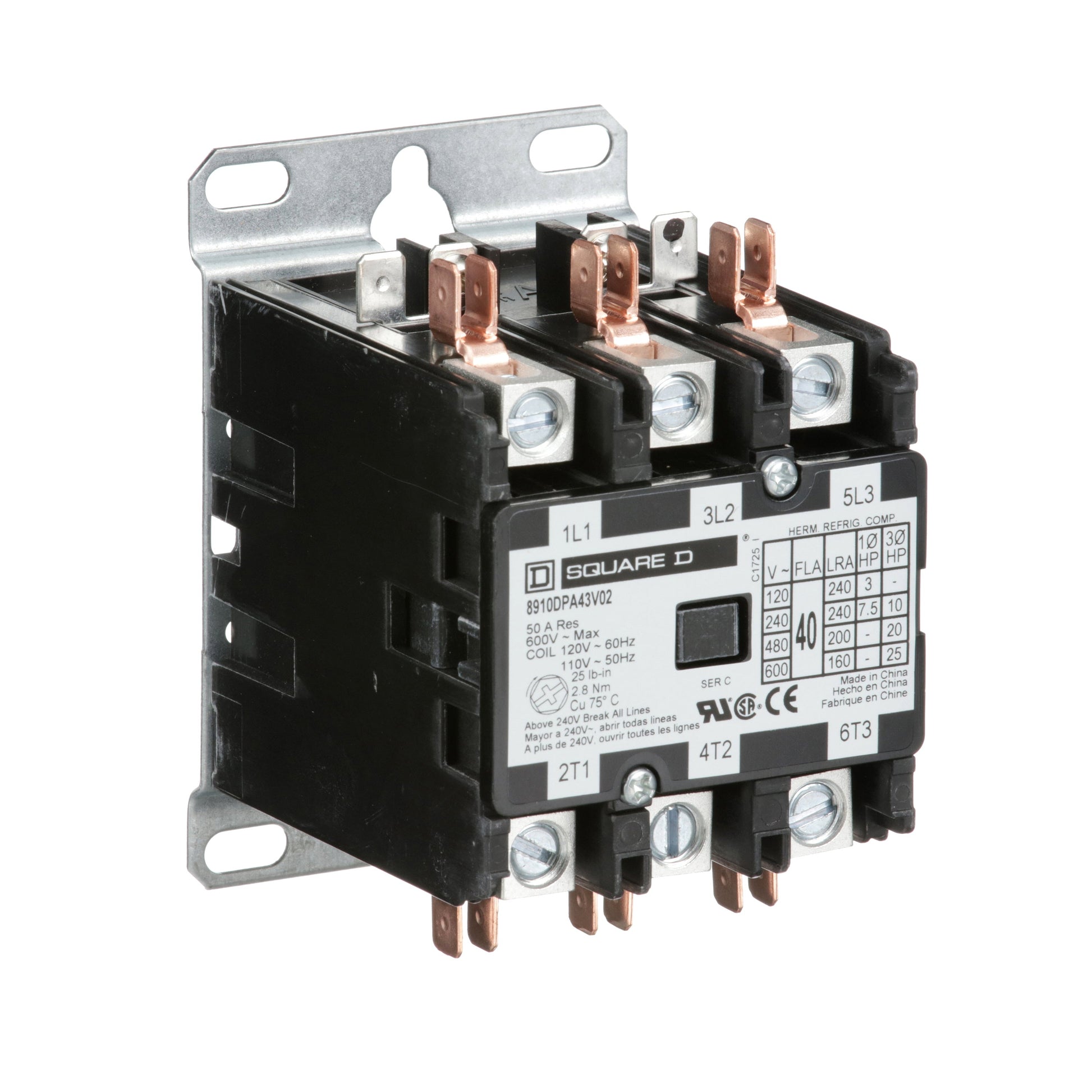

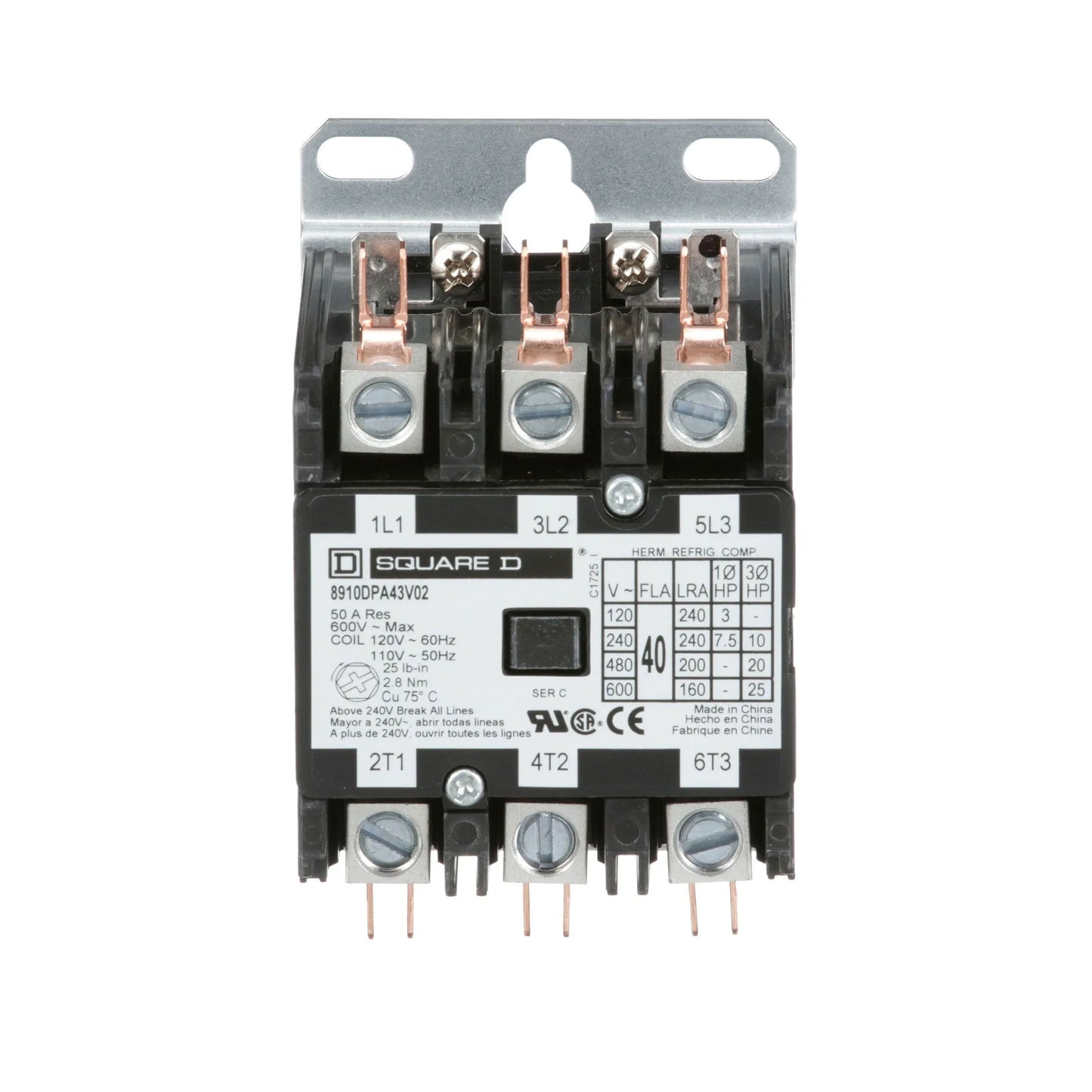

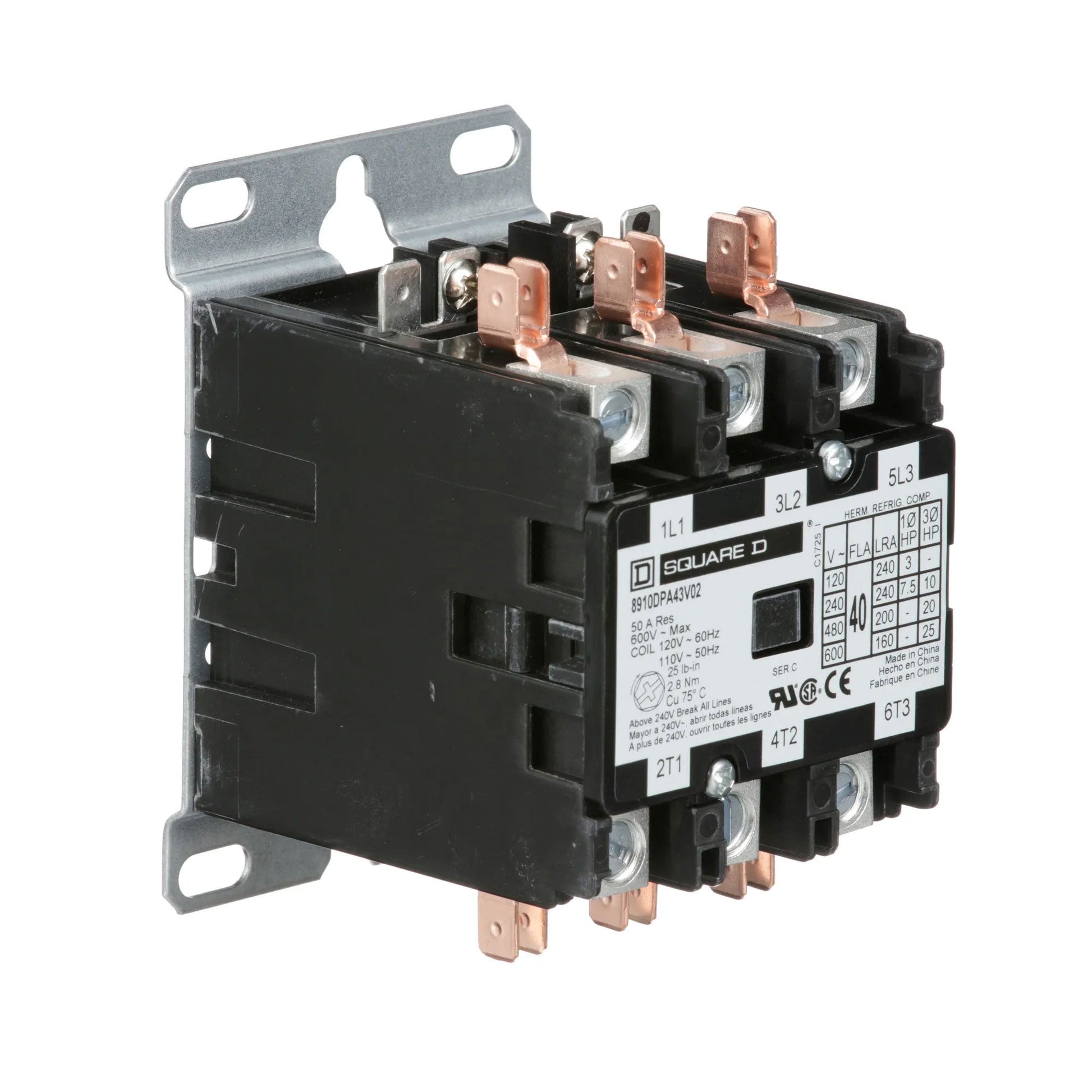

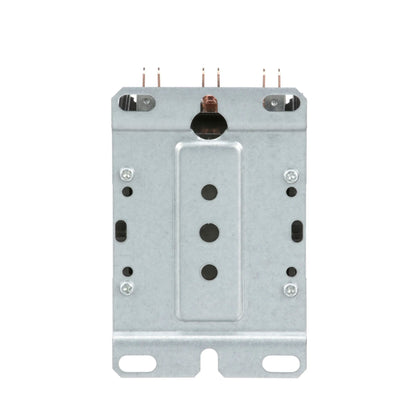

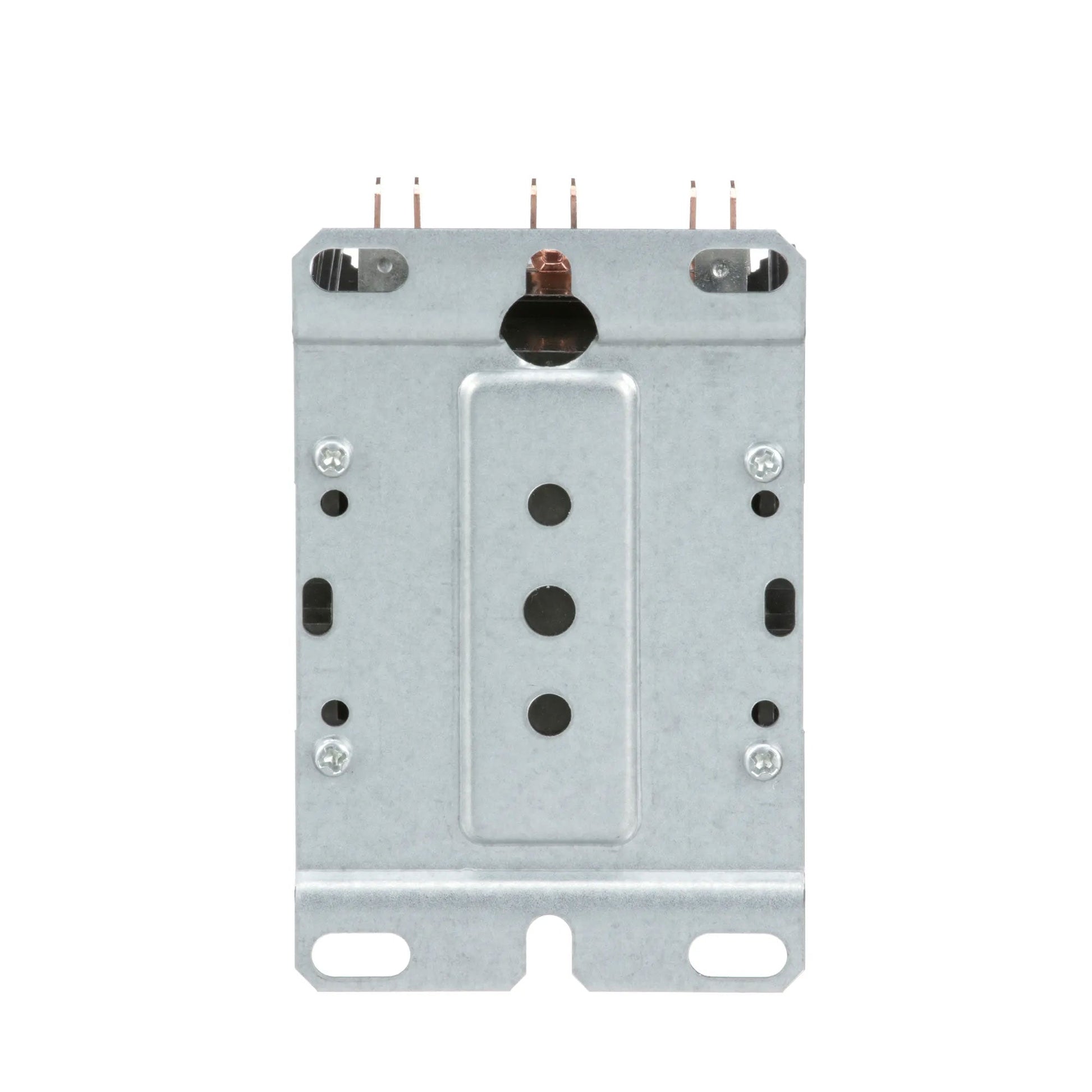

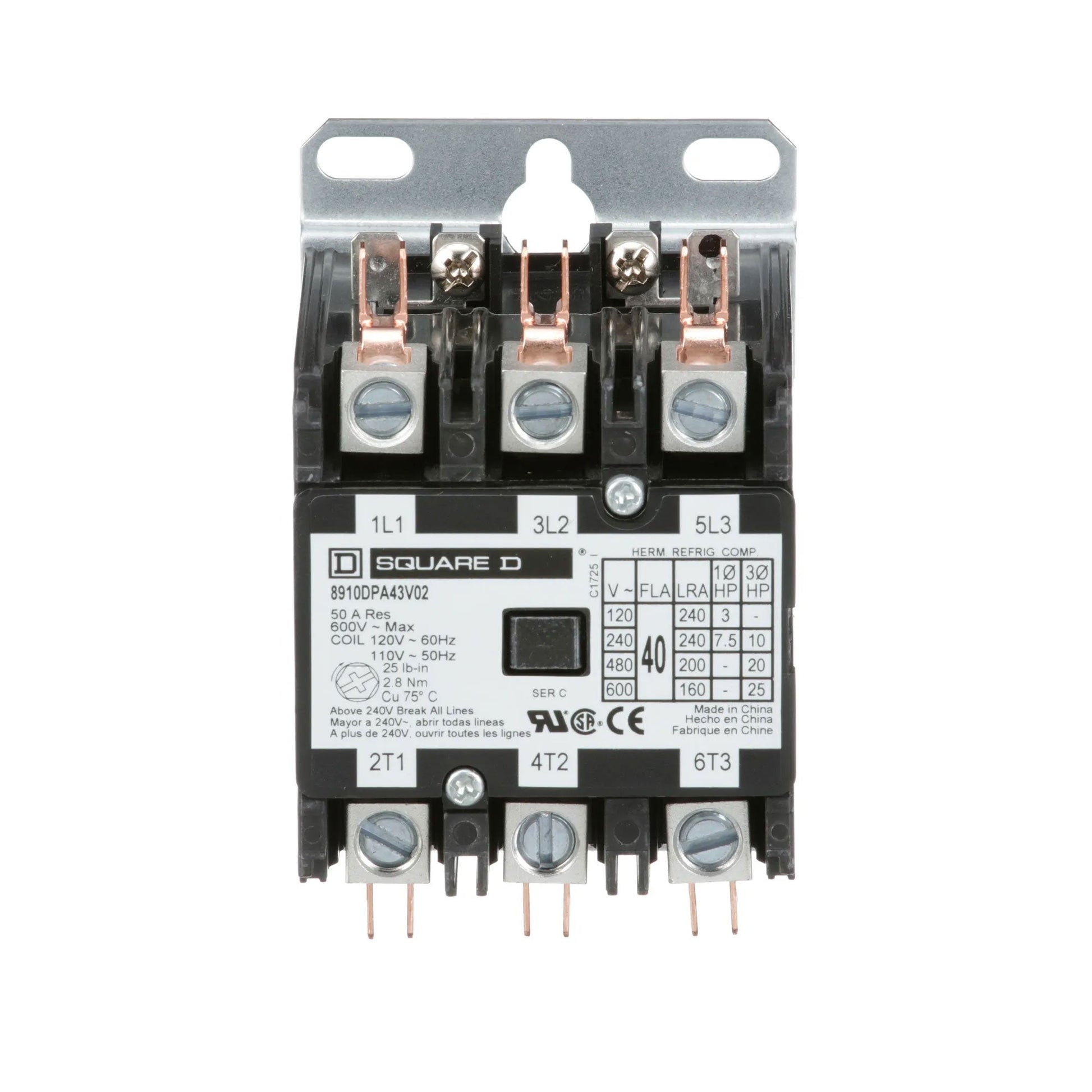

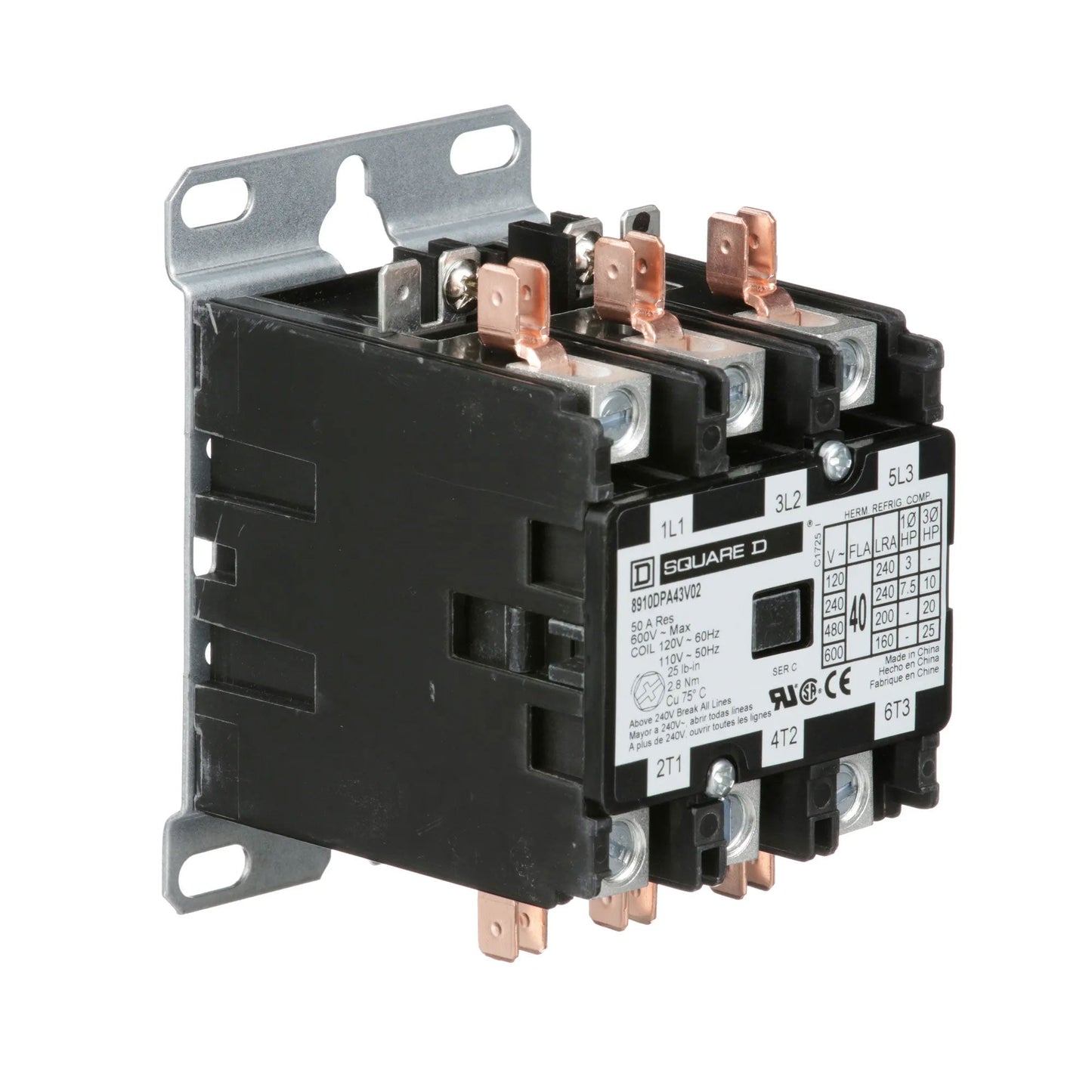

Square D 8910DPA43V02 Contactor | 3P 3Ph 600V 40A 110V Coil Class 8910

Product Description:
The Square D 8910DPA43V02 is a Class 8910 definite purpose contactor designed for robust motor control applications. It operates at 600V and 40A, supporting 3-phase systems with a 3-pole configuration. This unit is versatile, handling various horsepower ratings including 10 hp at 230V AC 3-phase and 25 hp at 575V AC 3-phase. It comes equipped with a 110V AC coil for reliable performance.

Key Features:
✔ Part Number: 8910DPA43V02
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-20 hp 460 V AC, 3 phases-25 hp 575 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 120V
✔ Full Load Amps: Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
✔ Coil Voltage Minimum: 110V
✔ Frequency: 50/60 Hz
✔ UPC: 785901073444
✔ GTIN: 00785901073444
✔ Country of Origin: China

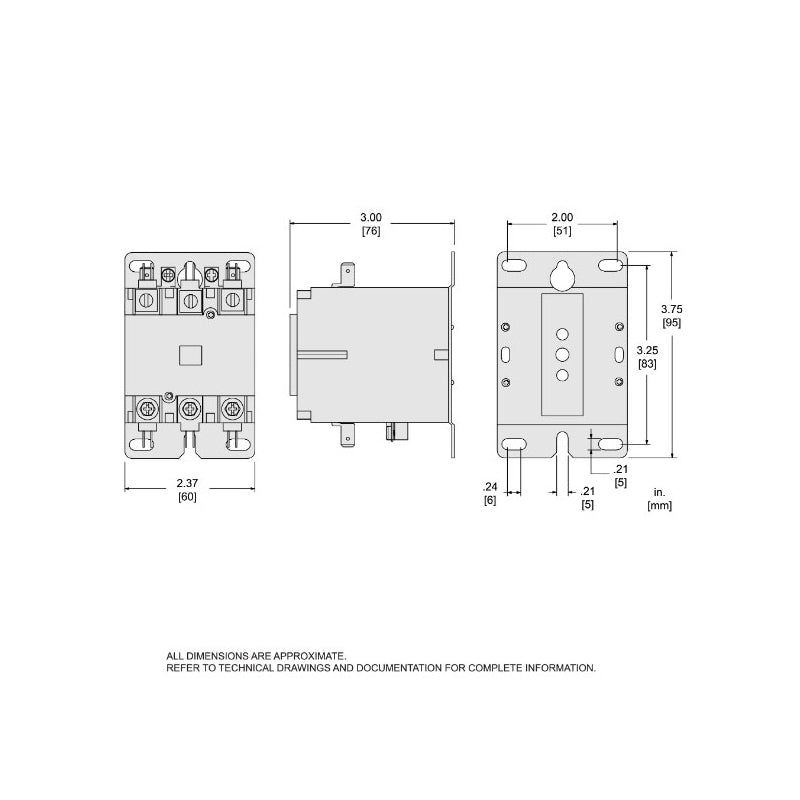

✔ Dimensions: 2.5 in x 4 in
✔ Weight: 1
✔ Certification: CSA, RoHS, UL Listed
