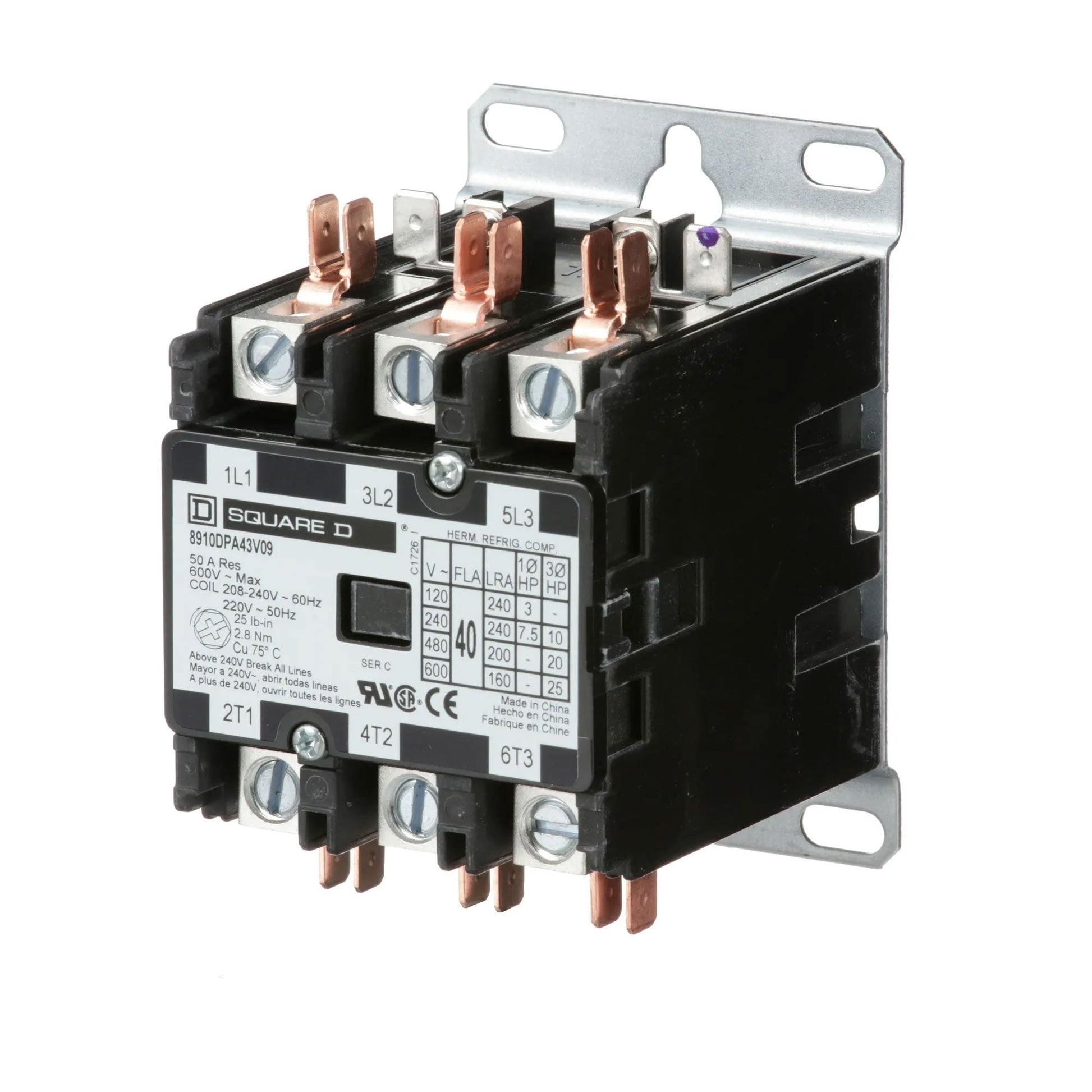

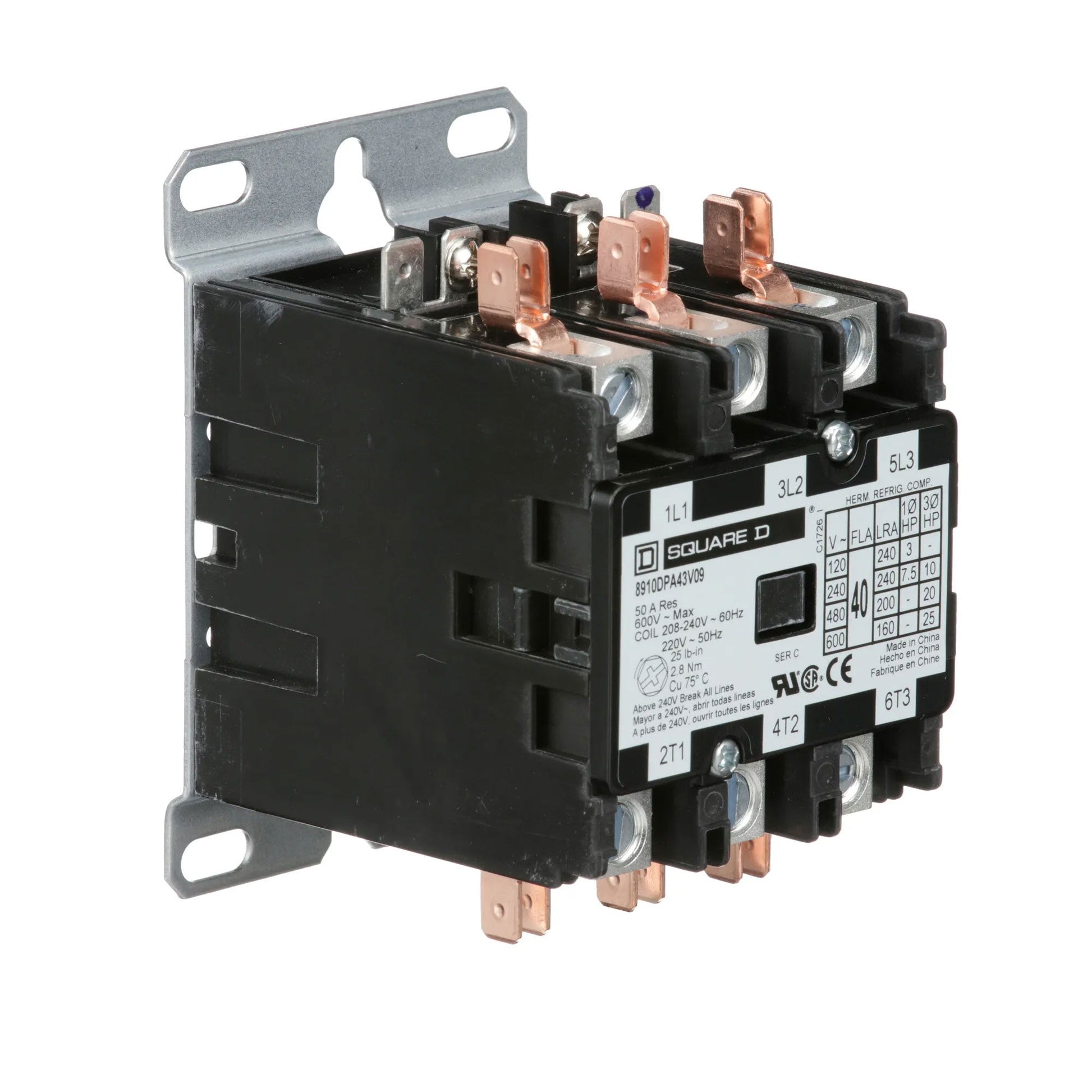

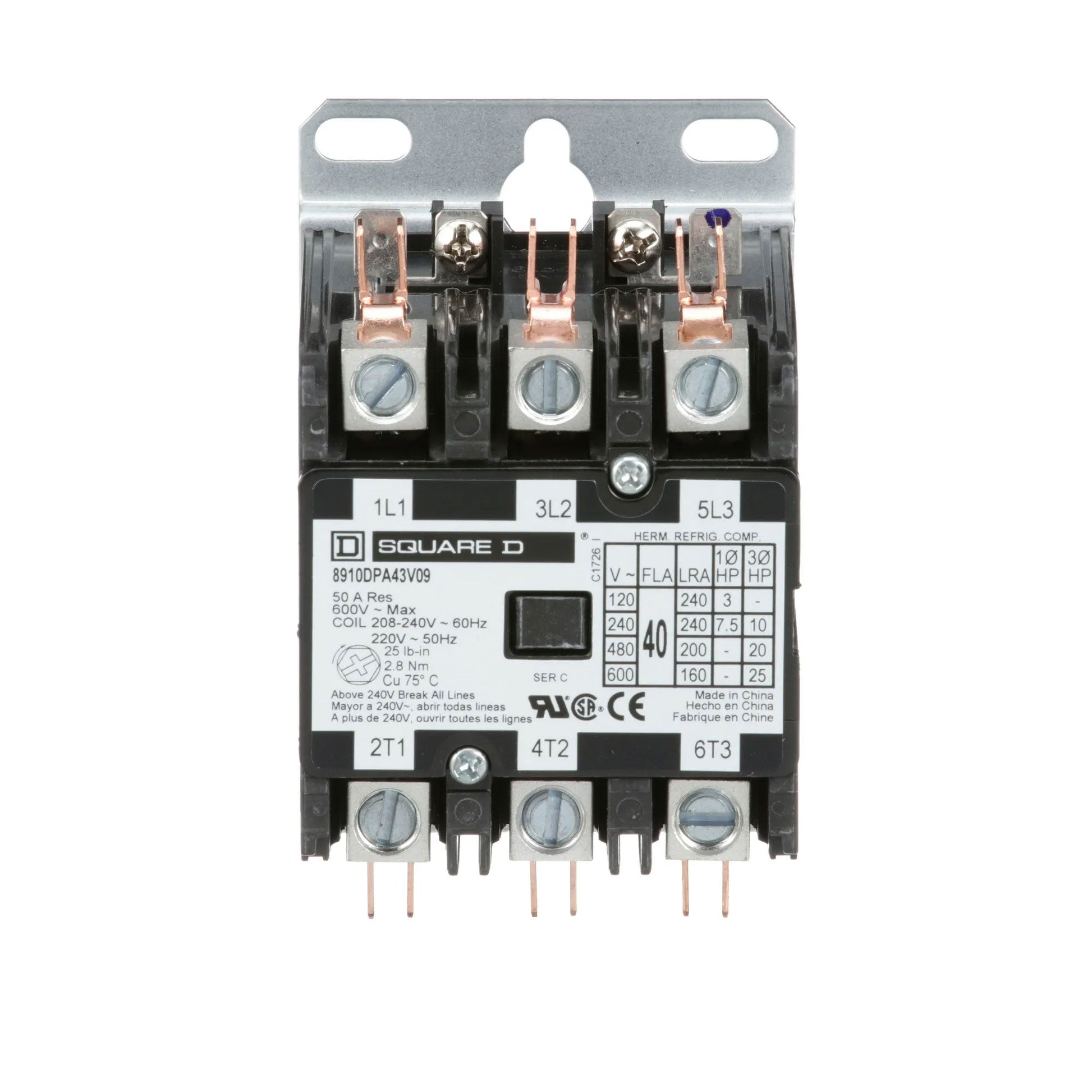

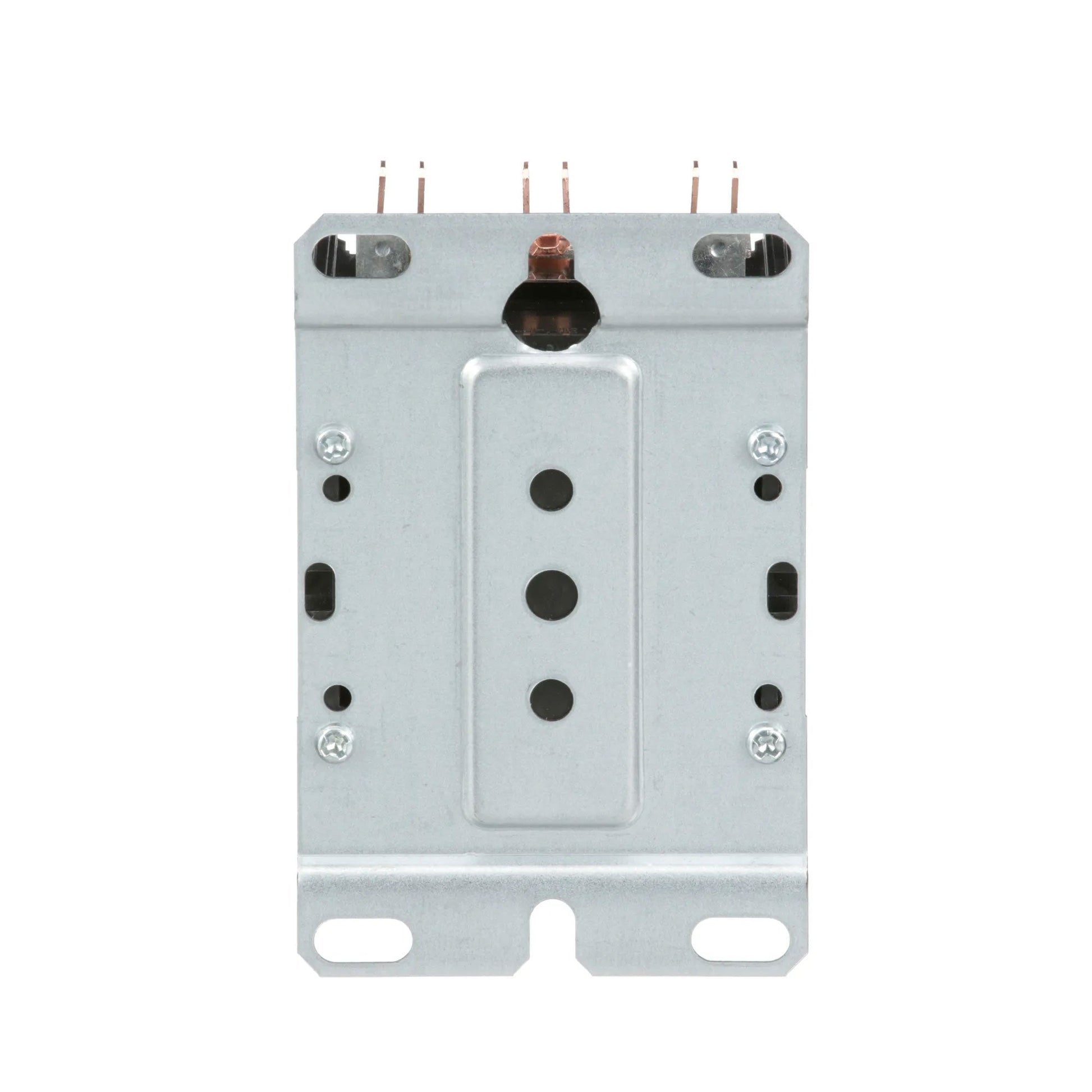

Square D 8910DPA43V09 Contactor 3P 3P 600V 40A 220V Class 8910
Square D 8910DPA43V09 Contactor 3P 3P 600V 40A 220V Class 8910
Price:
Sale
Sold out
Regular price
$79.78 USD
Regular price
$112.12 USD
Sale price
$79.78 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D 8910DPA43V09 is a Class 8910 3-pole contactor designed for 600V and 40A applications. It supports a range of horsepower ratings across different voltages and phases, including 3 hp at 115V AC single-phase and up to 25 hp at 575V AC three-phase. This starter is equipped with a 220V coil and three normally open auxiliary contacts for versatile motor control.
Key Features:
✔ Part Number: 8910DPA43V09
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-20 hp 460 V AC, 3 phases-25 hp 575 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 220V
✔ Full Load Amps: Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
✔ Coil Voltage Minimum: 220V
✔ Frequency: 50 Hz
✔ UPC: 785901073437
✔ GTIN: 00785901073437
✔ Country of Origin: China

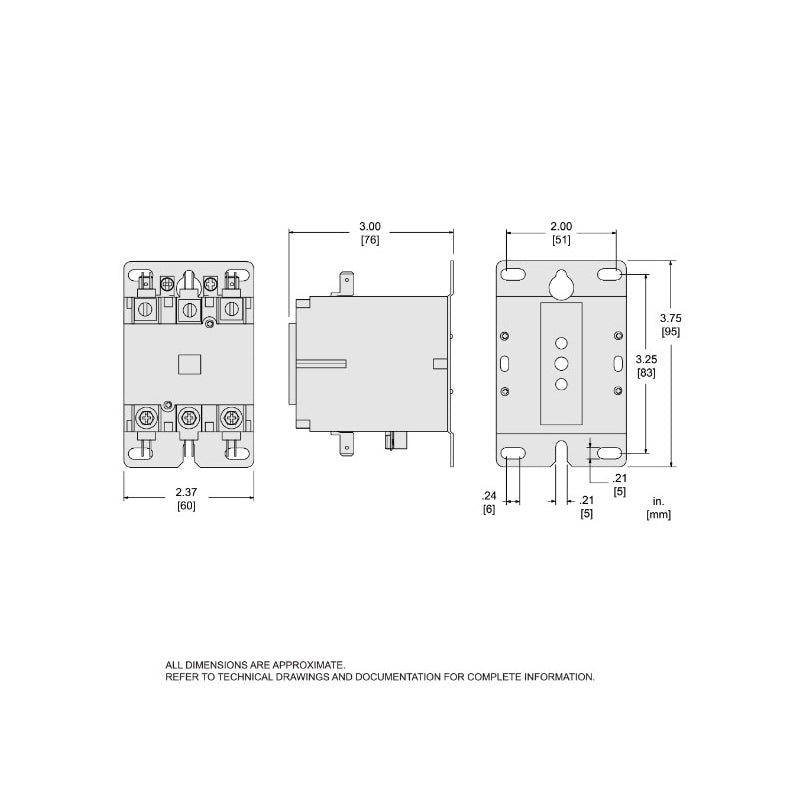

✔ Dimensions: 2.5 in x 4 in
✔ Weight: 1
✔ Certification: CSA, RoHS, UL Listed
The Square D 8910DPA43V09 is a Class 8910 3-pole contactor designed for 600V and 40A applications. It supports a range of horsepower ratings across different voltages and phases, including 3 hp at 115V AC single-phase and up to 25 hp at 575V AC three-phase. This starter is equipped with a 220V coil and three normally open auxiliary contacts for versatile motor control.
Key Features:
✔ Part Number: 8910DPA43V09
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-20 hp 460 V AC, 3 phases-25 hp 575 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 220V
✔ Full Load Amps: Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
✔ Coil Voltage Minimum: 220V
✔ Frequency: 50 Hz
✔ UPC: 785901073437
✔ GTIN: 00785901073437
✔ Country of Origin: China
✔ Dimensions: 2.5 in x 4 in
✔ Weight: 1
✔ Certification: CSA, RoHS, UL Listed
